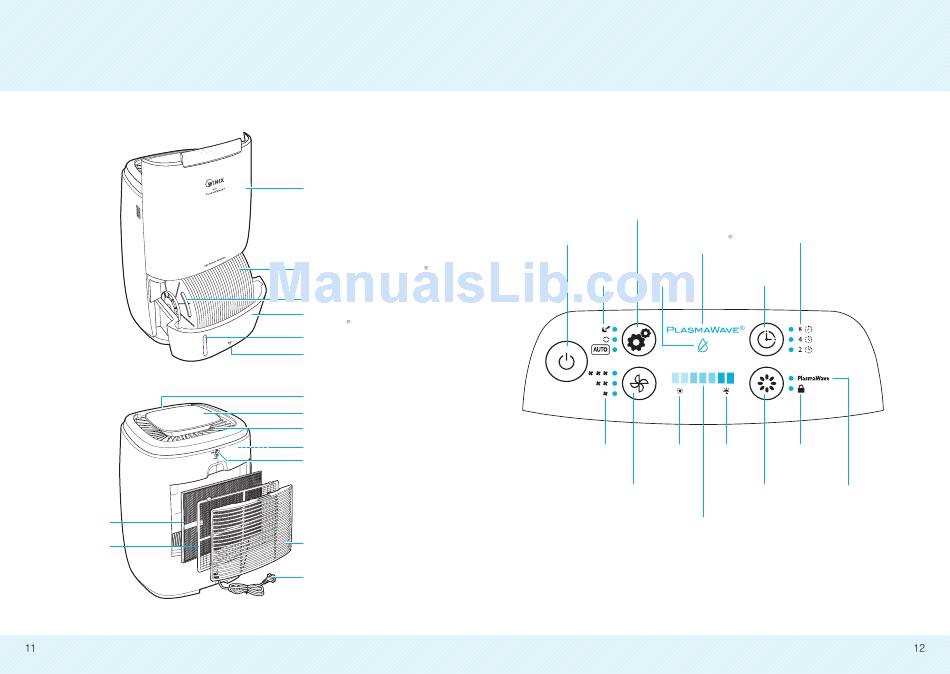

PRODUCT DIAGRAM

Combination Filter
Pre-Filter
Front Panel
Antibacterial Disk (CleanCel )
Antibacterial Disk Handle
Antibacterial Water Tank
(CleanCel )
Water Level Indicator
Water Tank Release Lever
Control Panel Display
Air Outlet Cover
Air Outlet
Fan (Inside)
Air Outlet Release Button
Rear Air Intake Grille Cover
Power Plug

CONTROL PANEL

Function Button
1. Continuous Mode : Unit operates continuously based on the fan speed
selected by user regardless of ambient humidity. (Low/Medium/High)
2. Sleep Mode : Dims control panel lights and sets the unit to operate at
lowest fan speed.
3. Auto-Mode : Unit runs until ideal humidity level is reached and shuts off
intermittently to save energy (Green "Comfort Zone").
Power
PlasmaWave
(ON/OFF Indicator)
Mode Low Water
Indicator Indicator
Fan Speed Low
Humidity
Indicator
Indicator
Fan Speed Button
(Low, Medium, High)
Humidity Level Indicator
Displays humidity level, when desirable level of humidity
levels are reached they will be displayed in the green "Comfort Zone"
Orange : Low Humidity (Below 30% RH)
Blue : High Humidity (61-70% RH)
Green : Ideal Humidity (40-60% RH)
Timer Indicator
Timer Setting
Button
High Control Panel
Humidity Lock Indicator
Indicator
PlasmaWave PlasmaWave
(ON/OFF) Button (ON/OFF)Indicator
