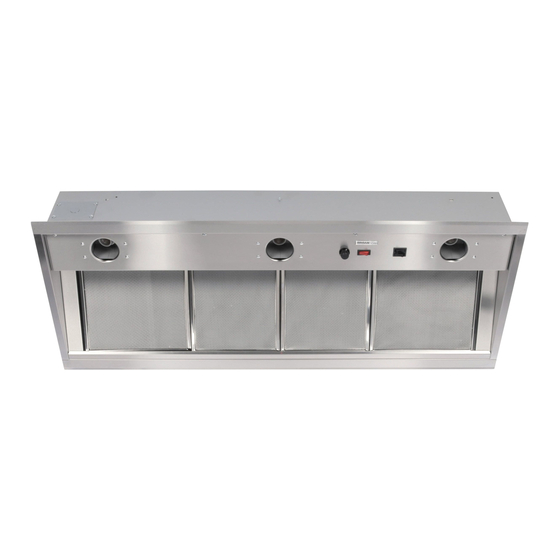

INSTALLATION INSTRUCTIONS
MODELS RMIP33
RMIP45
AND
INTENDED FOR DOMESTIC COOKING ONLY
INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.
HOMEOWNER: USE AND CARE INFORMATION ON PAGES 11, 12 AND 13.
V05861 rev. D
READ AND SAVE THESE INSTRUCTIONS
::rangehoods.com
kitchen::
Broan at
is a division of
accessories
U
N
L
I
M
I
T
E
D
Advertisement
Table of Contents
Related Manuals for Broan RMIP33
Summary of Contents for Broan RMIP33
- Page 1 Call 1-800-667-8721 anywhere in the US and Canada www.rangehoods.com INSTALLATION INSTRUCTIONS MODELS RMIP33 RMIP45 INTENDED FOR DOMESTIC COOKING ONLY INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER. HOMEOWNER: USE AND CARE INFORMATION ON PAGES 11, 12 AND 13. V05861 rev. D READ AND SAVE THESE INSTRUCTIONS ::rangehoods.com...
- Page 2 To reduce the risk of fire and electrical shock, the Rangemaster Models RMIP33 and RMIP45 must be installed with blower models P5, P8, 331H, 332H, 335 or 336 only. Other blowers cannot be substituted.
- Page 3 Call 1-800-667-8721 anywhere in the US and Canada www.rangehoods.com RMIP33 RMIP45 INSERT SYSTEM Model 335 (1200 cfm) Model 647 Model 634 or 644 Model 643 or 336 (1500 cfm) (7” Rd wall cap) (roof cap) (8” Rd wall cap)
-
Page 4: Select Blower Option And Install Ductwork
1. SELECT BLOWER OPTION AND INSTALL DUCTWORK Either an interior or exterior blower may be used with this insert. The insert model RMIP33 or RMIP45 must be installed with blower models P5, P8, 331H, 332H, 335 or 336 only. Other blowers cannot be substituted. -
Page 5: Install Backsplash (Optional)
11 9/16” up from the insert base. The on center distance between the 2 studs is 30 1/4” for the RMIP33 insert model and 42 1/4” for the RMIP45 insert model. The mounting holes for the rear stud support are located 1 1/2”... - Page 6 To install, see instructions packed with the custom hood liner. LINER MODEL INSERT MODEL CUSTOM HOOD NOMINAL WIDTH RML3336 RMIP33 36’’ RML3342 RMIP33 42’’ RML4548 RMIP45 48’’...
- Page 7 Using two (2) #6 x 1/2’’ screws provided with insert, secure the adapter to the top of the rough-in plate. Remove tape from damper flap. Seal the adapter to the rough-in plate by using duct tape. ::rangehoods.com kitchen:: Broan at is a division of accessories...
- Page 8 (4) lock nuts. 15. INSTALL THE TRANSITION (INTERIOR BLOWER) Slide the transition over the adapter/damper. Seal the transition to the adapter/damper by using duct tape. ::rangehoods.com kitchen:: Broan at is a division of accessories...
- Page 9 The blower must be installed to the rough-in plate using (6) #8 x 3/8” screws for the single blower unit and (8) #8 x 3/8” screws for the dual blower unit. Remove the cover from the blower assembly. Remove the impeller(s) by pulling them out gently (see pictures below). ::rangehoods.com kitchen:: Broan at is a division of accessories...
- Page 10 Never plug the 2-prong blower cord to the 3-prong power supply cord. Plug the power supply to the 3-prong male connector (A) and the blower unit into the 2-prong female receptacle (B) inside the insert. HE0022 ::rangehoods.com kitchen:: Broan at is a division of accessories...
-
Page 11: Light Bulbs
To install them, refer to instruction sheet included with baffle filter kit. KIT # INSERT MODEL RBFIP33 RMIP33 RBFIP45 RMIP45 BAFFLE FILTER (TYPICAL) 21. USE AND CARE Grease filters and impeller(s). -
Page 12: Operation
When the temperature level drops to normal, the blower will return to its original setting. Test all insert switches. If a RMIPWC remote control is installed, test all its switches. Finalize the custom hood. ::rangehoods.com kitchen:: Broan at is a division of accessories... -
Page 13: Wiring Diagram
Grounding plate TERMINAL BLOCK LIGHT SOCKET RIGHT NOTE 1 NOTES 1. Light socket not included in RMIP33 model. WIRING COLOR CODE 2. If any of the original wire, as BLACK PURPLE supplied, must be replaced, use the BLUE same equivalent wire. -
Page 14: Warranty
BROAN-NUTONE LLC ONE-YEAR LIMITED WARRANTY Broan-NuTone LLC warrants to the original consumer purchaser of its products that such products will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
