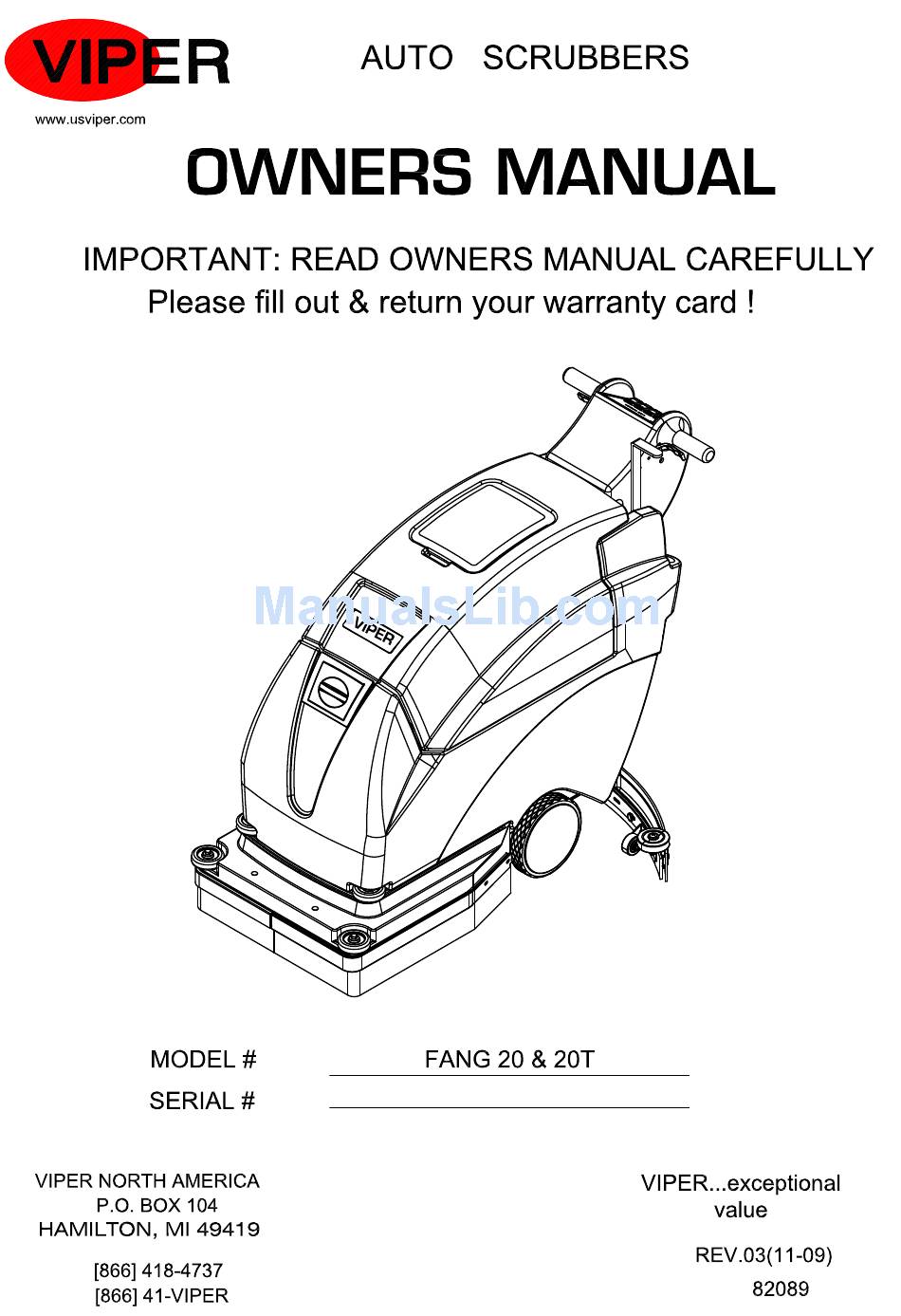

Viper FANG 20 Owner's Manual
  1. Manuals
  2. Brands
  3. Viper Manuals
  4. Scrubber
  5. FANG 20
  6. Owner's manual

Viper FANG 20 Owner's Manual

Auto
Hide thumbs Also See for FANG 20:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for Viper FANG 20

Summary of Contents for Viper FANG 20

  • Page 2: Table Of Contents

    CONGRATULATIONS on your purchase of a Viper product, and welcome to the V.I.P. family. We appreciate your business and will do every-thing in our power to keep you happy with your purchase for many years to come. As part of the V.I.P. family, you are entitled to the best protection by one of the most comprehensive warranties in the industry.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS WHEN SERVICING MACHINE: (con’t) x Disconnect batteries prior to working This machine is intended for commercial use. It is on machine. constructed for use in an indoor environment and x Wear gloves when handling batteries or is not intended for any other use. Use only with battery cables.

  • Page 4: Machine Components

    MACHINE COMPONENTS 7. Squeegee assembly 8. Brush lift foot pedal 9. Solution tank level sight tube 10. Console adjustment levers 11. Rear solution fill 12. Circuit breakers 13. Squeegee lift lever 14. Control housing 15. Solution tank 16. Transport wheels 17.

  • Page 5: Machine Set Up

    MACHINE SET UP MACHINE SET UP &INSTALLATION PRE-OPERATION CHECKS 1. Sweep or dust mop the surface to be cleaned. UNCRATING MACHINE 2. Check battery meter to make sure batteries are Be sure and check packing carton for any damage. fully charged. (see BATTERY CHARGING) Immediately report any damage to carrier.

  • Page 6: Machine Operation

    Solution will not begin to flow until the FILLING THE SOLUTION TANK operating triggers are pulled. 1. The Fang 20 / 20T can be filled in two 8. The Fang 20T is self-propelled.The speed can different locations: be controlled by a dial located on the right side a.

  • Page 7: Tank Draining

    4. If the squeegee assembly leaves streaks on the Be careful not to spray water into the float floor, raise the squeegee off the floor and wipe shut-off mechanism. the blades down with a damp cloth. : If you are storing the machine for any period : Do not use your fingers to wipe or of time, always leave the clear recovery tank lid remove debris from the blades, as injury may...

  • Page 8: Preventative Maintenance

    1. Place charger and machine in a well ventilated area. : Before performing any maintenance on 2. Turn machine off. the machine, be sure that the power is turned off, 3. Open recovery tank up, exposing battery or the batteries are disconnected! compartment 4.

  • Page 9: Machine Storage

    VACUUM MOTOR MAINTENANCE 6. If storing in an area which may reach freezing 1. Contact your local Viper Distributor for any temperatures, be sure to drain all fluids from motor maintenance. the machine prior to storage. Any damage 2.

  • Page 10: Basic Troubleshooting

    Tighten loose cable(s) Batteries not connected properly Follow battery installation instructions Brush motor does Bad brush switch Contact Viper Distributor not run Brush circuit breaker has tripped Check brush motor for obstructions and reset breaker Rectifier has burned out Contact Viper Distributor...
  • Page 12 FANG20 - CONTROL HOUSING PART DESCRIPTION NUMBER REQ'D BUSHING VF81713 VF14122 WASHER,PLAIN,M10XM20X2 SCREW,M10X65 VF14121 NUT,LOCK,M6 VF13502 WASHER,PLAIN,M6 GT13032 DIODE,400V VF81781 SOLENOID,24V VF81726A BREAKER,CIRCUIT,35 AMP VF81734 LABEL,CIRCUIT BREAKER VF83149 HOUSING,CONTROL VF82108 SCREW,M3X10 VF14078 WASHER,PLAIN,M3XM10X1 VA50477 LIGHTS,BATTERY CAPACITY VF81718 SCREW,M6X16 VF13495 GASKET VF82313 SPACER VF81719...
  • Page 14 FANG 20 & 20T - RECOVERY TANK ASSEMBLY PART DESCRIPTION NUMBER REQ'D VF82010 CLEAR COVER, RECOVERY TANK VF82083 DECAL, BATTERY WARNING VF82009 ELBOW ADAPTOR, FLOAT VV13607 WASHER, LOCK, M6 VF13533 WASHER, PLAIN, M6 X M16 X 2 VF14233 SCREW, M6 X 20...
  • Page 16 FANG 20T - CONTROL HOUSING PART DESCRIPTION NUMBER REQ'D VF81713 BUSHING VF13491 SCREW, M4 X 12 VF14122 WASHER, PLAIN, M10 X M20 X 2 VF14121 SCREW, M10 X 65 VF13502 NUT, LOCK, M6 GT13032 WASHER, PLAIN, M6 VF81781 DIODE, 400V VF81726A VF81726A SOLENOID 24V...
  • Page 18 FANG20 & 20T - SOLUTION TANK ASSEMBLY PART DESCRIPTION NUMBER REQ'D VF81405BD GRIP, HANDLE VA13477 SCREW, SELF-TAPPING, ST, M4 X 16 VV13664 WASHER, PLAIN, M4 X M12 X 1 VF81507 STRAP, PLUG, REAR FILL VV13604 SCREW, M8 X 20 VF13519 WASHER, LOCK, M8 VF81509 PLUG, EXPANSION...
  • Page 19 FANG20 & 20T - SOLUTION TANK ASSEMBLY PART DESCRIPTION NUMBER REQ'D VF81416 HOSE BARB VF82161 CLAMP (16-25) VF82061 TUBING VF82306A KIT, LABEL, MARKERS VF14230 SCREW, M5 X 15 VV13601 WASHER, LOCK, M5 VF13532 WASHER, PLAIN, M5 X M11 X 2 VF81202 PLATE, SQUEEGEE, LOCK VF14235...
  • Page 21 FANG 20 & 20T - SQUEEGEE ASSEMBLY PART DESCRIPTION NUMBER REQ'D VF14247 SCREW, M12 X 25 VF13538 WASHER, PLAIN, M12 X M26 X 2 VF82016A BUSHING VF82130 MOUNT, PIVOT (FANG20) VF82330 MOUNT, PIVOT (FANG20T) VF13541 WASHER, LOCK, M12 VF82049 CABLE, SQUEEGEE LIFT...
  • Page 23 FANG20 - BRUSH LIFT / WHEEL AXLE ASSEMBLY PART DESCRIPTION NUMBER REQ'D VF14075 BEARING, #6004 VF82005 WHEEL, 8" VF82101 BUSHING VF82210 SHAFT VF13535 WASHER, PLAIN, M8 X M20 X 2 VF13519 WASHER, LOCK, M8 VA13491 SCREW, M8 X 25 VF82113 BUSHING VF82080 HUB, CAP...
  • Page 25 FANG20 & 20T - SOLUTION CONTROL ASSEMBLY PART DESCRIPTION NUMBER REQ'D VF14245 SCREW, M5 X 6 VF82036 SHAFT VV13650 SCREW, M4 X 10 VF13532 WASHER, PLAIN, M5 VV13601 WASHER, LOCK, M5 VF14230 VF14230 SCREW M5 X 15 SCREW, M5 X 15 VF13536 WASHER, PLAIN, M9.8 X M16 X 1 VF82075...
  • Page 27 FANG 20T - BRUSH LIFT/DRIVE ASSEMBLY PART DESCRIPTION NUMBER REQ'D VF82080 HUB CAP VF82006 WHEEL, 8" (Serial#1000 - 1499) VF82208 WHEEL, 8" (Serial#1500+) VF82205 SPACER VF82004 TRANSAXLE, 20"(Serial#1000 - 1499) VF82200 TRANSAXLE, 20" (Serial#1500+) ZD72000A MOTOR,TRANSAXLE,24VDC (Serial#1500+) VF82207 KEY, 5 X 25 (Serial#1500+) VF82204 BRACKET,TRANSAXLE MOUNT VF13535...
  • Page 29 FANG 20 & FANG 20T - BRUSH SKIRT ASSEMBLY PART DESCRIPTION NUMBER REQ'D VF82014 BUMPER VA13491 SCREW, M8 X 25 VF13519 WASHER, LOCK, M8 VF13535 WASHER, PLAIN, M8 X M20 X 2 VF13514A WASHER, PLAIN,M8 X M16.5 X 1 VF82013 VF82013 WHEEL 3"...
  • Page 31 FANG20 & 20T - BRUSH / PAD DRIVE ASSEMBLY PART DESCRIPTION NUMBER REQ'D ZD45000 BRUSH MOTOR, 24VDC, .75HP ZD45407 KEY, 6.35 X 25 VF13545 SCREW, SELF-TAPPING,ST, M5 X 10 VV13601 WASHER, LOCK, M5 VF83131 CLAMP, BRUSH PLATE VF83132 SPRING VF83130 PLATE, DRIVE VF82058 WASHER...
