Unitech MS837 Quick Start Manual

MS837

Quick Start Guide

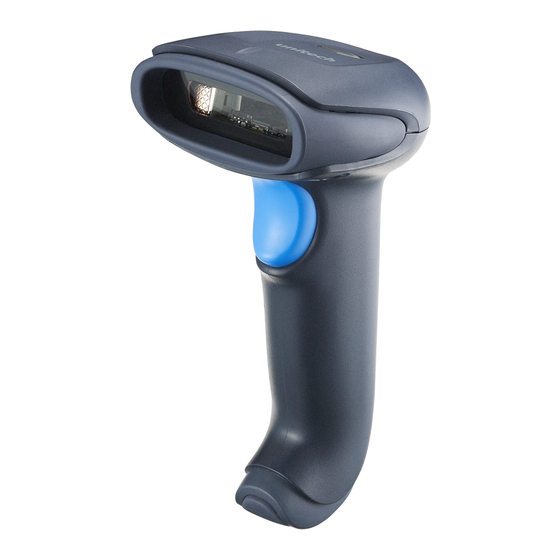

The Unitech MS837 Laser Scanner
Installation Instructions and Popular Configuration Settings
Connecting USB cable to a host
Plug the interface cable into a free USB port of a host computer. The
MS837 is now ready to use.
Trigger Mode
Trigger Mode *
(Default scanning mode)
Scan here to switch back to Trigger Mode. In Trigger Mode, the MS837
will scan only when the scanner button is pressed.
SETUP AND INSTALLATION
The following steps will walk you through the installation process.
Test & Finish
Open a word processing program such as Microsoft Word or Notepad
on your host. Now scan the following barcode:
If the word "Unitech" appears on the screen you have succesfully
installed your scanner. Congratulations!
Tab Mode
1
2
You may wish to set your scanner to "Tab Mode." In this mode, data will
tab over to the next column as you scan instead of jumping to the next
line. Scan the top barcode and then the bottom barcode to switch to
Tab Mode from the default Enter Mode.
Connecting and disconnecting the interface cable
An audible "click" sound indicates the interface cable has been plugged in correctly and the connector lock is engaged. To unplug the interface cable,
release the connector lock by inserting one end of a paperclip into the handle.
SETTINGS AND CONFIGURATION
The following section covers the most common configuration
settings for your MS837 scanner.
For additional configuration options please
unitechscanners.com/MS837 and select the "Download" tab.
You will find the User's Manual and a variety of other resources.
Enter Mode
Scan here to return to Enter Mode.
Flash Mode
visit
1
2
Continuous Automatic
Scanning
Scan this set of barcodes to switch to Flash Mode from the default
Trigger Mode. In Flash mode, the MS837 will function automatically. It
will scan at a set interval.
Default Settings
This barcode will return your scanner to its original factory
settings, a useful feature for troubleshooting purposes.
