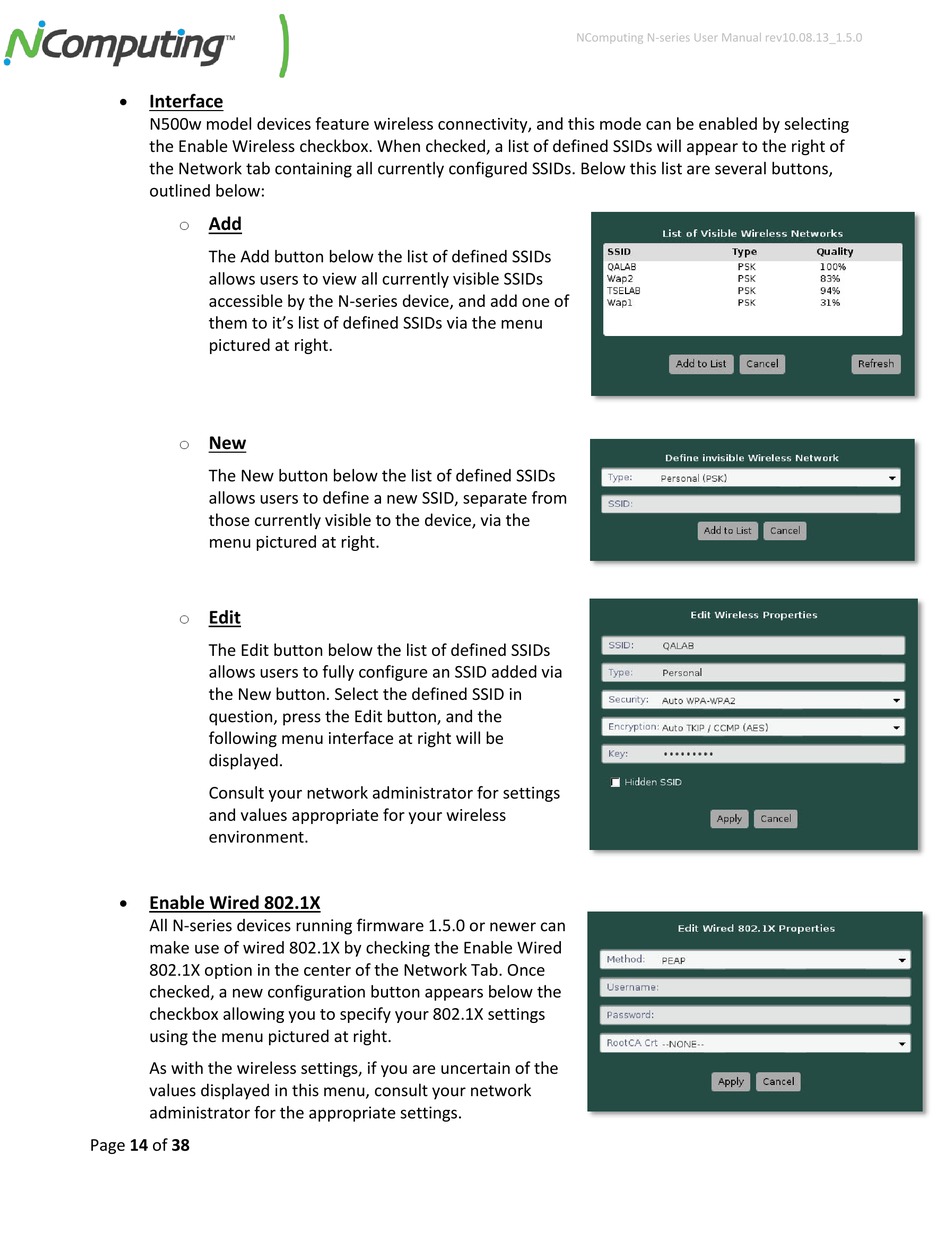

Interface
N500w model devices feature wireless connectivity, and this mode can be enabled by selecting
the Enable Wireless checkbox. When checked, a list of defined SSIDs will appear to the right of
the Network tab containing all currently configured SSIDs. Below this list are several buttons,
outlined below:
o Add
The Add button below the list of defined SSIDs
allows users to view all currently visible SSIDs
accessible by the N-series device, and add one of
them to it's list of defined SSIDs via the menu
pictured at right.
o New
The New button below the list of defined SSIDs
allows users to define a new SSID, separate from
those currently visible to the device, via the
menu pictured at right.
o
Edit
The Edit button below the list of defined SSIDs
allows users to fully configure an SSID added via
the New button. Select the defined SSID in
question, press the Edit button, and the
following menu interface at right will be
displayed.
Consult your network administrator for settings
and values appropriate for your wireless
environment.

Enable Wired 802.1X
All N-series devices running firmware 1.5.0 or newer can
make use of wired 802.1X by checking the Enable Wired
802.1X option in the center of the Network Tab. Once
checked, a new configuration button appears below the
checkbox allowing you to specify your 802.1X settings
using the menu pictured at right.
As with the wireless settings, if you are uncertain of the
values displayed in this menu, consult your network
administrator for the appropriate settings.
