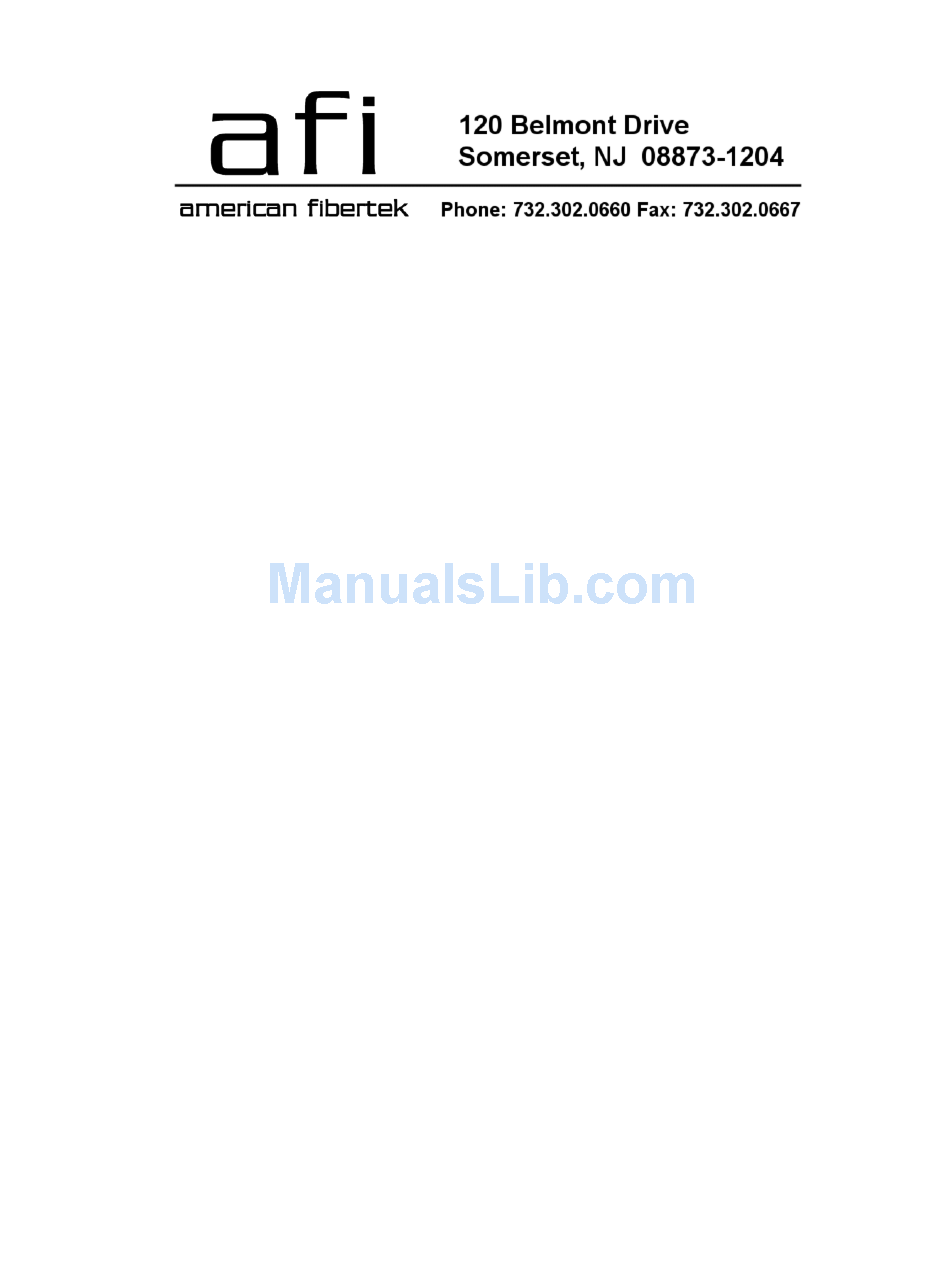

10-Port Gigabit Managed Switch
SM10p
Installation and Getting Started Guide
1


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM10p and is the answer not in the manual?

Questions and answers

Related Manuals for AFi SM10p

Summary of Contents for AFi SM10p

  • Page 1 10-Port Gigabit Managed Switch SM10p Installation and Getting Started Guide  ...
  • Page 2 INSTALLATION and GETTING STARTE GUIDE SM10P Gigabit Managed Switch Installation and Getting Started Guide  ...

  • Page 3: About This Guide

    ABOUT THIS GUIDE PURPOSE This guide gives specific information on how to operate and use the management functions of the switch. AUDIENCE The guide is intended for use by network administrators who are responsible for operating and maintaining network equipment; consequently, it assumes a basic working knowledge of general switch functions, the Internet Protocol (IP), and Simple Network Management Protocol (SNMP).
  • Page 4 This section summarizes the changes in each revision of this guide. Date Revision 2012/03/20  ...

  • Page 5: Table Of Contents

    Contents ABOUT THIS GUIDE......................ii INTRODUCTION........................1 OVERVIEW............................ 1 DESCRIPTION OF HARDWARE ...................4 NETWORK PLANNING ......................7 INTRODUCTION TO SWITCHING..................7 APPLICATION EXAMPLES ....................7 INSTALLING THE SWITCH..................10 SELECTING A SITE ......................... 10 ETHERNET CABLING ......................10 EQUIPMENT CHECKLIST ......................11 PACKAGE CONTENTS ......................11 MOUNTING ..........................11 INSTALLING AN OPTIONAL SFP TRANSCEIVER...........
  • Page 6 CABLES..........................29 TWISTED-PAIR CABLE AND PIN ASSIGNMENTS ..........29 STRAIGHT- THROUGH WIRING..................30 1000BASE-T PIN ASSIGNMENTS..................31 CABLE TESTING FOR EXISTING CATEGORY 5 CABLE ......... 31 FIBER STANDARDS........................ 32 SPECIFICATIONS ......................33 PHYSICAL CHARACTERISTICS ..................33 SWITCH FEATURES........................ 34 MANAGEMENT FEATURES ....................34 STANDARDS..........................

  • Page 7: Introduction

    INTRODUCTION OVERVIEW The SM10P Switch is an affordable managed switch that provides a reliable infrastructure for your business network. This switch delivers more intelligent features you need to improve the availability of your critical business applications, protect your sensitive information, and optimize your network bandwidth to deliver information and applications more effectively.

  • Page 8: Front Of The Switches

    Front of the Switches SM10P SM10P Back of the Switches SM10P  ...
  • Page 9 SWITCH The switch performs a wire-speed, non-blocking switching fabric. ARCHITECTURE This allows wire-speed transport of multiple packets at low latency on all ports simultaneously. The switch also features full-duplex capability on all ports, which effectively doubles the bandwidth of each connection. This switch uses store-and-forward technology to ensure maximum data integrity.

  • Page 10: Description Of Hardware

    SFP TRANSCEIVER SLOTS SM10P supports the Small Form Factor Pluggable (SFP) transceiver. The slots are shared with RJ-45 port 9 to 10. In the default configuration, if an SFP transceiver (purchased separately) is installed in a slot and has a valid link on the port, the associated RJ-45 port is disabled.
  • Page 11 PORT AND The SM10P switch includes a display panel for system and port indications that simplify installation network SYSTEM STATUS troubleshooting. The LEDs, which are located on the front panel LEDS for easy viewing. Details are shown below and described in the following tables.

  • Page 12: Network Planning

    A switch can be easily configured in any Ethernet, Fast Ethernet, or Gigabit Ethernet network to significantly increase bandwidth while using conventional cabling and network cards. APPLICATION The SM10P Switch implements 8 Gigabit Ethernet TP ports with EXAMPLES auto MDIX and 2 slots for the removable SFP module (SM10P)
  • Page 13 Figure 4: Network Connection between Remote Site and Central Site SM10P SM10P SM24p-PoE SM10P Figure 5: Peer-to-peer Network Connection SM10P  ...
  • Page 14 Figure 6: Office Network Connection SM24p-PoE SM10P SM10P  ...

  • Page 15: Installing The Switch

    Make sure the twisted-pair Ethernet cable is always routed ◆ away from power lines, radios, transmitters or any other electrical interference. Make sure that SM10P Switch is connected to a ◆ separate grounded power outlet that provides 100 to 240 VAC, 50 to 60 Hz.

  • Page 16: Equipment Checklist

    CHECKLIST you have received all the components. Then, before beginning the installation, be sure you have all other necessary installation equipment. PACKAGE  SM10P Management Switch CONTENTS  Four adhesive rubber feet  Mounting Accessory (for 19” Rack Shelf, Optional) ...
  • Page 17 Circuit Overloading: Be sure that the supply circuit to the  rack assembly is not overloaded. Grounding: Rack-mounted equipment should be properly  grounded. TO Rack-mount Devices: Step1. Attach the brackets to the device using the screws provided in the Mounting Accessory.

  • Page 18: Installing An Optional Sfp Transceiver

    DESKTOP OR SHELF MOUNTING: Step1. Attach the four adhesive rubber feet to the bottom of the first switch. Figure 11: Attaching the Adhesive Rubber Feet Step2. Set the device on a flat surface near an AC power source, making sure there are at least two inches of space on all sides for proper air flow.
  • Page 19 Figure 12: Inserting an SFP Transceiver into a Slot TO Install a SFP transceiver, do the following: Step1. Consider network and cabling requirements to select an appropriate SFP transceiver type. Step2. Insert the transceiver with the optical connector facing outward and the slot connector facing down.

  • Page 20: Connecting To A Power Source

    Step3. Slide the SFP transceiver into the slot until it clicks into place. SFP transceivers are not provided in the switch package. CONNECTING You can plug or remove power cord from AC power socket , TO A POWER switch the power on and off . SOURCE Figure 13: Inserting the Power Cord to AC Power Socket Step1.

  • Page 21: Wiring Map For Serial Cable

    Figure 14: Serial Port (RJ-45) Pin-Out 2 TXD 5 GND 3 RXD WIRING MAP FOR SERIAL CABLE Table 4: Serial Cable Wiring Switch’s 8-Pin Serial Port Null Modem PC’s 9-Pin DTE Port 2 RXD (receive data) 3 TXD (transmit data) ----------------- 3 TXD (transmit data) -----------------...

  • Page 22: Operation Of Web-Based Management

    The default username and password are both “admin”. For the first time to use, please enter the default username and password, then click the <Login> button. The login process now is completed. SM10P web user interface : SM10P  ...
  • Page 23 User Guide. Or you could access to the Switch and click the "help" under the web GUI and the switch will pop-up the simple help content to teach you how to set the parameters. SM10P web help function:  ...

  • Page 24: Making Network Connections

    MAKING NETWORK CONNECTIONS CONNECTING The switch is designed to be connected to 10, 100 or 1000Mbps network cards in PCs and servers, as well as NETWORK to other switches and hubs. It may also be connected to DEVICES remote devices using optional SFP transceivers. Each device requires an unshielded twisted-pair (UTP) TWISTED-PAIR cable with RJ-45 connectors at both ends.

  • Page 25: Troubleshooting

    Step2. If the device is a network card and the switch is in the wiring closet, attach the other end of the cable segment to a modular wall outlet that is connected to the wiring closet. (See the section “Network Wiring Connections.”) Otherwise, attach the other end to an available port on the switch.

  • Page 26: Fiber Optic Sfp Devices

    FIBER OPTIC An optional Gigabit SFP transceiver can be used for a backbone connection between switches, SFP DEVICES connecting to a high-speed server. Each single-mode fiber port requires 9/125 micron single-mode fiber optic cable with an LC connector at both ends. Each multimode fiber optic port requires 50/125 or 62.5/125 micron multimode fiber optic cabling with an LC connector at both ends.

  • Page 27: Connectivity Rules

    CONNECTIVITY RULES When adding hubs to your network, please note that because switches break up the path for connected devices into separate collision domains, you should not include the switch or connected cabling in your calculations for cascade length involving other devices.

  • Page 28: Mbps Fast Ethernet Collision Domain

    100 MBPS FAST ETHERNET COLLISION DOMAIN Table 9: Maximum Fast Ethernet Cable Lengths Cable Type Maximum Cable Length Connector Category 5, 5e or 6 100-ohm 100.m (328 ft) RJ-45 UTP or STP  ...

  • Page 29: Cable Labeling And Connection Records

    CABLE LABELING AND CONNECTION RECORDS When planning a network installation, it is essential to label the opposing ends of cables and to record where each cable is connected. This will allow user to easily locate inter-connected devices, isolate faults and change your topology without need for unnecessary time consumption.

  • Page 30: Troubleshooting

    100Mbps, at half or full duplex, the switch will automatically sense the link speed, but will default to a communication mode of half duplex. Because the SM10P Switch device behaves in this way (in compliance with the IEEE802.3 standard), if a device...
  • Page 31 Check the port A port on your Switch may not be operating as you expect  configuration. because it has been put into a “ blocking” state by Spanning Tree, GVRP (automatic VLANs), or LACP (automatic trunking). (Note that the normal operation of the Spanning Tree, GVRP, and LACP features may put the port in a blocking state.) Or, the port just may have been configured as disabled through software.

  • Page 32: Power And Cooling Problems

    POWER AND COOLING PROBLEMS Installation If the power indicator does not turn on when the power cord is plugged in, you may have a problem with the power outlet, power cord, or internal power supply. However, if the unit powers off after running for a while, check for loose power connections, power losses or surges at the power outlet.

  • Page 33: Cables

    CABLES TWISTED-PAIR For 10/100BASE-TX connections, the twisted-pair cable must have two pairs of wires. For 1000BASE-T connections the CABLE AND PIN twisted-pair cable must have four pairs of wires. Each wire pair is ASSIGNMENTS identified by two different colors. For example, one wire might be green and the other, green with white stripes.

  • Page 34: Straight- Through Wiring

    4, 5, 7, 8 Not used Not used The “+” and “-” signs represent the polarity of the wires that make up each wire pair. STRAIGHT- If the twisted-pair cable is to join two ports and only one of the ports has an internal crossover (MDI-X), the two pairs of wires THROUGH must be straight-through.

  • Page 35: 1000Base-T Pin Assignments

    1000BASE-T PIN All 1000BASE-T ports support automatic MDI/MDI-X operation, so you can use straight-through cables for all network ASSIGNMENTS connections to PCs or servers, or to other switches or hubs. The table below shows the 1000BASE-T MDI and MDI-X port pinouts.

  • Page 36: Fiber Standards

    FIBER International Telecommunication Union (ITU-T) standardized various fiber types for data networks. These are STANDARDS summarized in the following table. Table 13: Fiber Standards ITU-T Standard Description Application Multimode Fiber Short-reach connections in the 1300- nm G.651 or 850-nm band 50/125-micron core G.652 Non-Dispersion-Shifted Fiber...

  • Page 37: Specifications

    100BASE-TX: RJ-45 (100-ohm, UTP cable; Category 5 or better) 1000BASE-T: RJ-45 (100-ohm, UTP or STP cable; Category 5, 5e or 6) *Maximum Cable Length - 100 m (328 ft) Ports 9-10: RJ-45 connector/ (100/1000M)SFP (SM10P only) BUFFER 1392KB on-chip frame buffer ARCHITECTURE...

  • Page 38: Switch Features

    POWER SUPPLY Internal, auto-ranging transformer: 100 to 240 VAC, 50 to 60 Hz POWER 20 Watts maximum CONSUMPTION SWITCH FEATURES FORWARDING Store-and-forward MODE THROUGHPUT 35.712Mpps FLOW CONTROL Full Duplex: IEEE 802.3x Half Duplex: Back pressure MANAGEMENT FEATURES IN-BAND SSH/SSL, Telnet, SNMP, or HTTP MANAGEMENT OUT-OF-BAND RS-232 (RJ-45) console port...
  • Page 39 COMPLIANCES EMISSIONS EN55022 (CISPR 22) Class A EN 61000-3 FCC Class A CE Mark IMMUNITY EN 61000-4-2/3/4/5/6/8/11 EN 55024  ...

  • Page 40: Compliances

    COMPLIANCES 10BASE-T IEEE 802.3 specification for 10 Mbps Ethernet over two pairs of Category 3, 4, or 5 UTP cable 100BASE-TX IEEE 802.3u specification for 100 Mbps Ethernet over two pairs of Category 5 UTP cable 1000BASE-LH Specification for long-haul Gigabit Ethernet over two strands of 9/125 micron core fiber cable 1000BASE-LX IEEE 802.3z specification for Gigabit Ethernet over two strands...
  • Page 41 FULL DUPLEX Transmission method that allows two network devices to transmit and receive concurrently, effectively doubling the bandwidth of that link GIGABIT ETHERNET A 1000 Mbps network communication system based on Ethernet and the CSMA/ CD access method. IEEE Institute of Electrical and Electronic Engineers. IEEE 802.3 Defines carrier sense multiple access with collision detection (CSMA/CD) access method and physical layer specifications.
  • Page 42 SWITCHED PORTS Ports that are on separate collision domains or LAN segments. Telecommunications Industry Association. TRANSMISSION Protocol suite that includes TCP as the primary transport CONTROL protocol, and IP as the network layer protocol. PROTOCOL/INTERNE T PROTOCOL (TCP/IP) USER DATAGRAM UDP provides a datagram mode for the packet-switched PROTOCOL (UDP) communications.
