IMPORTANT SAFETY RECOMMENDATIONS FAILURE TO COMPLY WITH THE FOLLOWING SAFETY RECOMMENDATIONS MAY RESULT IN SERIOUS PERSONAL INJURY, DEATH AND/OR PROPERTY DAMAGE. READ AND FOLLOW ALL SAFETY AND INSTALLATION INSTRUCTIONS CAREFULLY. The installation of the Automatic Garage Door Opener (herein after referred to as “Opener”) must be carried out by a technically qualified or licensed person.
IMPORTANT SAFETY RECOMMENDATIONS 14. Never use the Opener unless the Garage Door is in full view and free from objects such as cars, children and/or adults. 15. Never allow children to operate the Opener. 16. Never operate the Opener when children/persons are under or near the path of the door. Children must be supervised at all times when near the Garage Door and when the Opener is in use.

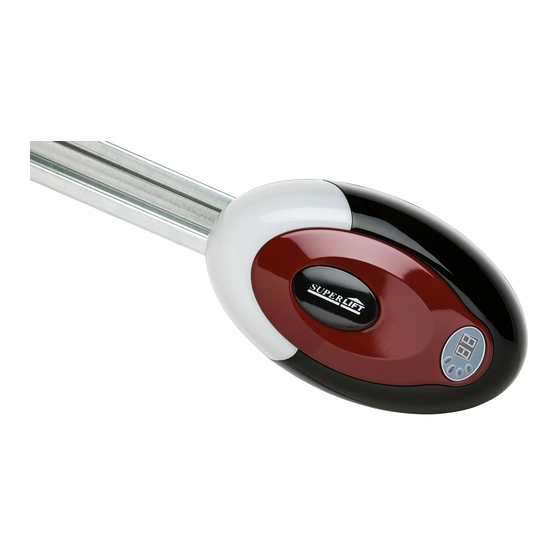

TECHNICAL SPECIFICATIONS INPUT VOLTAGE: 240VAC 50Hz MAX DOOR HEIGHT: 2.4m, 2.7m, and 3.0m depending on shaft length MAX DOOR WIDTH: 5 Meters MAX DOOR AREA: 12 Square Meters MAX LIFTING CAPACITY: Electronically Limited to 800N MOTOR TYPE: 24 Volt DC SAFETY OBSTRUCTION FORCE SYSTEM: Electronically Adjusted DOOR TRAVEL ADJUSTMENT:...
ASSEMBLY INSTRUCTIONS 1. Assembling Drive Rail to Power Head On a clean, smooth surface, unpack the Drive Rail, Motor Head and two “U” Brackets with Nyloc Nuts (Fig.1) Align and insert the Drive Rail onto the Drive Shaft (Fig.1) Attach the two “U” Brackets over the Drive Rail and secure to the Motor Head with the M6 Nyloc Nuts.
INSTALLATION INSTRUCTIONS 5. Identifying Garage Door Type From the diagrams depicted (Fig.3) select the type of installation that is best suited to your Garage Door type. Fig 3 Installation to track-type fittings Installation to jamb-type fittings Installation to jamb-type fittings Bent arm to top edge of door.
INSTALLATION INSTRUCTIONS 7. Mounting Door Bracket Find the Garage Door Center Line and affix the Door Bracket (Fig.2 Section D) on to a structural member of the Garage Door. Mark the location of at least 2 screw holes as far apart from each other as possible.
INSTALLATION INSTRUCTIONS 10. Mounting Connecting Arms to Carriage and Door 10.1 Close the Garage Door. With the Opener disengaged, attach the Straight Connecting Arm to the Carriage using the Clevis Pin (Fig.2 Section B) 10.2 Secure the Clevis Pin with the Spring Pin. 10.3 Attach the Bent Connecting Arm to the Door Mounting Bracket using the Clevis Pin.
SETTINGS & ADJUSTMENTS LED SCREEN DOWN CODE Control Panel Fig 9 Programming the Operator 13. Preparation 13.1 Ensure that the Opener is engaged (refer to Sec.12). Raise and lower the door by hand to confirm the Carriage is locked onto the chain/belt connector. 13.2 Connect the Power Cord to a properly earthed power supply.
SETTINGS & ADJUSTMENTS >> >> Fig 11 15. Setting Door Travel 15.1 Press and hold the “Set” button until “P1” is displayed on the LED Screen (Fig.12) 15.2 Momentarily press the “Set” button. “OP” will be displayed on the LED Screen. Press and hold the “Up”...
SETTINGS & ADJUSTMENTS DJUSTMENTS >> >> >> >> >> Fig 12 17. Testing Close Direction Safety Obstruction Force 17.1 With the Garage Door in the Fully Open position stand inside the garage just behind the path of the Garage Door close to its middle position 17.2 Place a 40mm thick block of wood perpendicular to, and under the line of the door.
18.6 Securely fix the cable up and along the wall and run one length of each cable adjacent to the Rear Cover. 18.7 Strip back and connect one strand of each cable to the terminals marked “PB” & “GND”. (Fig.14) 18.8 Note: Superlift Safety Beam kits contains full instructions on mounting and connecting. +24V PB GND PBSW...
20.5 If the Garage Door commences a close cycle but within 1 second stops and reverses, check that the Safety Beams are aligned correctly as outlined in points 19.1~19.5. 20.6 Important Note: The Opener will only support the fitment of Superlift Brand 2 wire Safety Beams.
SETTINGS & ADJUSTMENTS 21. Auto Close Mode 21.1 In Auto Close Mode the Opener will automatically close at a pre set time after it reaches the fully open position. 21.2 To enable the Auto Close function press and hold down the “Set” button until “P1” is displayed on the LED Screen.
SETTINGS & ADJUSTMENTS 24. Light Bulb Replacement 24.1 Switch the power off at the power supply. 24.2 Remove the Light Cover located at the front end of the Power Head. 24.3 Remove the original Light Bulb. The bulb has a bayonet fitting. Push the bulb in and twist to remove.
TROUBLE SHOOTING GUIDE SYMPTOM POSSIBLE CAUSES REMEDY Garage Door will not * Mains power not turned on * Turn on mains power operate * Garage Door is obstructed * Check for obstruction * Garage Door may be obstructed. Door stops during * Disengage Opener and check * Garage Door springs may have lost open cycle before...
