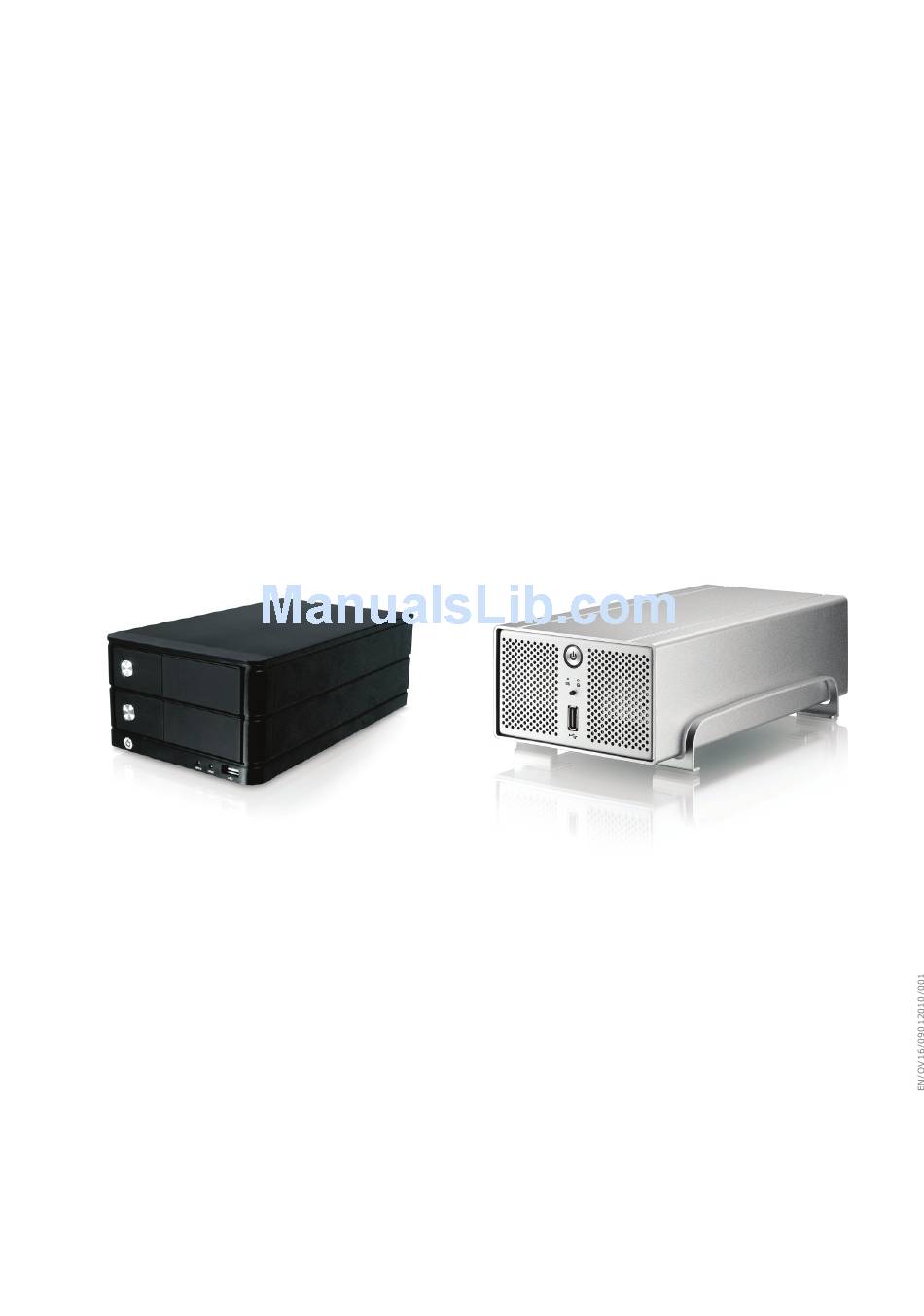

- Page 1 Entry-Level 4 Channel Network Video Recorder Quick Guide v1.6.0 NVR-304 Basic NVR4CH Basic...
-
Page 2: Table Of Contents
Contents Purpose Package Contents Hardware Illustration NVR4CH Basic NVR-304 Basic LEDs and Buttons Hard Drive Installations NVR4CH Basic NVR-304 Basic Connect to the NVR Set up Password Add a Camera Recording Configurations... -
Page 3: Purpose
4 Channel (Basic) Network Video Recorder Purpose This document provides information for installing the 4CH Basic Net- work Video Recorder on your network. The information included in this document should be sufficient for users to quickly setup the device and start the live video monitoring. -
Page 4: Hardware Illustration
4 Channel (Basic) Network Video Recorder Hardware Illustration NVR4CH Basic (Front) Manual Recording button (Manual Recording) (Rear) -
Page 5: Nvr-304 Basic
4 Channel (Basic) Network Video Recorder NVR-304 Basic (Front) HDD Tray HDD Tray Power button HDD LEDs and LED USB Connector (Rear) USB connector Reset/Restart but- Power jack Ethernet jack... -
Page 6: Leds And Buttons
4 Channel (Basic) Network Video Recorder LEDs and Buttons Power Button: (Blue when ON) Press to turn on/off the system Front LEDs: OS LED Solid green: System ready Off: System Off Blinking: 1. System shutting down 2. Upgrading firmware a) Through USB drive: Blinking indicating the upgrade is in pro- cess. - Page 7 4 Channel (Basic) Network Video Recorder Ethernet Port LED The green LED on the left indicates the link connection and the LED on the right indicates the speed Restart Button Press and release the button for hardware re- start. The OS LED should should go off during the restart to indicate the system is restarting.
-
Page 8: Hard Drive Installations
4 Channel (Basic) Network Video Recorder Hard Drive Installations NVR4CH Basic 1. Remove the four screws 2. Push the inner enclosure from the bottom of the case. out, and remove the outer chassis. 3. Install the first hard drive 4. Mount the drive with two by placing it in the enclosure screws on each side. -
Page 9: Nvr-304 Basic
4 Channel (Basic) Network Video Recorder NVR-304 Basic 1. Push the silver button to 2. Pull out the HDD tray release the HDD tray 3. Place the HDD on the tray 4. Push the tray back in the and secure the HDD with the... -
Page 10: Connect To The Nvr
4 Channel (Basic) Network Video Recorder Connect to the NVR There are various ways you can connect to the NVR and below are the suggested methods for different network setup: • The NVR is placed in a network with a DHCP server: Connect to the NVR by using “NVR Search”... - Page 11 4 Channel (Basic) Network Video Recorder Once the installation is complete, check the “Launch the Search AP” option and click “Finish”: The search should start automatically and its status should be dis- played: The NVR should be located and its IP address should be displayed: Double-click on an NVR and the search program should automati- cally access the NVR’s web administration page from your default browser...
- Page 12 4 Channel (Basic) Network Video Recorder You should be prompted for the the NVR’s username and password. Enter its default username “admin” and password “admin” and then click”OK” to enter the system...
- Page 13 4 Channel (Basic) Network Video Recorder Access the NVR with its default IP address The NVR comes with a pre-configured static IP “192.168.101.50”. However, it is only used when there is no DHCP server presented in the network. The NVR will turn on its DHCP server function and act as the DHCP server in the network.
-
Page 14: Set Up Password
4 Channel (Basic) Network Video Recorder Set up Password The default login username and password is admin/admin. To change the password of the admin account, go to “Setup” --> “System Con- figurations” --> “User Account”, click on the “admin” account in the ac- count list then press the “edit”... -
Page 15: Add A Camera
4 Channel (Basic) Network Video Recorder Add a Camera Automatic Search: 1. Click the “Search” button to perform the camera search. You should be prompted to install Active Control component in order for the search to function properly. Go ahead and click “Install” 2. - Page 16 4 Channel (Basic) Network Video Recorder 5. Click on “Detect” to establish connection between the recorder and the camera. If connection establishes successfully, camera’s detailed information should be polled and displayed as below 6. Adjust its video format, frame rate, resolution or bitrate…etc if you wish and then click “Add”...
-
Page 17: Recording Configurations
4 Channel (Basic) Network Video Recorder Recording Configurations The “recording configurations” gives users the overall control of how and when a recording is performed and the quality of different types of recordings performed on each channels. It can help the recorder to operate with sufficient system resource by performing recording only when it’s necessary with adjustable recording frame rate. - Page 18 4 Channel (Basic) Network Video Recorder The “recording buffer” allows user to define “pre-alarm” and “post- alarm” time for event recordings. The “pre-alarm” time sets the NVR to record in advance when an event is triggered. The “post-alarm” time sets the NVR to continue recording for a period of time after an event trigger is finished.
- Page 19 4 Channel (Basic) Network Video Recorder Schedule Recording Here you can define the time range of the schedule recording for all channels. To configure a schedule recording: 1. Use the “Channel” drop-down menu and select a camera first 2. You can use the schedule table to set the time range. Click the cell boxes then move horizontally lets you set what hours to perform recording during a day.
- Page 20 4 Channel (Basic) Network Video Recorder 3. You can also use the “Quick Configuration” to define recording time range instead of clicking cell boxex one by one on the time ta- ble. Simply check what days you would like to perform recording and specify the recording duration by either choosing “All Day”...
