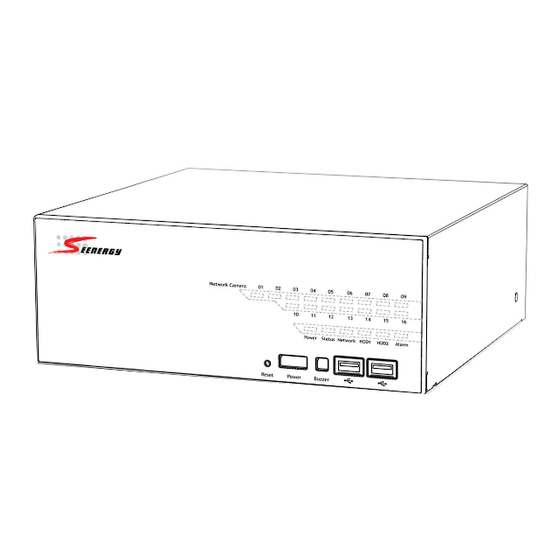

- Page 1 Connecting Digital Vision Network Video Recorder Quick Installation Guide v1.0.0 SVR-116+ Model:...
-
Page 2: Table Of Contents
Contents Purpose Package Contents Install Hard Disk System Overview (Front/Rear) I/O Ports and RS-485 (Rear) LEDs Definition Connect to the NVR Set up Password Add a Camera Recording Configurations UPS Configurations... -
Page 3: Purpose
“Plus” Network Video Recorder Purpose This document provides information for installing SEEnergy SVR Plus series Network Video Recorder on your network. The information in- cluded in this document should be sufficient for users to quickly setup the device and start the live video monitoring. Users should also be able to perform basic troubleshooting with information provided in this document. -
Page 4: Install Hard Disk
SEEnergy Series “Plus” Network Video Recorder Install Hard Disk Start by removing the screws on the side: Push the top housing forward Then lift it up • The NVR supports SATA I or SATA II hard disks • The NVR supports max. 1.5TB per hard disk and it supports total of 2 hard disks (3TB) - Page 5 SEEnergy Series “Plus” Network Video Recorder There is a cable connected between the fron LED board and the main board You can remove it from the main board or simply put the top housing on the side like shown below:...
- Page 6 SEEnergy Series “Plus” Network Video Recorder Make sure the SATA connectors are aligned with each other correctly Secure the hard drive with the tool-less screw provided in the box Place the top housing back and secure it with the bottom housing...
-
Page 7: System Overview (Front/Rear)
SEEnergy Series “Plus” Network Video Recorder Front/Rear View... -
Page 8: I/O Ports And Rs-485 (Rear)
SEEnergy Series “Plus” Network Video Recorder I/O Ports and RS-485 (Rear) Signal 12V DC 3~10 Alarm input Out1 Out2 Out3 Out4 RS485+ RS485-... -
Page 9: Leds Definition
SEEnergy Series “Plus” Network Video Recorder LEDs Definition Solid green when the hard disk is mounted and Green being accessed Solid red for disk fail HDD x 2 Solid amber when recording is in process. Amber Blinking when recycling Amber Solid amber for activity on a 1G bps network. -
Page 10: Connect To The Nvr
Use SEEnergy Device Search Utility If the NVR is placed in a corporate network or a local area network where a DHCP server is already presented, run the “SEEnergy Device Search” utility from a computer that is on the same network and locate the NVR with its IP address that is assigned by the top-level DHCP server. - Page 11 SEEnergy Series “Plus” Network Video Recorder Once the installation is complete, check the “Launch the Search AP” option and click “Finish”: The search should start automatically and its status should be dis- played: The NVR should be located and its IP address should be displayed: Double-click on an NVR and the search program should automati- cally access the NVR’s web administration page from your default...
- Page 12 SEEnergy Series “Plus” Network Video Recorder You should be prompted for the the NVR’s username and password. Enter its default username “admin” and password “admin” and then click”OK” to enter the system...
- Page 13 SEEnergy Series “Plus” Network Video Recorder Access the NVR with its default IP address The NVR comes with a pre-configured static IP “192.168.101.50”. However, it is only used when there is no DHCP server presented in the network. The NVR will turn on its DHCP server function and act as the DHCP server in the network.
-
Page 14: Set Up Password
SEEnergy Series “Plus” Network Video Recorder Set up Password The default login username and password is admin/admin. To change the password of the admin account, go to “Setup” --> “System Con- figurations” --> “User Account”, click on the “admin” account in the ac- count list then press the “edit”... -
