Toyota Genuine Audio
INSTALLATION INSTRUCTIONS
FOR
Corolla Verso (RHD)
R1
R
**
*
Manual Ref. n° AIM 000 077-0
TOYOTA MOTOR CORPORATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Corolla Verso R1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toyota Corolla Verso R1

Summary of Contents for Toyota Corolla Verso R1

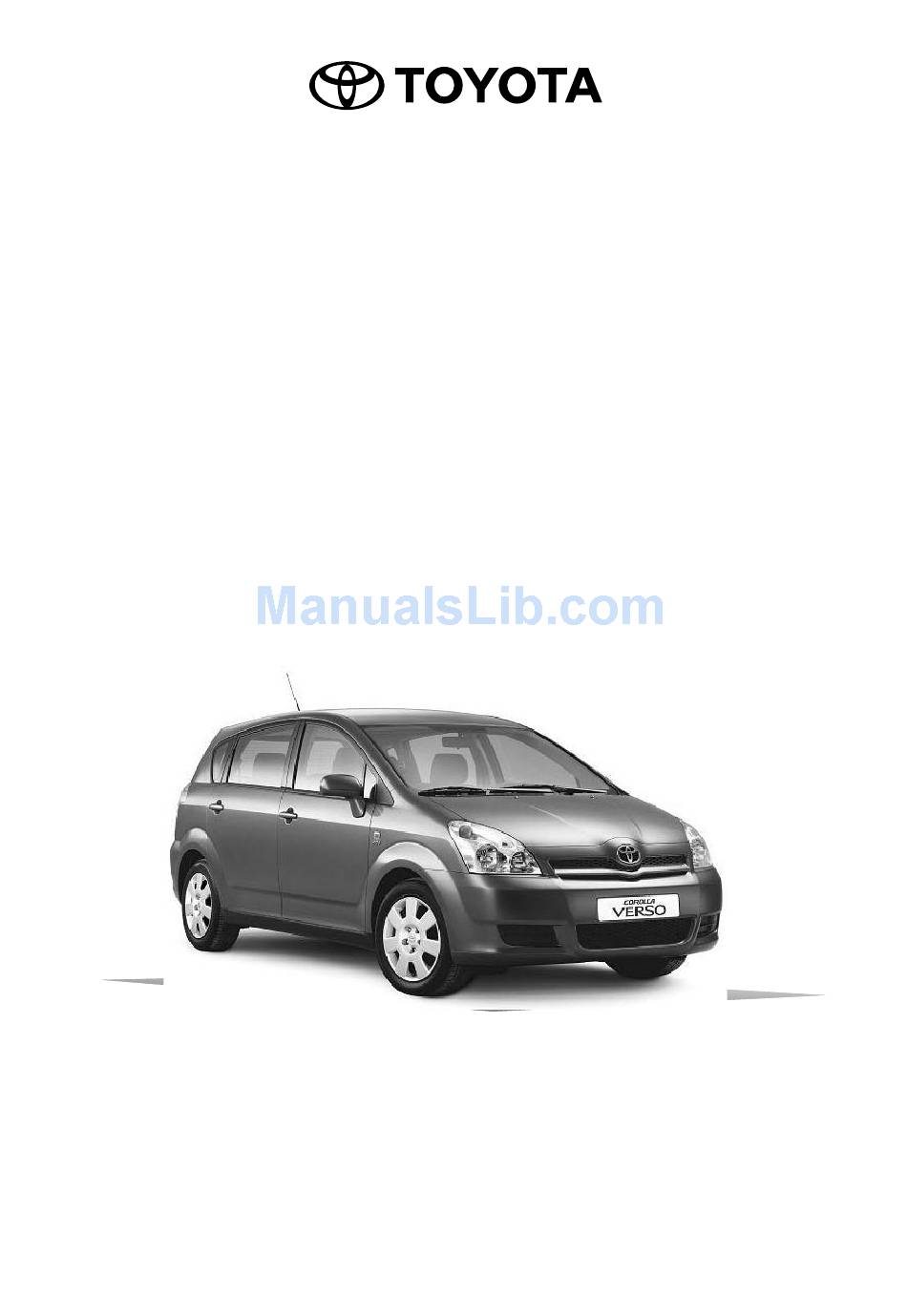

  • Page 1 Toyota Genuine Audio INSTALLATION INSTRUCTIONS Corolla Verso (RHD) Manual Ref. n° AIM 000 077-0 TOYOTA MOTOR CORPORATION...

  • Page 2: Table Of Contents

    Corolla Verso (R1) TOYOTA GENUINE AUDIO TABLE OF CONTENTS 1. Application Chart ................................ 2. System Layout ................................3. 6 CD-changer Installation ............................3.1 Vehicle Disassembly ............................3.2 Installation under the Passenger’s Seat ......................4. Subwoofer Installation ............................... Corolla Verso (RHD) - 3...
  • Page 3 p. 1/1...

  • Page 4: System Layout

    Corolla Verso (R1) TOYOTA GENUINE AUDIO 2. SYSTEM LAYOUT 6 CD-CHANGER See Application Chart Corolla Verso (RHD) - 5 02-04...

  • Page 5: Cd-Changer Installation

    Corolla Verso (R1) TOYOTA GENUINE AUDIO 3. 6 CD-CHANGER INSTALLATION 3.1 VEHICLE DISASSEMBLY Remove the louver (L+R). : Hook (6x) : Clip (3x) : Hook (3x) CAUTION Remove the hook at the inner side of the glove compartment. CAUTION Put the protective tapes on the shaded areas.
  • Page 6 Corolla Verso (R1) TOYOTA GENUINE AUDIO Remove the combo : Screw (4x) : Clip (4x) Fig. 7 FOR M/T MODELS Remove the shift knob Remove the center lower cover : Screw (2x) : Clip (2x) : Clip (2x) : Hook (2x) Fig.
  • Page 7 Corolla Verso (R1) TOYOTA GENUINE AUDIO Remove the footrest : Clip (2x) Fig. 7 Remove the front door scuff plate (R) . : Clip (3x) : Hook (9x) Remove the kick panel (R) . : Nut (1x) : Hook (3x) Fig.
  • Page 8 Corolla Verso (R1) TOYOTA GENUINE AUDIO 10. Remove the driver seat : Bolt (5x) : Cover (2x) : Seat side trim : Hook (8x) Fig. 10 Corolla Verso (RHD) - 9 02-04...
  • Page 9 Corolla Verso (R1) TOYOTA GENUINE AUDIO Remove the clip of the duct Remove the silencer mat Fig. 11 02-04 Corolla Verso (RHD) - 10...
  • Page 10 Corolla Verso (R1) TOYOTA GENUINE AUDIO INSTALLATION UNDER THE DRIVER SEAT 12. Hold the seat side trim as shown and cut off a small part at the front 5mm wide for 55mm long. Fig. 12 13. Cut the tape into 10 pieces.
  • Page 11 Corolla Verso (R1) TOYOTA GENUINE AUDIO 14. Route the changer wire and attach using tape Not connected : Tape (1x) Not connected ONLY IN CASE OF FULL MAP NAVIGATION 15. Connect the conversion harness To Audio unit (08695-00370). Fig. 14...
  • Page 12 Corolla Verso (R1) TOYOTA GENUINE AUDIO Route the changer wire and attach using tape : Tape (4x) Attach the excess wire of the changer wire as shown using tape : Tape (2x) Excess wire 280mm Fig. 15 Cut the silencer mat as shown.
  • Page 13 Corolla Verso (R1) TOYOTA GENUINE AUDIO Cut the carpet as shown in the illustra- tion. Strip off the insulation mat underneath Seat fixation hole the shaded area. Seat fixation hole Fig. 17 19. Mark the position of the base bracket as shown.
  • Page 14 Corolla Verso (R1) TOYOTA GENUINE AUDIO 21. Fit the bracket to the changer unit using screws : Screw (M5x8) (2x) CAUTION CAUTION Loosen the screws before moving them. Screw up after the position is changed. Fig. 20 Attach tape to the base bracket as shown.

  • Page 15: Subwoofer Installation

    Corolla Verso (R1) TOYOTA GENUINE AUDIO 4. SUBWOOFER INSTALLATION Remove the screws from the sub- woofer Fig. 22 Cut the carpet as shown in the illustra- tion. Strip off the insulation mat underneath Seat fixation hole the shaded area. Seat fixation hole Fig.
  • Page 16 Corolla Verso (R1) TOYOTA GENUINE AUDIO Cut the carpet at the base bracket position as shown. Fit the anchor nuts in the existing holes (Ø10mm). : Anchor nut (M5) (2x) Fig. 25 Cut the tape into 11 pieces. Wrap tape...
  • Page 17 Corolla Verso (R1) TOYOTA GENUINE AUDIO Fold up the floor carpet Route and attach the subwoofer wire harness using tape : Tape (10x) Excess wire Fig. 27 Connect the subwoofer wire harness 10P audio connector to the 10P audio connector of the...
  • Page 18 Corolla Verso (R1) TOYOTA GENUINE AUDIO Before fitting the subwoofer adjust the sensitivity to the correct position. Fig. 29 Fit the bracket to the subwoofer using the screws (4x). Fig. 30 Corolla Verso (RHD) - 19 02-04...
  • Page 19 Corolla Verso (R1) TOYOTA GENUINE AUDIO Attach tape to the base bracket as shown. : Tape (70mmx25mm) (1x) Fit the base bracket and the subwoofer using screws : Screw (M5x16) (2x) Connect the subwoofer wire harness to the subwoofer Fig. 31 ENSURE THAT ALL REMOVED CONNECTORS ARE PUT BACK CORRECTLY.
  • Page 20 GENUINE PARTS...
