Britax Click & Go Instruction Manual

Britax Click & Go Instruction Manual

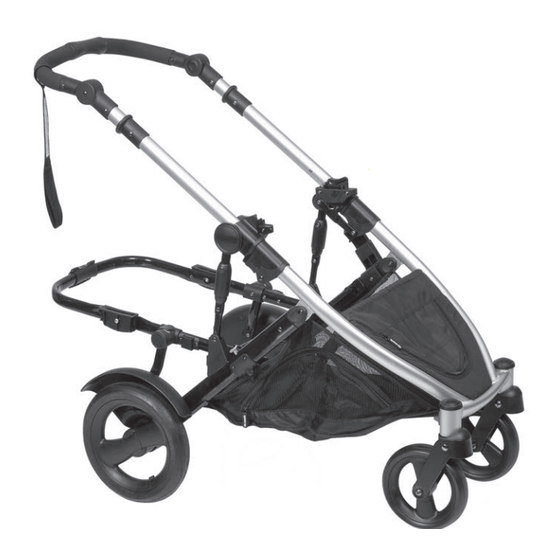

Infant carrier lower frame
Hide thumbs Also See for Click & Go:

Advertisement

Quick Links

Download this manual

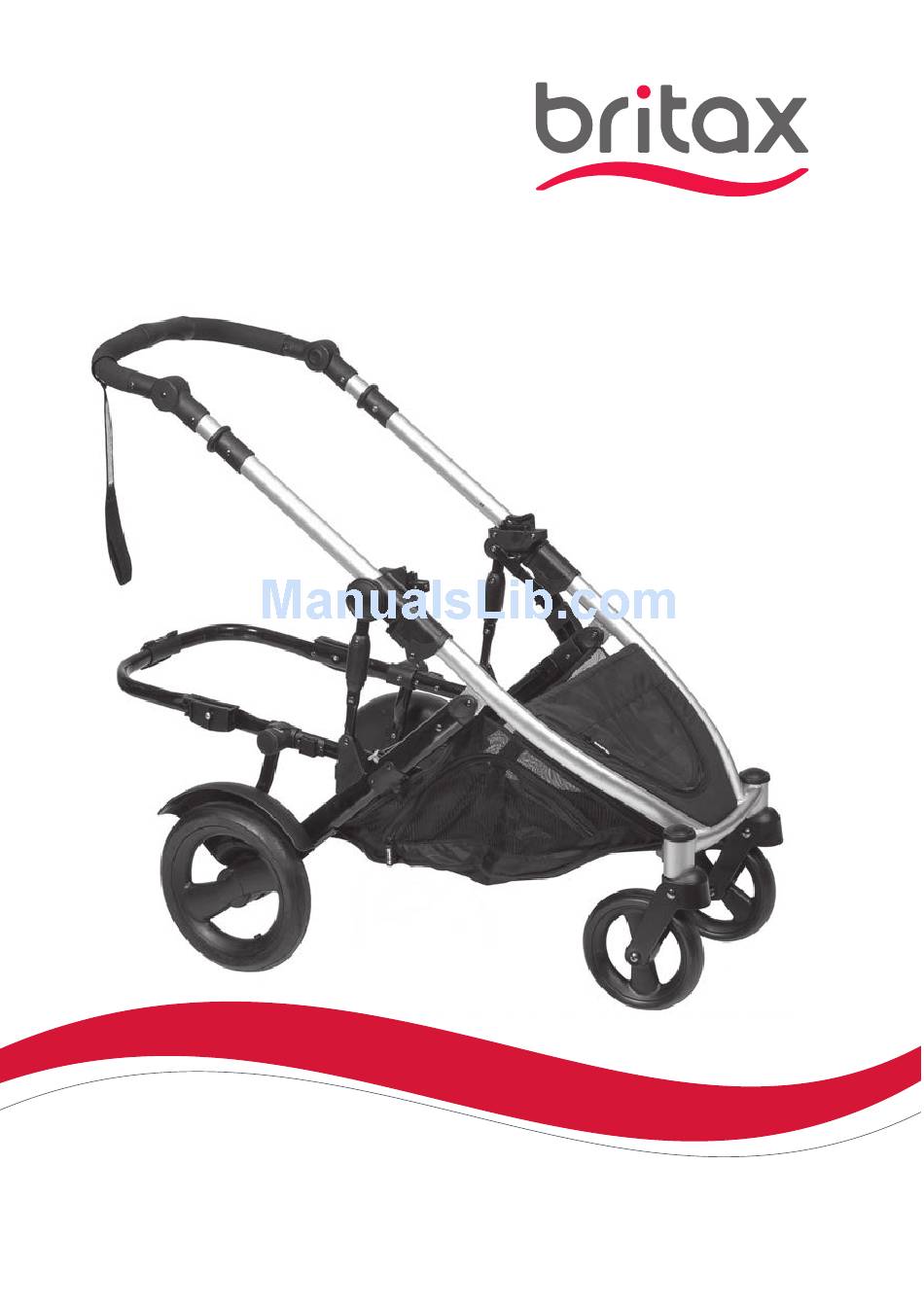

CLICK & GO
INFANT CARRIER
LOWER FRAME
WITH INTEGRATED CLICK AND GO RECEIVERS
FOR STRIDER COMPACT STROLLER & E BRAKE STROLLER
TO ACCOMMODATE A BRITAX SAFE-N-SOUND
UNITY INFANT CARRIER WITH INTEGRATED
CLICK & GO ADAPTERS
INSTRUCTION MANUAL
IMPORTANT: KEEP THIS BOOKLET IN A SAFE PLACE FOR FUTURE REFERENCE
Series No. ZA8345

Advertisement

loading
Need help?

Need help?

Do you have a question about the Click & Go and is the answer not in the manual?

Questions and answers

Related Manuals for Britax Click & Go

Summary of Contents for Britax Click & Go

  • Page 1 INFANT CARRIER LOWER FRAME WITH INTEGRATED CLICK AND GO RECEIVERS FOR STRIDER COMPACT STROLLER & E BRAKE STROLLER TO ACCOMMODATE A BRITAX SAFE-N-SOUND UNITY INFANT CARRIER WITH INTEGRATED CLICK & GO ADAPTERS INSTRUCTION MANUAL IMPORTANT: KEEP THIS BOOKLET IN A SAFE PLACE FOR FUTURE REFERENCE...

  • Page 2: Important Notes

    • THE CLICK AND GO INFANT CARRIER LOWER FRAME CAN ONLY BE USED ON THE STEELCRAFT STRIDER COMPACT STROLLER SERIES AND THE BRITAX E BRAKE STROLLER SERIES. • IT IS UNSAFE TO USE ACCESSORIES NOT APPROVED FOR USE WITH THE CLICK AND GO INFANT CARRIER LOWER FRAME.

  • Page 3: Manual Handling Techniques

    MANUAL HANDLING TECHNIQUES SMART lifting technique This technique can be used to pick up small light loads from low levels. Size up the Load • Assess the load (size, shape and weight). • Assess whether the load needs to be moved; •...
  • Page 4 INFANT CARRIER LOWER FRAME 1. INFANT CARRIER LOWER FRAME CONNECTING PINS 2. INFANT CARRIER LOWER FRAME LEG TUBES 3. INFANT CARRIER RELEASE BUTTONS 4. UNITY INFANT CARRIER RECEIVERS 5. INFANT CARRIER LOWER FRAME FOLDING LEVER 6. INFANT CARRIER LOWER FRAME STABILISING BAR 7.
  • Page 6 TO USE THE STEELCRAFT RECEIVERS SUPPLIED WITH THE INFANT CARRIER LOWER FRAME D Install the stroller seat or Steelcraft infant carrier. To install the stroller seat on the Strider Compact stroller using the Steelcraft receivers: Please refer to Page 63 of the Strider Compact Instruction Manual supplied with the stroller.
  • Page 7 TO FIT THE INFANT CARRIER LOWER FRAME IMPORTANT NOTES PLEASE REFER TO PAGE 3 FOR LIFTING TECHNIQUES. • WHEN FITTING THE CLICK & GO INFANT CARRIER LOWER FRAME TO THE STROLLER, BE AWARE OF THE DANGER OF BEING INJURED BY MOVING PARTS AND LOCKING DEVICES DURING THE PROCESS.
  • Page 8 TO FIT THE INFANT CARRIER LOWER FRAME C Then hook the infant carrier lower frame connecting pins (1) into the stroller frame mouldings, then pull downwards. D Lower the infant carrier frame and push down to lock the leg tubes (2) into the lower stroller frame mouldings.
  • Page 9 TO FIT THE INFANT CARRIER LOWER FRAME E Pull up on the infant carrier lower frame to make sure it is locked onto the stroller frame. F Lift the folding lever (5) on the infant carrier lower frame and raise the frame so it slides down the stroller frame and engages into the second lock on the stroller.
  • Page 10 INTO THE INFANT CARRIER LOWER FRAME IMPORTANT NOTES PLEASE REFER TO PAGE 3 FOR LIFTING TECHNIQUES. • THESE INSTRUCTIONS ARE FOR INSTALLING THE BRITAX SAFE-N-SOUND UNITY INFANT CARRIER INTO THE CLICK & GO INFANT CARRIER LOWER FRAME ONLY. FOR INSTALLING THE INFANT CARRIER IN THE CAR PLEASE FOLLOW THE INSTRUCTION BOOK INCLUDED WITH THE INFANT CARRIER.
  • Page 11 IMPORTANT NOTES PLEASE REFER TO PAGE 3 FOR LIFTING TECHNIQUES. • THESE INSTRUCTIONS ARE FOR REMOVING THE BRITAX SAFE-N-SOUND UNITY INFANT CARRIER FROM THE CLICK & GO INFANT CARRIER LOWER FRAME ONLY. FOR REMOVING THE INFANT CARRIER FROM THE CAR PLEASE FOLLOW THE INSTRUCTION BOOK INCLUDED WITH THE INFANT CARRIER.
  • Page 12 • WHEN FOLDING THE CLICK & GO INFANT CARRIER LOWER FRAME BE AWARE OF THE DANGER OF BEING INJURED BY MOVING PARTS AND LOCKING DEVICES DURING THE PROCESS. • THE BRITAX SAFE-N-SOUND UNITY CARRIER MUST BE REMOVED FROM THE LOWER FRAME BEFORE REMOVING INFANT CARRIER LOWER FRAME FROM THE STROLLER FRAME.
  • Page 13 AWARE OF THE DANGER OF BEING INJURED BY MOVING PARTS AND LOCKING DEVICES DURING THE PROCESS. • THE BRITAX SAFE-N-SOUND UNITY CARRIER MUST BE REMOVED FROM THE INFANT CARRIER LOWER FRAME BEFORE REMOVING THE INFANT CARRIER FRAME FROM THE STROLLER FRAME.
  • Page 14 TO REMOVE THE INFANT CARRIER LOWER FRAME NOTE: FOR EASIER REMOVAL, ROTATE THE PIVOTAL HANDLE OF THE STROLLER IN THE MOST UPRIGHT POSITION. A Fold the infant carrier lower frame under the stroller frame - See page 12. B With the infant carrier lower frame in the folded position, locate the release buttons (3) on both sides of the frame and fully depress the release buttons until you see the adjacent buttons pop out of the mouldings.

  • Page 15: Care And Maintenance

    TO REMOVE THE INFANT CARRIER LOWER FRAME C A gentle upward, then forward motion (as indicated by the arrow) will be required to release the infant carrier lower frame connecting pins (1) out of the stroller frame mouldings. CAUTION D Lift the infant carrier lower frame out and away from the stroller frame. CARE AND MAINTENANCE •...
  • Page 16 A Britax International Company We reserve the right to alter these products without notice. ABN 55 006 773 6000 The Britax Trademark is the property of Britax Childcare 99 Derby Road Sunshine Holdings Limited - UK. Victoria 3020 Australia...
