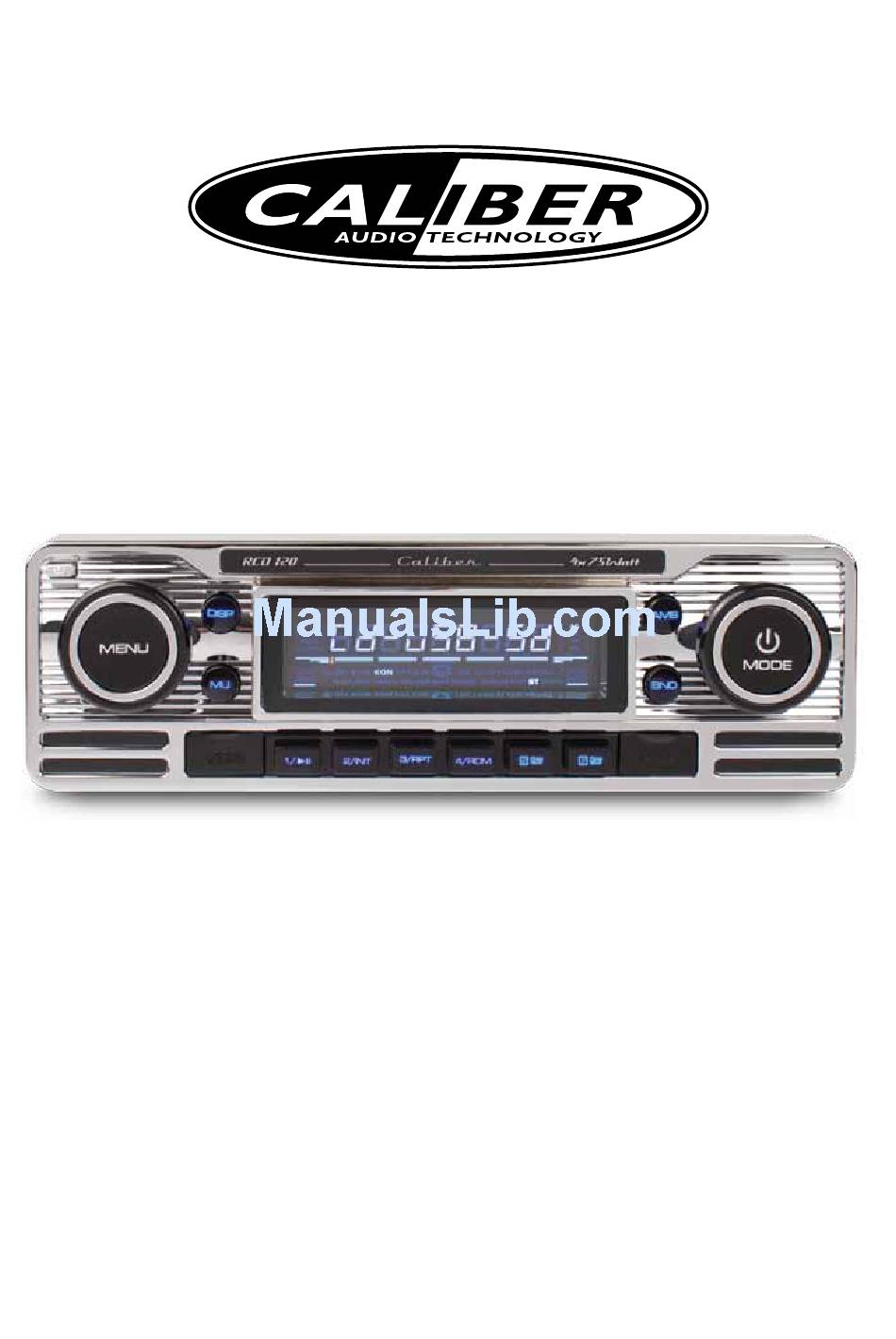

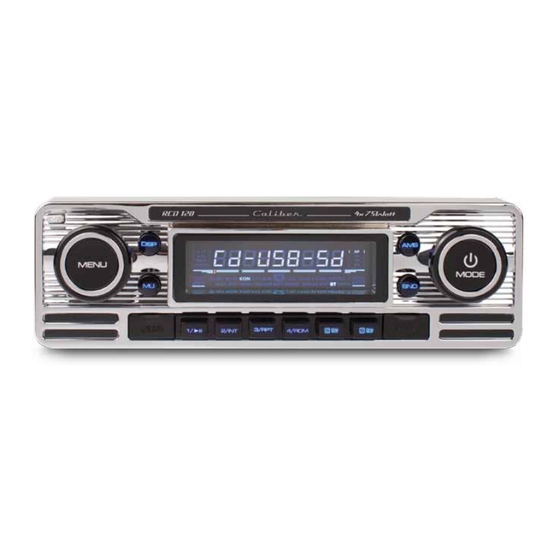

- Page 1 RCD 12 0 manual • GB •...
-
Page 2: Table Of Contents
RCD 120 manual Installation .......... -
Page 3: Installation
RCD 120 manual INSTALLATION PRECAUTION S Cho os e the moun ting loc at ion whe re the un it wi ll no t int er fer e wi th the no rmal driving function of the driver. Bef or e final ly ins tal ling the uni t, co nne ct the wi ring tem por ar ily and mak e su re it is all connected up properly and the unit and the system work properly. - Page 4 RCD 120 • MANUAL INSTALLATION Removing the unit 1. Dashboard 2. Nut (5mm) 2.Insert fingers into the groove in the 3. Spring Washer front of frame and pul l out to remove 4. Screw (5 x 25mm) the frame. (When reatt achi ng the 5.
-
Page 5: Additional Information
RCD 120 • MANUAL ADDITIONAL INFORMATION RE AR Rc h LI NE OUT RE AR Lc h LI NE OUT YELLOW BLUE BLACK GREY WHITE GREY/BLACK WHITE/BLACK VIOLET GREEN VIOLET/BLACK GREEN/BLACK... -
Page 6: General Operations
RCD 120 • MANUAL GENERAL OPERATIONS FRONT PANEL LAYOUT DISP MENU MODE 2/INT 3/RPT 4/RDM 12. Intro & Preset Button 2 1. Power / Mode / Next / Previous Button 13. Repeat & Preset Button 3 2. Release Button 14. Random & Preset Button 4 3. -
Page 7: Front Panel Release
RCD 120 • MANUAL GENERAL OPERATIONS GENERAL OPERATIONS POWER /MOD conversion 2.Under power off status,short press is power on, Under power on status,short press is switching mode,long press is power off. FRONT PANEL RELEASE Press REL button (2) to detach the removable front panel SOUND ADJUSTMENT Turn on (3) can adjust the desired volume quality. - Page 8 RCD 120 • MANUAL GENERAL OPERATIONS MENU/VOL LOUD OFF/ON DEMO OFF/ON AEM OFF/ON BEEP ON/OFF DSP OFF/ON AREA EUR/USA VOL ADT/LAST DX/LOCAL MONO/STEREO SEEK MENU/VOL MENU/VOL...
-
Page 9: Liquid Crystal Display
RCD 120 • MANUAL GENERAL OPERATIONS DISPLAY Press DISP button (5) to operate as the conversion of each display mode as follow: - Time is displayed for 5sec when DISP key is pressed, and it returns to its previous display ( Folder, File name...) unless DISP key is pressed again. -
Page 10: Radio Operations
RCD 120 • MANUAL RADIO OPERATIONS BAND SELECTION At tuner mode, press BAND button (9) to select the desired band. The reception band will change in the following order: AM1 MW AM2 MW AUTOMATICALLY MEMORY STORING & PROGRAM SCANNING - Automatically Memory Storing Press AMS button (10) for several seconds, the radio searches from the current frequency and checks the signal strength until one cycle search is finished. - Page 11 RCD 120 • MANUAL RADIO OPERATIONS LOCAL RADIO STATION SEARCH Press MENU button repeatedly to choose LOCAL(DX).Rotate VOL regulator or press VOL+/- buttons on the RCto switch between LOCAL and DX.When the LOCAL function is on the local stations(stations with weak radio) Press MENU button repeatedly until LOUD ON is displayed.Rotate VOL regulator...
-
Page 12: Cd/Sd/Mmc/Usb Operations
RCD 120 • MANUAL CD/SD/MMC/USB OPERATIONS Discs for playback: This unit can play disc types: CD/CD -R/-RW. Compatible with formats: CDDA/MP3/WMA. Loading and ejecting a disc 1. Turn the power on. 2. Insert the disc with the printed side facing upward into the slot. -
Page 13: Id3 Tag Information
RCD 120 • MANUAL CD/SD/MMC/USB OPERATIONS Id3 Tag information This unit supports ID3 tag ver2.0. If an MP3/WMA file has ID3 Tag information, it will be displayed on the LCD. If there is no ID3 Tag information, nothing will be shown on LCD. - Page 14 RCD 120 • MANUAL CD/SD/MMC/USB OPERATIONS 2. Searching Track •Press AMS twice, then searching track is activated. •Turn VOL knob to right or left, select the track you want. •Press VOL knob, the song you selected will start. 3. Searching File Name: •Press AMS 3 times, then file search is activated.
-
Page 15: Mp3 Wma Overview
RCD 120 • MANUAL MP3 is short for MPEG Audio Layer 3 and refers to an audio compression · technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. · The unit can read MP3 files written in the format compliant with ISO 9660. -
Page 16: Rds Operation
RCD 120 • MANUAL Long press SEL key,select AF and TA ON, AF flashing on display TA appears on display. Press SEL key,PTY flashing on display when select PTY. Press SEL enter TA,... -
Page 17: Specification
RCD 120 • MANUAL SPECIFICATION General Power Supply Requirements: DC 14 4V“ ”, Negative Ground Load Impedance 4 ohms Maximum Output Power: 25W x 4(CH) Chassis Dimensions: 178 x 163x 50mm (W x D x H) Current Drain: Tone Controls... -
Page 18: Before Playing Discs
RCD 120 • MANUAL BEFORE PLAYING DISCS Cleaning the CD Before playing a CD, wipe it off with a clean, dust-free cleaning cloth. Wipe the disc in the direction of the arrow. Always insert the CD with the label side facing upwards. -
Page 19: Trouble Shooting
RCD 120 • MANUAL TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after checklist has been made, consult your nearest service dealer Symptom Causes Solution If the power supply is properly... - Page 20 WW W.C alIBE R. nl CalIBER HEaD OffICE • The Netherlands • Fax: +31 (0)416 69 90 01 • E-mail: info@caliber.nl...
