RCD 1 2 0BT(/B)
MANUAL
• GB •

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCD-120BT/B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Caliber RCD-120BT/B

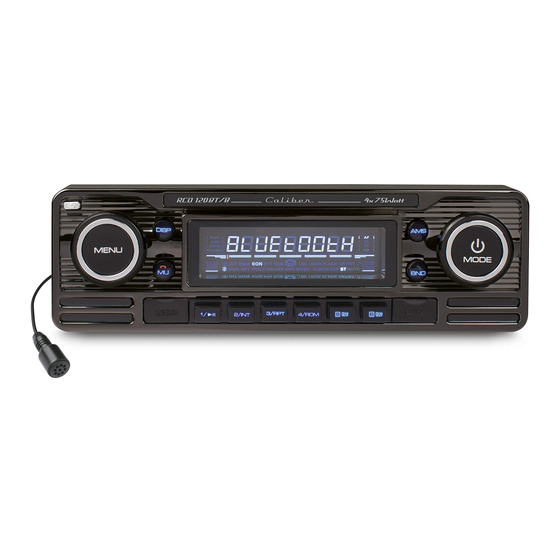

Summary of Contents for Caliber RCD-120BT/B

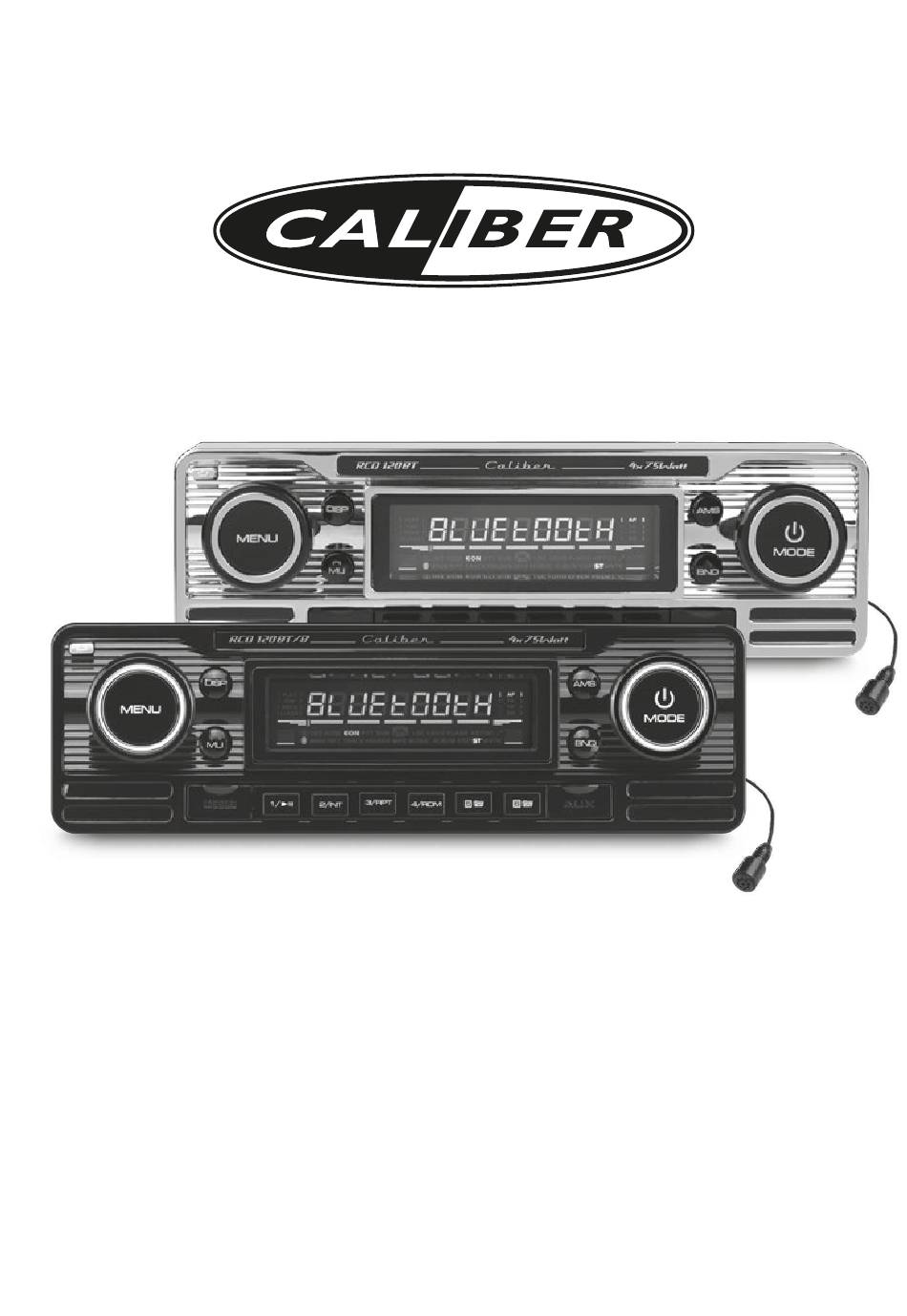

  • Page 1 RCD 1 2 0BT(/B) MANUAL • GB •...

  • Page 2: Table Of Contents

    RCD 120BT(/B) • MANUAL RCD 120BT(/B) • MANUAL INSTALLATION PRECAUTION S Cho os e the moun ting loc at ion whe re the un it wi ll no t int er fer e wi th the no rmal driving function of the driver. Installation .

  • Page 3: Installation

    RCD 120BT(/B) • MANUAL RCD 120BT(/B) • MANUAL INSTALLATION ADDITIONAL INFORMATION Removing the unit B. T. ANT EN NA 1. Dashboard RE AR Rc h LI NE OUT 2. Nut (5mm) 2.Insert fingers into the groove in the RE AR Lc h LI NE OUT 3.

  • Page 4: General Operations

    RCD 120BT(/B) • MANUAL RCD 120BT(/B) • MANUAL GENERAL OPERATIONS GENERAL OPERATIONS GENERAL OPERATIONS FRONT PANEL LAYOUT POWER /MOD conversion 2.Under power off status,short press is power on, Under power on status,short press is switching mode,long press is power off. FRONT PANEL RELEASE DISP Press REL button (2) to detach the removable front panel...
  • Page 5 RCD 120BT(/B) • MANUAL RCD 120BT(/B) • MANUAL GENERAL OPERATIONS GENERAL OPERATIONS MENU/VOL DISPLAY DSP OFF/ON LOUD OFF/ON DEMO OFF/ON AEM OFF/ON BEEP ON/OFF Press DISP button (5) to operate as the conversion of each display mode as follow: AREA EUR/USA VOL ADT/LAST DX/LOCAL MONO/STEREO...

  • Page 6: Radio Operations

    RCD 120BT(/B) • MANUAL RCD 120BT(/B) • MANUAL GENERAL OPERATIONS RADIO OPERATIONS MENU/VOL LOCAL RADIO STATION SEARCH Press MENU button repeatedly to choose LOCAL(DX).Rotate VOL regulator or press VOL+/- buttons on the RCto switch between LOCAL and DX.When the DSP OFF/ON LOUD OFF/ON DEMO OFF/ON AEM OFF/ON...

  • Page 7: Cd/Sd/Mmc/Usb Operations

    RCD 120BT(/B) • MANUAL RCD 120BT(/B) • MANUAL CD/SD/MMC/USB OPERATIONS CD/SD/MMC/USB OPERATIONS Discs for playback: Id3 Tag information This unit can play disc types: CD/CD -R/-RW. This unit supports ID3 tag ver2.0. If an MP3/WMA file has ID3 Tag information, Compatible with formats: CDDA/MP3/WMA.
  • Page 8 RCD 120BT(/B) • MANUAL RCD 120BT(/B) • MANUAL CD/SD/MMC/USB OPERATIONS 2. Searching Track •Press AMS twice, then searching track is activated. Long press SEL key,select AF and TA ON, AF flashing on display •Turn VOL knob to right or left, select the track you want. TA appears on display.

  • Page 9: Bluetooth

    RCD 120BT(/B) • MANUAL RCD 120BT(/B) • MANUAL BLUETOOTH 1.Pairing connect. Turn on car unit, put your mobile near the unit, activate your mobile bluetooth MP3 is short for MPEG Audio Layer 3 and refers to an audio compression · technology standard.

  • Page 10: Specification

    RCD 120BT(/B) • MANUAL RCD 120BT(/B) • MANUAL SPECIFICATION BEFORE PLAYING DISCS General Cleaning the CD Power Supply Requirements: DC 14 4V“ ”, Negative Ground Before playing a CD, wipe it off with a clean, dust-free cleaning cloth. Load Impedance 4 ohms Wipe the disc in the direction of the arrow.

  • Page 11: Trouble Shooting

    The antenna cable is not Connect the antenna cable The Radio or correctly connected correctly Automatic Selection Does Not Work The signals are too weak Select the station manually WWW.CALIBER.NL CALIBER EUROPE BV • Kortakker 10 • 4264 AE Veen • The Netherlands...
