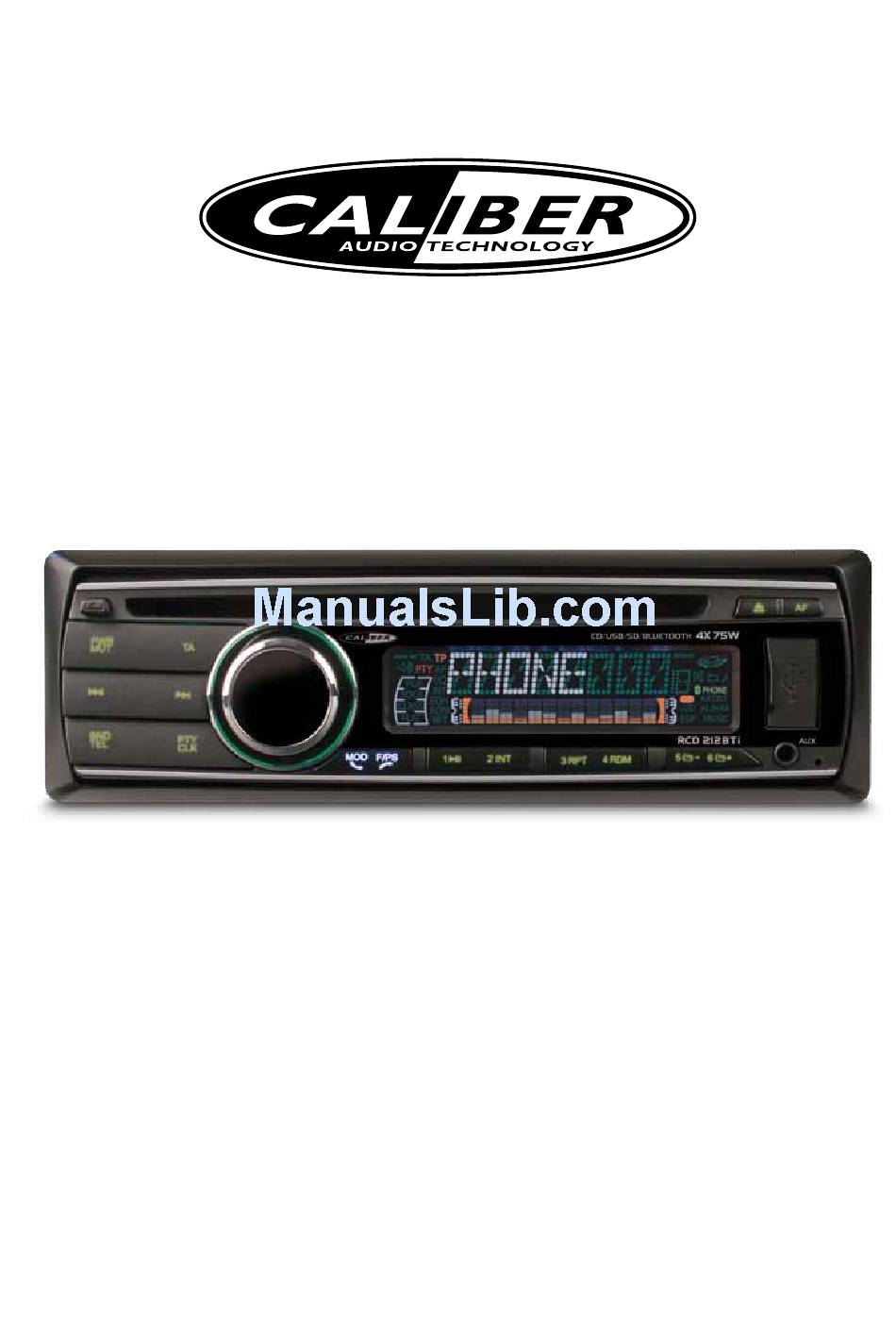

- Page 1 RCD 2 1 2BTi manual • GB •...
-
Page 2: Table Of Contents
RCD 212BTi manual Contents Precautions................3 Warnings Before Installation...........4-6 Before You Install...............7 Installation (DIN Front Mount).............8 Installation (Vehicle's Brackets)..........9 Wiring Connections.............10-11 Controls of the Unit............1 Bluetooth Operation............13 Basic Operation..............14 Radio Operation..............15 RDS Operation..............16-17 CD/MP3/WMA/USB Operation..........18-19 Maintenance................19 Ipod Operation...............0 Simple Troubleshooting Guide..........1 Specifications................... -
Page 3: Precautions
RCD 212BTi manual Precautions • This unit will only play the following discs. Type of disc Label on the disc Recorded material Size of disc 1 cm CD, MP3, WMA Audio only DO NOT ATTEMP TO MODIFY THE UNIT, MODIFYING THE UNIT MAY CAUSE AN ACCIDENT. -
Page 4: Warnings Before Installation
RCD 212BTi • MANUAL Warnings Before Installation Important Warnings to Take Note of BEFORE Com- mencing Installation Damage Caused By Incorrect Installation or Usage is NOT Covered By Warranty. PLEASE Take The Time To Read The Installation Notes Carefully. To Validate The Warranty Please Ensure That The Unit Is Installed By A Professional, VAT Registered Car Audio Installation Company. - Page 5 RCD 212BTi • MANUAL Warnings Before Installation and the speakers. Check the condition of your speakers care- fully- connecting this unit to old or degraded speakers may re- sult in a fault which will damage the audio IC and invalidate the warranty.
- Page 6 RCD 212BTi • MANUAL Warnings Before Installation for details on connecting the power amp and other units, then make the connections correctly. • Do not block any vents or heater panels. Blocking them will cause heat to build up and may result in fire.
-
Page 7: Before You Install
RCD 212BTi • MANUAL Before You Install Automotive audio equipment installations can be troublesome at times, even to the most experienced of installation technicians. If you are not confident working with electrical wiring, removing and reinstalling interior panels, carpeting, dashboards or other components of your vehicle, please call your dealer in order to have the unit professionally installed. -
Page 8: Installation (Din Front Mount)
RCD 212BTi • MANUAL Installation WARNING! Disconnect negative battery terminal from battery before starting installation. Consult the vehicle’s owner’s manual for proper instructions. NOTE: Mark the polarity of the existing speaker wires before disconnecting battery. NOTE: Remove the two transport screws from the top of the unit before installing. -
Page 9: Installation (Vehicle's Brackets)
RCD 212BTi • MANUAL Installation NOTE: Outer trim frame, hook, and mounting sleeve are not used for this installation. This is only intended as a general guide; contact the vehicle's manufacturer for specific instructions. This method of installation uses the screw holes at the sides of the unit and the holes of the existing vehicle mounting bracket. -
Page 10: Wiring Connections
RCD 212BTi • MANUAL Wiring Connections Make sure that you have a good chassis ground. Good ground connections will eliminate most electrical noise prob- lems. A good chassis ground requires a tight connection to the vehicle’s metal chassis. The area around the ground connection should be clean, bare metal without rust, paint, plastic, dust, or dirt for a good electrical connection. -
Page 11: Wiring Connections
RCD 212BTi • MANUAL Wiring Connections White Panel Light Connect to lighting circuit of vehicle. This will illuminate the but- tons on the display for night time operation. This wire can also be connected to the Orange Remote wire to activate the but- tons when the unit is powered on. -
Page 12: Controls Of The Unit
RCD 212BTi • MANUAL Control of the Unit 1. Release Panel Button 14. Auto Preset Scan / Reject Button . Power on / off / Mute 15. Number 1 / Play / Pause 3. TA 16. Number / Introduction 4. -
Page 13: Bluetooth Operation
RCD 212BTi • MANUAL Bluetooth Operation 1. Pairing call, press “REJECT” button(with red Press and hold PHONE button until phone logo). the word “PAIRING” blinks on the dis- play waiting for the bluetooth device 5. BT Audio (A2DP) to connect. -
Page 14: Basic Operation
RCD 212BTi • MANUAL Basic Operation 1. Tuning the unit On / Off 9. Fader Press and hold any Button to turn the Press SEL Button repeatedly until the unit on, the display will show a mes- display shows "FAD", then use the... -
Page 15: Radio Operation
RCD 212BTi • MANUAL Radio Operation 1. Choose Radio Band tions for each band. While listening to Press the MOD Button to access the a radio station you would like to save radio function. as a pre-set, press and hold one of the... -
Page 16: Rds Operation
RCD 212BTi • MANUAL Radio Operation (Cont) RDS Function different music types available. RDS ( Radio Date System) service Press the PTY button twice to show availability varies with areas. Please the speech type programme. Then understand if RDS service is not... - Page 17 RCD 212BTi • MANUAL Radio Operation (Cont) toggle between MASK DPI and MASK and hold the sound select button until ALL mode. Then leave the unit idle for “TA SEEK” is shown on the LCD, then the mode to take effect. During MASK...
-
Page 18: Cd/Mp3/Wma/Usb Operation
RCD 212BTi • MANUAL CD/MP3/WMA/USB/SD Operation 1. Insert / Eject CD will be shown on the display. Press Insert a disc into CD slot with label and hold SEEK >>| to fast forward. side up. The disc will be automatically Press the SEEK |<<... -
Page 19: Maintenance
RCD 212BTi • MANUAL CD/MP3/WMA/USB/SD Operation MAINTENANCE +/- Button to select the track number. Press and hold the SEL button for seconds,the number of the track is Cleaning the Unit assigned according to you added the Do not use any liquids to clean this file into the media. -
Page 20: Ipod Operation
RCD 212BTi • MANUAL IPOD Operation 1. Connect your IPOD Connect your IPOD with the original Ipod cable (supplied with the Ipod). This unit can play all the audio Ipod including Ipod Touch and Iphone. Ipad is not supported. 2. Play / Pause Once the unit has been connected, playback will start automatically. -
Page 21: Simple Troubleshooting Guide
RCD 212BTi • MANUAL Simple Troubleshooting Guide PROBLEM CAUSE/SOLUTION Check and make sure that the fuses did No Power not blow. Errors are displayed on the screen Unplug your car radio then plug it again or no function is active Check the connection of the antenna. -
Page 22: Specifications
RCD 212BTi • MANUAL Specifications GENERAL Operating Power............1 Volts DC, Negative Ground Speaker output..................4 speakers RCA line out................low-level outputs - 1V Output Impedance................4 to 8 Ohms Fuses........................10 A Dimensions............178mm(W) x 178mm(D) x 51mm (H) Weight.......................0 Kg CD PLAYER Signal / Noise Ratio..................>80dB Frequency Response.................0 Hz~0KHz... - Page 23 W WW. CaliB ER .nl CaliBER HEaD OffiCE • The Netherlands • Fax: +31 (0)416 69 90 01 • E-mail: info@caliber.nl...
