Chapter 1 Introduction

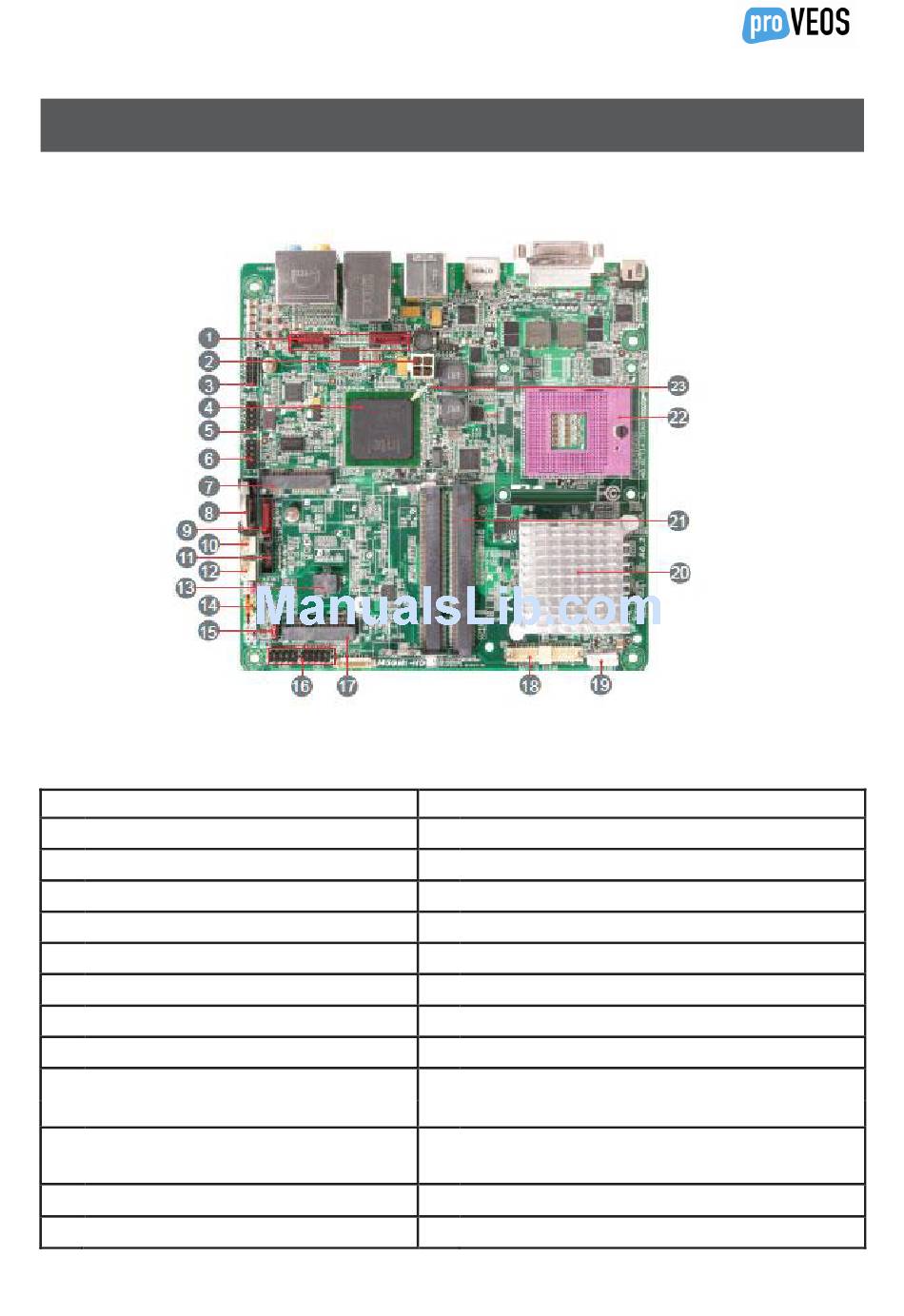

1.1 Board and I/O Layout
Table 1.1 Board Components
Item
01. S-ATAII Connector x 2
02. 4-pin DC Power output Connector
03. Front Audio Connector
04. Intel ICH9M
05. IEEE 1394 Connector
06. COM1
07. Mini Card Connector
08. Battery
09. S-ATAII Connector
10. SYSTEM Fan Connector
11. TV-Out Connector (Option)
12. CPU Fan Connector
Item
13. BIOS
14. Front Panel Connector
15. JP14 CMOS clear jumper
16. USB2.0 Connectors
17. Mini Card Connector
18. 24bits LVDS Connector(Option)
19. LVDS_INV Connector(Option)
20. Intel GM45
21. 200-pin SO-DIMM x 2,Support DDRII
667/800MHz
22. Socket P support Intel Penryn Qual
Core/Dual Core/Celeron CPU
23. Stand_by LED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the proVEOS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for wowvision proVEOS

Summary of Contents for wowvision proVEOS

  • Page 1: Chapter 1 Introduction

    Chapter 1 Introduction 1.1 Board and I/O Layout Table 1.1 Board Components Item Item 01. S-ATAII Connector x 2 13. BIOS 02. 4-pin DC Power output Connector 14. Front Panel Connector 03. Front Audio Connector 15. JP14 CMOS clear jumper 04.

  • Page 2: Rear I/O Ports

    1.2 Rear I/O Ports Figure 1.1 Board I/O Layout Table 1.2: Real I/O Item Item 01. 19V DC Adapter Connector 07. MIC In 02. DVI Port 08. Center/Subwoofer 03. HDMI Port 09. Speaker Out 04. E-SATA Port 10. Rear SUR(S/PDIF_Out) 05.
  • Page 3 Table 1.3: proVEOS Specifications Model proVEOS Socket P Intel® Penryn / Qual Core / Dual Core / Celeron (FSB 800/1066 MHz) Chipset Intel® GM45 / ICH9M Main Memory Dual Channel Mode Support SO-DIMM DDRII 667/800 MHz DDRII SO-DIMM x 2...

  • Page 4: System Block Diagram

    1.3 System Block Diagram Socket P PCI Bus Intel Merom Mini Card x 2 Penryn Chromtel LVDS 24 bit 7318 Connector (Option) 300MB/s 667/800 Serial ATA Port x 3 System Chromtel Connector 7318 Intel GM45 Chipset DDRII SO-DIMM x 2 Dual Channel DDRII 667/800 Intel...

  • Page 5: Chapter 2 Hardware Installation

    5. Connecting front Panel Cable 6. Installing Other Devices (USB, Front Audio, etc) 7. Connecting DC Adaptor 8. Connecting Back Panel Ports (Keyboard, Mouse, etc) 9. Turn on the power Button 10. Loading Default BIOS 11. Installing proVEOS 12. Configuring IP Address...

  • Page 6: Installing The Cpu

    2.2 Installing the CPU This socket supports uFCPGA package CPU, which is the latest CPU package developed by Intel. Other forms of CPU package are impossible to be fitted in. 1. Unscrew socket screw counter- clockwise. 2. Locate Pin 1 in the socket and look for a golden arrow on the CPU upper interface.
  • Page 7 Support CPU Table Processor Number Architecture Clock Speed Front Side Bus L2 Cache Intel Core 2 Duo (Penryn) CPU Core 2 Duo T9600 45nm 2.80 GHz 1066 MHz 6 MB Core 2 Duo T9400 45nm 2.53 GHz 1066 MHz 6 MB Core 2 Duo P9500 65nm 2.53 GHz...

  • Page 8: Installing Cpu Cooler

    2.3 Installing CPU Cooler 1. Remove the four screws of the CPU heatsink and take the bracket from heatsink. 2. Tear off the label from bracket for easily pasted on the bottom of main board. 3. Place bracket properly on the back side as picture. 4.

  • Page 9: Installing Cpu And System Fans

    2.4 Installing CPU and System Fans Plug the CPU fan cable to the CPU FAN connector. If you have a chassis fan, you can also plug it into the SYSFAN connector. +12V +12V Sensor Sensor SYSFAN Connector CPUFAN Connector Some fans do not have a sensor pin, so fan monitoring is not supported. Note:...

  • Page 10: Installing Memory Module

    2.5 Installing Memory Module The motherboard provide SODIMM type memory support. There’re two SODIMM memory slots which motherboard provided. The installation of memory module as below. 1. Put the memory module with correct direction. Notice there’s one stick to make sure direction is correct. 2.
  • Page 11 2.6 Installing SATA Cable The mother board provides three SATA connectors. Connect SATA cable to the on board SATA connector. You can find SATA cable in our package. (this is SATA signal cable) And please also connect 5V power connector with SATA power cable.

  • Page 12: Connecting Front Panel Cable

    2.7 Connecting Front Panel Cable Attach the power LED, speaker and reset switch connectors to the corresponding pins. If you enable “Suspend Mode” item in BIOS Setup, the ACPI & Power LED will keep fl ashing while the system is in suspend mode. Locate the power switch cable from your housing, which is a 2-pin female connector from the housing front panel.

  • Page 13: Connecting Usb

    2.8 Connecting USB 2.0 This motherboard provides eight USB 2.0 ports to connect USB devices such as mouse, keyboard, modem, printer, etc. There are four ports on the back panel. You can use proper cables to connect Front USB connector to USB modules or chassis front panel.

  • Page 14: Connecting Front Audio

    2.9 Connecting Front Audio If the chassis is designed with an audio port on the front panel, you’ll be able to connect onboard audio to the front panel through this connector. Please remove the jumper cap from the Front Audio Connector before you connect the cable.
  • Page 15 2.10 Connect COM1 Connector This motherboard provides one serial ports. COM1 is on the motherboard. with the proper cable, you can connect it to the back panel of chassis. Pin 1 DCD# SOUT DTR# RTS# CTS# COM1 Port...
  • Page 16 2.11 JP14 Clear CMOS Jumper You can clear CMOS to restore system default settings. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. 2. Locate JP14 and short pins 2-3 for a few seconds. 3.
  • Page 17 2.12 24 bits LVDS Connector (Option) The LVDS connector supports to connect LCD modules, you could follow below LVDS pin define to connect your LCD modules. Besides, we provide inveter output connector to connect back light of LCD modules. LVDS_DATA6 LVDS_DATA6- LVDS_DATA7- LVDS_DATA7...

  • Page 18: Channel Audio

    2.13 7.1 Channel Audio This motherboard comes with an Azalia (Realtek ALC888) codec, which supports the latest 7.1 Channel sound with high quality audio effects, bringing you an excellent audio experience. This motherboard provides 7.1 Channel ports as shown below. The diagram represents the standard location of all speakers for 7.1 Channel sound use.

  • Page 19: Gigabit Lan

    2.14 Gigabit LAN One of the strengths is the Intel Gigabit LAN controller on board, this mother board provides 10/100/1000Mbps Ethernet for office and home use. The Ethernet RJ45 connector is located above the USB connectors. The right hand side LED indicates link mode; it lights in yellow when linking to a network. The left hand side LED indicates the transfer mode and will light in green when data is transferring at 100Mbps (never lights while at 10Mbps), and will light in orange when transferring in Gigabit mode.
  • Page 20 2.15 e-SATA eSATA (external Serial ATA) is an external interface for SATA technologies. It competes with FireWire 400 and universal serial bus (USB) 2.0 to provide fast data transfer speeds for external storage devices. eSATA lets external drives communicate at the same speed as internal drives, so the technology would be welcome for those trying to back up digital photo archives or who need added capacity for storing digital music or recording video.
  • Page 21 2.16 HDMI The High-Definition Multimedia Interface (HDMI) is a compact audio/video con-nector interface for transmitting uncompressed digital streams. HDMI supports, on a single cable, any TV or PC video format, including standard, enhanced or high-definition video, plus multi-channel digital audio. Video support for CEA modes 480i/p,576i/p,720i/p,1080i/p HDCP support...
  • Page 22 2.17 DVI The Digital Visual Interface (DVI) is a video interface standard designed to maximize the visual quality of digital display devices such as flat panel LCD computer displays and digital projectors. You can connect the system to an LCD monitor , The video signal connector from LCD monitor connects to the DVI connector through a DVI cable .

  • Page 23: Chapter 5 Troubleshooting

    CPU frequency in BIOS) Save the changes you make in BIOS and reboot the system The problem maybe caused by Turn on the system again and re-connect the IDE cable. Check if the system can the IDE cables or HDD itself. reboot successfully Reinstall proVEOS...

  • Page 24: Chapter 6 Technical Support And Contact

    Chapter 6 Technical Support and Contact proVEOS Technical Support Team WOW Vision Pte Ltd 45 Ubi Road 1 Summit Building #05-03 Singapore 408696 Telephone: +65 6740 5678 Fax: +65 6749 7728 Email: support@wow-vision.com...
  • Page 25 BIOS Version BIOS version can be found when you enter to BIOS setting pattern. For example: 003 is BIOS version Register Your Motherboard You can find this bar code label on the outside packing or on the component side of the PCB. For example: S/N: 090331PV0001is the serial number.
