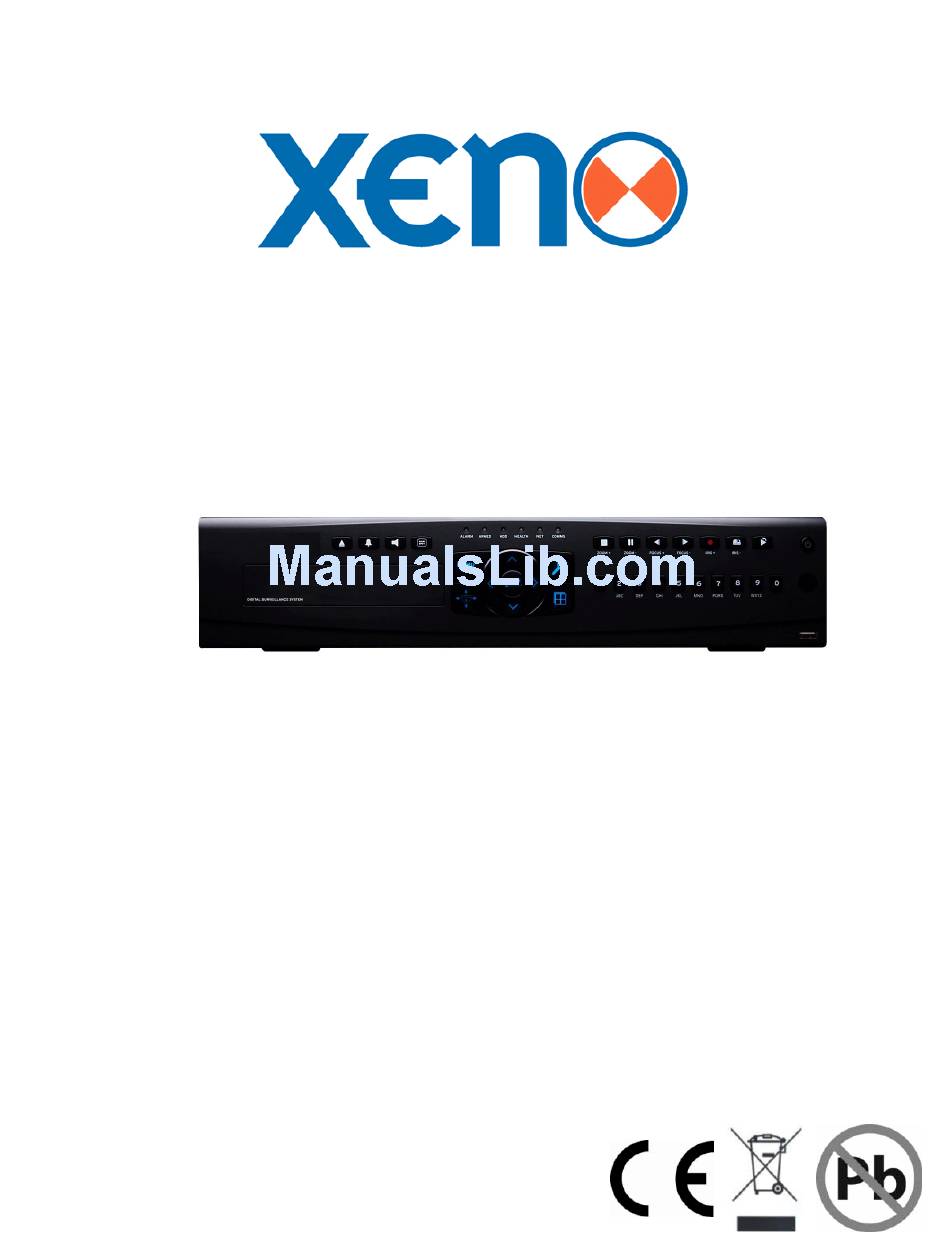

- Page 1 Xeno XDR5 real time DVRs Quick user guide...
- Page 2 Xeno XDR5 DVR manual V1.0...
- Page 3 Table of Contents Live View operation ..................................4 Playback ......................................5 Archiving recorded information to USB ..........................7 Xeno XDR5 real time DVRs quick user guide V1.0...
-
Page 4: Live View Operation
Go to play back mode ( see next section) Search: Goto Search menu Menu: Enter configuration menus Log off: Log out the current user Alarm cancel / panic Clear a current alarm or put DVR in Panic record mode Xeno XDR5 real time DVRs quick user guide V1.0... - Page 5 Pause reverse play/Reverse Pause play/ play/ Single- Play/ Single- Stop Speed up frame reverse frame play play Previous day Next day Hide Exit Video type Quick Playback all Process bar Archive Xeno XDR5 real time DVRs quick user guide V1.0...
- Page 6 To select other other dates, other cameras or multi screen views move the cursor to the right hand side of the screen, the menu option bar will appear as shown below: Xeno XDR5 real time DVRs quick user guide V1.0...
- Page 7 Click Yes to save video clips and enter Export interface, or click No to quit and do not save video clips. Export. Ensure a USB pen or drive is plugged into the XDR5, once detected it will show in the top line: Device name Ensure that as a minimum the Player box and Video Box are ticked Press Export button and start backup.
- Page 8 Norbain SD Ltd 210 Wharfedale Road IQ Winnersh Wokingham RG41 5TP +44 (0)118 912 5000 Xeno XDR5 real time DVRs quick user guide V1.0...
