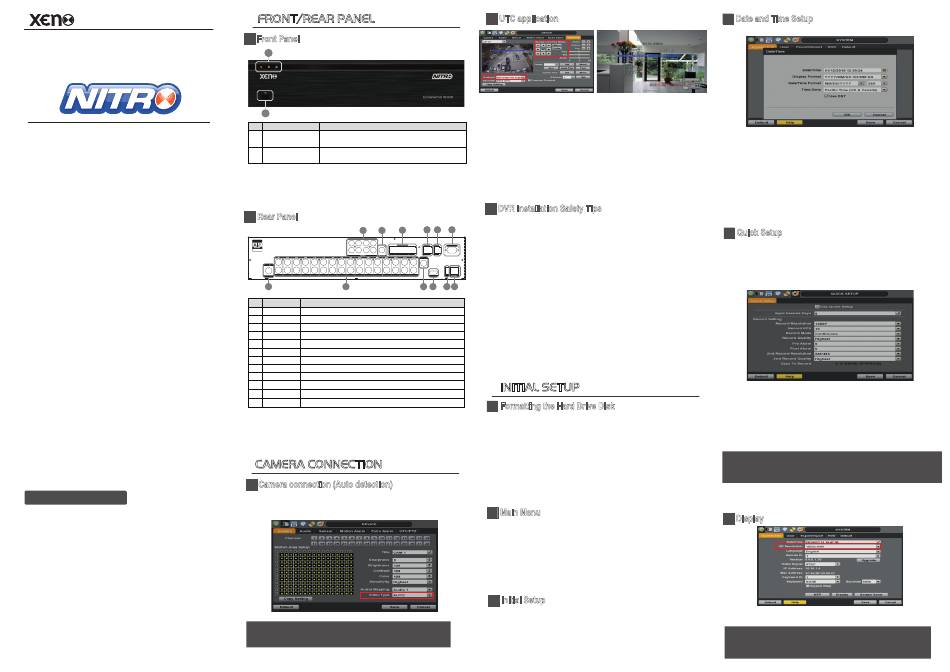

XENO Nitro XHDAR Quick Start Manual

Quick Start Guide

XHDAR
Quick guide
Please note that the Accessory kit and
Shipping Box contain the following items :
- Digital Video Recorder (1 ea)
- Power Supply (1 ea)
- Quick Start Guide (1 ea)
Default Login Information
(ID: Admin / No Password)
ATTENTION PLEASE !!!
This document is intended to serve as a quick
reference page for initial set-up.
It is recommended that the user read the entire
instruction manual before beginning.
Basic programming can be accomplished by
simply reading the appropriate instructions first,
then scroll through the easy to operate "On Screen
Display" and make changes.
1080P Digital Video Recorder
FRONT/REAR PANEL
Front Panel
1
2
Buttons Functions
No.
1 LED Indicator Indicate System Status Power, Record, Network
USB Port for Mouse Operation, Backup Device or
2 USB Port
Firmware Update
Rear Panel
1 2 3 4 5
MADE IN KOREA
ALARM I N ALARM OUT
1 2 3 4
RISK OF ELECTRIC
SHOCK / DO NOT OPEN
5 6 7 8
1 2 3 4 G 5 6 7 8 G 9 10 11 12 G 13 14 15 16 G C1NC1 NO1
SPOT OUT
12V
12 2
CH17 CH18 CH19 CH20 CH21 CH22 CH23 CH24 CH25 CH26 CH27 CH28 CH29 CH30 CH31 CH32
POWER
9
7 8
I/O Description
No.
1 Audio-In Audio Input Device (with Amplifier)
2 Audio-Out Audio Output Device (with Amplifier)
3 Sensor Input Sensor Input
4
Alarm Output Alarm Output
5
RS-485 Port PTZ Dome Camera or External Keyboard Controller connection
6 VGA VGA Output
7 Power Input 12V
8 Video-In Camera inputs (Supports NTSC/PAL)
9 SPOT SPOT Output
10
HD OUTPUT HD OUTPUT
11 USB 3.0 Port USB Port for Mouse Operation, Backup Device, or Firmware Update
12
LAN Port 1/10/100/1000M

CAMERA CONNECTION

Camera connection (Auto detection)
Automatically detect the cameras such as HD Analog and 960H.
(Set Video Type as AUTO)
Note: When Auto detection is not working well under improper
environment, select type of camera directly on Video Type.
UTC application
Connect camera which has UTC function and "V" check to
USE UTC/PTZ MENU and select proper protocol with camera.
Then MENU button is activated.
Click MENU button and set camera menu with direction key.
To use full screen Click the Menu icon in 'PTZ Control' tab in 'Show
Controller'
DVR Installation Safety Tips
1. Make sure the cameras and the monitors are properly connected to
6
the DVR.
2. The DVR should be placed in a dust and moisture free environment.
PTZ KBD VGA
It must never be exposed to direct sunlight. Server room temperature
C2NC2 NO2 + - + -
is highly recommended to reduce the chance of overheating.
Overheating may cause the DVR to become unstable.
HD OUTPUT USB 3.0 3. During the boot process, the DVR should not be interrupted by
10 11 12
pressing any buttons on the front keypad, mouse, or remote controller.
Do not unplug the power adapter or turn the DVR off during the boot
process.
A UPS (Uninterruptable Power Supply) is highly recommended to
prevent malfunctioning of the DVR during a power outage.

INITIAL SETUP

Formatting the Hard Drive Disk
After adjusting the time and date for the first time, it is highly
recommended to format your Hard Disk Drive.
1. Go to the System Menu and select the HDD submenu.
2. Select the Check box next to the HDDs.
3. Click the [HDD Clear] button.
4. When the HDD formatting is complete, exit the main menu and
reboot the DVR to save all changes.
Main Menu
The Main Menu (Setup Menu) system includes six (6) sub-menus:
System, Device, Record, Network, Backup, & Q. Setup. To access the
Setup Menu, press the [Menu] button on the front panel of the DVR,
or right-click anywhere on the screen and select 'Setup Menu'.
The DVR's default user ID and password are: admin/ no password.
Initial Setup
When all necessary cameras and monitors are setup in their permanent
locations, connect them to the DVR.
Use the diagram in the Quick Start Guide and manual for additional
information. When all connections have been made, connect the DVR to
an appropriate power supply. The DVR will boot up automatically.
Date and Time Setup
1. Go to the System Menu and select SYSTEM INFO.
Click on the pencil icon next to the Date/ Time to enter edit mode.
2. Select the appropriate display format from the [DATE/TIME FORMAT]
drop down lists.
3. Select the appropriate date and local time in the [DATE/ TIME] section.
4. Select the appropriate time zone from the [TIME ZONE] drop down list.
5. If applicable, enable Daylight Savings mode.
Quick Setup
The Quick Setup Menu offers an automatic recording and HDD calculator.
By entering your anticipated recording days, or the desired recording
resolution, the DVR will provide you with the estimated days recorded
on your current HDD space.
1. Select how many days you wish to record on your current storage.
The system will populate recommended recording resolution,
frame-rate, and quality.
2. Select the desired recording specifications.
The system will display the number of days that will be recorded on
your available storage.
Note: To manually setup recording configurations, Quick Setup must be
DISABLED. If the "Use Quick Setup" option is enabled, the system will
ignore all other configurations set manually.
Display
HD resolution can be set by maximum 4K (3840X2160)
Note: 4K resolution is only available when 4K monitor is connected.
If it is set to 4K (3840X2160) resolution without connection of 4K
monitor, it is returned to previous resolution after 30sec screen out.
