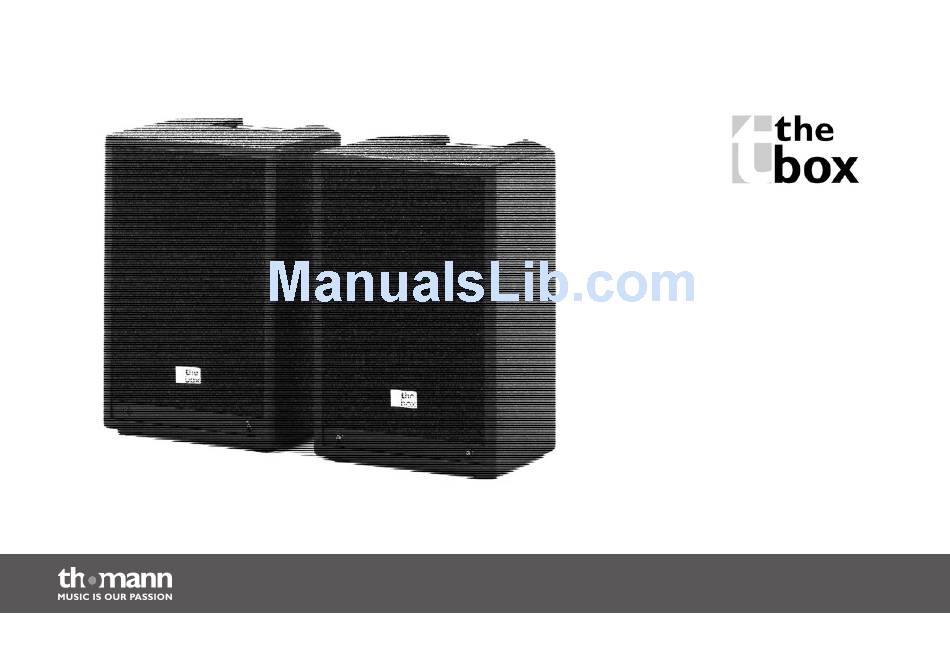

- Page 1 CL 106 / CL 108 TOP passive full-range speaker user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 08.08.2014, ID: 109894...
-
Page 3: Table Of Contents
Table of contents General notes............................... 4 Safety instructions............................. 7 Features................................9 Installation..............................10 4.1 Tips on handling speakers......................13 4.2 Connections............................14 Technical specifications........................15 Pin and connection assignments..................... 16 Protecting the environment......................17 CL 106 / CL 108 TOP... -
Page 4: General Notes
General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual. - Page 5 NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. CL 106 / CL 108 TOP...
- Page 6 General notes Warning signs Type of danger Warning – high-voltage. Warning – suspended load. Warning – danger zone. passive full-range speaker...
-
Page 7: Safety Instructions
Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. CL 106 / CL 108 TOP... - Page 8 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
-
Page 9: Features
Features Features Special features of this powerful and compact full-range speaker boxes: Connections: NL4 sockets (1+/1–) Treble boost 36 mm pole mount flange Steel handle for transport CL 106 / CL 108 TOP... -
Page 10: Installation
Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 11 NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. CL 106 / CL 108 TOP...
- Page 12 Installation NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. passive full-range speaker...
-
Page 13: Tips On Handling Speakers
If you notice distortion during operation, either the amp or the speaker is overloaded. This may permanently damage the amp or the speaker. Always reduce the volume when you hear dis‐ tortion. CL 106 / CL 108 TOP... -
Page 14: Connections
Installation 4.2 Connections 1 Slider switch for level increase by +3 dB above 5 kHz 2 NL4 connector for connection to an amplifier passive full-range speaker... -
Page 15: Technical Specifications
Technical specifications Technical specifications CL 106 TOP (item no. 109894) CL 108 TOP (item no. 109895) System 2-way full-range speaker Speakers 6.5" woofer, 1" compression driver 8" woofer, 1" compression driver Power handling 100 W (RMS), 150 W (RMS) when con‐... -
Page 16: Pin And Connection Assignments
Pin and connection assignments Pin and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... -
Page 17: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. CL 106 / CL 108 TOP... - Page 18 Notes passive full-range speaker...
- Page 20 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
