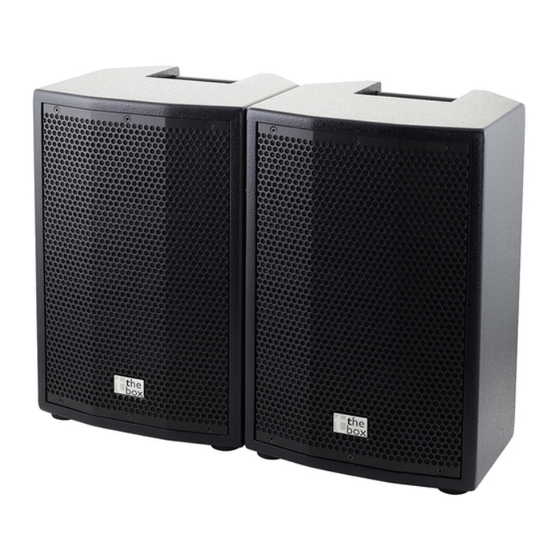

- Page 1 CL 106 Top MK II, CL 108 Top MK II, CL 110 Top MK II Passive Speaker...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 25.09.2024, ID: 341318, 344380, 341321 (V2)
- Page 3 Table of contents Table of contents General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 7 Features................................9 Installation..............................10 4.1 Tips on handling speakers......................12 Connections and controls........................13 Technical specifications........................14 Plug and connection assignment....................19 Protecting the environment......................
- Page 4 CL 106 Top MK II, CL 108 Top MK II, CL 110 Top MK II Passive Speaker...
- Page 5 Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document.
- Page 6 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
- Page 7 Safety instructions Safety instructions Intended use This device is designed for sound reinforcement. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
- Page 8 Safety instructions WARNING! Possible hearing damage due to operating the device at a high volume! The device can produce volume levels that, when operated at a high volume, may cause temporary or permanent hearing impair‐ ment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Avoid operating the device at excessively high volumes over an extended period of time.
- Page 9 Features Features Special features of these powerful and compact full-range speakers: Connection: 1 × NL4 socket (1+/1–) Increasable tweeter level 36 mm pole mount flange Steel handle for transport CL 106 Top MK II, CL 108 Top MK II, CL 110 Top MK II Passive Speaker...
- Page 10 Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
- Page 11 Installation NOTICE! Possible property damage to adjacent devices due to magnetic fields. Speakers generate a static magnetic field. This magnetic field can affect other neighbouring units and in unfavourable cases damage them. Ensure that speakers are always a sufficient distance away from sensitive equip‐ ment that may be affected by an external magnetic field.
- Page 12 Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area.
- Page 13 Connections and controls Connections and controls ö # ö # ö # TWEETER +3dB TWEETER +3dB TWEETER +3dB LEVEL LEVEL LEVEL CL 106 CL 108 CL 110 TOP MKII TOP MKII TOP MKII POWER HANDLING: 100 W RMS POWER HANDLING: 150 W RMS POWER HANDLING: 150 W RMS...
- Page 14 Technical specifications Technical specifications CL 106 Top MK II CL 108 Top MK II CL 110 Top MK II (item no. 341318) (item no. 344380) (item no. 341321) Configuration 1 × 6.5-inch bass speaker, 1 × 8-inch bass speaker, 1 × 10-inch bass speaker, 1 ×...
- Page 15 Technical specifications CL 106 Top MK II CL 108 Top MK II CL 110 Top MK II (item no. 341318) (item no. 344380) (item no. 341321) Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) Further information CL 106 Top MK II CL 108 Top MK II CL 110 Top MK II (item no.
- Page 16 Technical specifications Frequency response (item no. 341318) CL 106 Top MK II, CL 108 Top MK II, CL 110 Top MK II Passive Speaker...
- Page 17 Technical specifications Frequency response (item no. 344380) CL 106 Top MK II, CL 108 Top MK II, CL 110 Top MK II Passive Speaker...
- Page 18 Technical specifications Frequency response (item no. 341321) CL 106 Top MK II, CL 108 Top MK II, CL 110 Top MK II Passive Speaker...
- Page 19 Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’...
- Page 20 Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These materials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
- Page 21 When disposing of the device, comply with the rules and regulations that apply in your country. You can also return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de.
- Page 22 Notes CL 106 Top MK II, CL 108 Top MK II, CL 110 Top MK II Passive Speaker...
- Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
