thomann fun generation CL 105 A User Manual

Hide thumbs Also See for fun generation CL 105 A:
Table of Contents

Advertisement

Quick Links

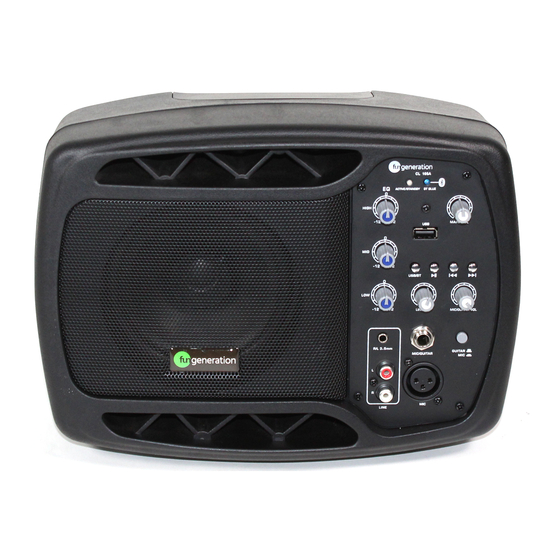

CL 105 A
active speaker
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the fun generation CL 105 A and is the answer not in the manual?

Questions and answers

Related Manuals for thomann fun generation CL 105 A

Summary of Contents for thomann fun generation CL 105 A

  • Page 1 CL 105 A active speaker user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 14.02.2019, ID: 437402 (V3)

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 14 Installation..............................15 4.1 Tips on handling speakers......................16 Connections and controls........................17 Technical specifications........................

  • Page 4: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. active speaker...

  • Page 5: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 6: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.

  • Page 8: Safety Instructions

    Safety instructions Safety instructions Intended use This device is designed as a PA system. The device is designed for professional use only and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage.
  • Page 9 Safety instructions DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
  • Page 10 Safety instructions DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician.
  • Page 11 Safety instructions NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. CL 105 A...
  • Page 12 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specified in the chapter ‘Technical specifications’...
  • Page 13 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.

  • Page 14: Features

    Features Features Special features of the device: 5" full-range driver Built-in 150 W class D power amp 3-band equalizer Mic / line and AUX inputs Standby function Bluetooth and USB interface active speaker...

  • Page 15: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.

  • Page 16: Tips On Handling Speakers

    Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area.

  • Page 17: Connections And Controls

    Connections and controls Connections and controls CL 105 A...
  • Page 18 Connections and controls 1 [Active/Standby] This LED lights green during normal operation. If there is no signal input at the [MIC/GUITAR] jack for 30 minutes and the standby function is activated, the device will enter standby mode and the LED lights red. 2 [BT Blue] Indicator LED for the Bluetooth pairing The LED flashes when the Bluetooth function is enabled.
  • Page 19 Connections and controls 9 [MIC/GUITAR VOL] Control to adjust the level for the instrument and microphone input 10 [LINE VOL] Control to adjust the signal input line level 11,12,13 [HIGH], [MID], [LOW] 3-band EQ with high, mid and low frequency controls (boost / attenuation by ±12 dB 14 [GUITAR / MIC] Toggles the sensitivity of the instrument and microphone input [MIC/GUITAR].
  • Page 20 Connections and controls 19 [R/L 3.5mm] Line input, designed as 3.5 mm phone socket 20 [STANDBY ENABLE | DISABLE] When the switch is in the position [ENABLE], the device will turn off after approx. 30 minutes without input signal. To turn it then back on again, switch [POWER] off an on again.

  • Page 21: Technical Specifications

    Technical specifications Technical specifications Speaker 1 × 5" full-range driver Class-D power amplifier Input connections Line in 1 × 3.5 mm jack socket 1 × RCA socket Mic in 1 × 1/4" jack socket 1 × XLR chassis socket USB port Voltage supply IEC chassis plug C14 Output connections...
  • Page 22 Technical specifications Sound pressure level (SPL), max. 92 dB Supply voltage 230 V 50 Hz Fuse 5 mm × 20 mm, 1 A, 250 V, slow-blow Dimensions (W × H × D) 215 mm × 250 mm × 335 mm Weight 4.5 kg Ambient conditions...
  • Page 23 Technical specifications Further information Multifunction housing Configuration of the woofers 1 × 5" Tweeter 1” and larger Microphone input Line input Bluetooth CL 105 A...
  • Page 24 Technical specifications Frequency response active speaker...

  • Page 25: Plug And Connection Assignment

    Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’...
  • Page 26 Plug and connection assignment Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding 1/4"...
  • Page 27 Plug and connection assignment XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) RCA connection Drawing and table indicate the pin assignment of an RCA plug. Signal Ground, shielding CL 105 A...

  • Page 28: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 29 Notes CL 105 A...
  • Page 30 Notes active speaker...
  • Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
