Summary of Contents for thomann The box TA12
- Page 1 TA12 full-range-speaker user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 25.10.2019, ID: 191412 (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 9 Features............................... 15 Installation..............................16 4.1 Tips on handling speakers......................18 Connections and operating elements................... 19 Technical specifications........................ -
Page 4: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. full-range-speaker... -
Page 5: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
- Page 8 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. full-range-speaker...
-
Page 9: Safety Instructions
Safety instructions Safety instructions Intended use This device is designed for sound reinforcement. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 10 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
- Page 11 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
- Page 12 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specified in the chapter ‘Technical specifications’...
- Page 13 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
- Page 14 Safety instructions NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. full-range-speaker...
-
Page 15: Features

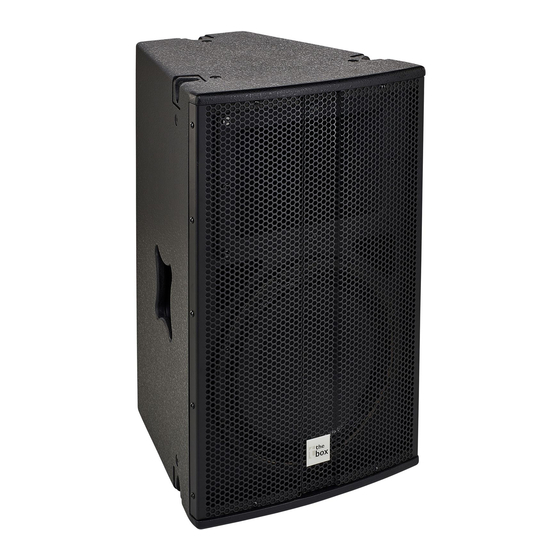

Features Features Special features of the device: Speakers: 1 × 12-inch woofer, 1 × 1.4-inch tweeter Transmission range: 60 Hz – 16 kHz 35 mm flange on the bottom side for stand Optional infrared remote control (item no. 222249) TA12... -
Page 16: Installation
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 17 Installation CAUTION! Risk of injury due to heavy weight Due to the heavy weight of the device, at least two persons are required for trans‐ port and installation. NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field.
-
Page 18: Tips On Handling Speakers
Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area. -
Page 19: Connections And Operating Elements
Connections and operating elements Connections and operating elements 1 [VOLUME] Volume control for the input. Turn this control clockwise to increase the volume. decrease the volume by rotating counter-clockwise. First please adjust the volume to minimum before switching the unit on or making connections. Then adjust the appropriate volume. - Page 20 Connections and operating elements 5 [LINE/MIC] Switches input sensivity for microphone or LINE signals. As soon as the signals get microphone level, deeply push the control with a pen. For safety reasons, it only snaps in then. Do not push the control when the signals got LINE level. 6 [115 V / 230 V] Power supply switch Make sure this selector is set correctly for the actual supply voltage at the operating location.
- Page 21 Connections and operating elements 10 [OUTPUT] If you use multiple TA12 speaker boxes, you can supply the input of the next box with the signal of this output. 11 [INPUT] Connect to supply mains power. 12 IEC plug Make sure that the mains control (6) ist in the right position, BEFORE connection power supply.
-
Page 22: Technical Specifications
Technical specifications Technical specifications Speaker 1 × 12" woofer 1 × 1.4" tweeter Input connections Power supply IEC chassis plug C14 Signal input 1 × XLR chassis socket Input impedance balanced: 20 kΩ, unbalanced: 10 kΩ Output connections Signal output 1 ×... - Page 23 Technical specifications Power consumption 800 W Supply voltage 115/230 V 50/60 Hz Fuse Supply voltage 230 V: 5 mm × 20 mm, 5 A, 250 V, slow-blow Supply voltage 115 V: 5 mm × 20 mm, 8 A, 250 V, slow-blow Dimensions (W ×...
-
Page 24: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 25 Plug and connection assignment Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) TA12...
- Page 26 Plug and connection assignment XLR plug (unbalanced) Ground, shielding Signal Bridged to pin 1 full-range-speaker...
-
Page 27: Cleaning And Care
Cleaning and care Cleaning and care Housing Use only pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth. TA12... -
Page 28: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 29 Notes TA12...
- Page 30 Notes full-range-speaker...
- Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
