SK1024U3SD
Monochrome Line Scan Camera
1024 pixels, 14 µm x 14 µm, 30 / 15 MHz pixel frequency
Instruction Manual
10.2014
Sample Configuration
1
CCD line scan camera
SK1024U3SD
mounted with
2
Mounting bracket SK5105
3
Clamping claws SK5102
4
Video (CCTV)-objectiv
Read the manual carefully before the initial start-up. For the content table refer to 2.
The producer reserves the right to change the herein described specifications in case of technical advance of the product.
Kieler Str. 212, 22525 Hamburg, Germany
Tel: +49 40 85 39 97- 0
Fax: +49 40 85 39 97-79
•
•
USB
• Robust cable connections
• Hot-pluggable
• Perfect for movable setups
3
1
2
info@SuKHamburg.de
•
3.0
4
www.SuKHamburg.de
•
Advertisement
Table of Contents
Related Manuals for Schäfter+Kirchhoff SK1024U3SD
Summary of Contents for Schäfter+Kirchhoff SK1024U3SD
-
Page 1: Instruction Manual

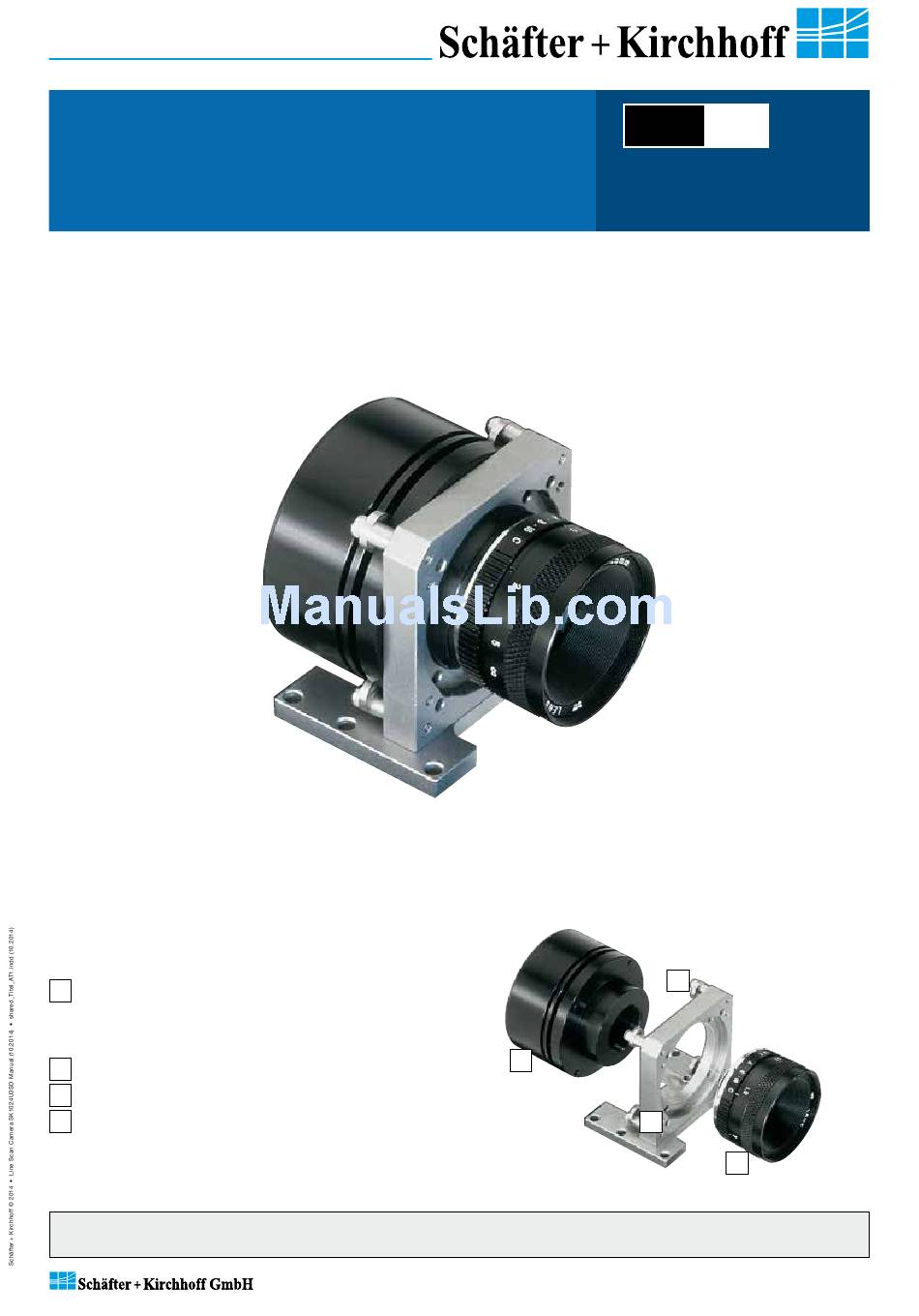

SK1024U3SD • Robust cable connections Monochrome Line Scan Camera • Hot-pluggable • Perfect for movable setups 1024 pixels, 14 µm x 14 µm, 30 / 15 MHz pixel frequency Instruction Manual 10.2014 Sample Configuration CCD line scan camera SK1024U3SD mounted with... -
Page 2: Table Of Contents
1.1 Intended Purpose and Overview ....................3 1.2 System Setup at a Glance ......................3 1.3 Computer System Requirements ....................4 1.4 SK1024U3SD Line Scan Camera - Specifications ..............4 2 Installation and Setup ....................5 2.1 Mechanical Installation: Mounting Options and Dimensions ............. 5 Electrical Installation: Connections and I/O Signals .............. -
Page 3: Introduction
PC. and scientific environments. The SK1024U3SD is lightly ® The oscilloscope display in the SkLineScan program can... -
Page 4: Computer System Requirements
USB 3.0 interface. With a USB 2.0 interface, there are performance limitations, see footer *. • High-performance video card, PCIe bus • Operating System Windows 7 (64 or 32-bit) • CD/DVD drive for software installation 1.4 SK1024U3SD Line Scan Camera - Specifications Sensor category CCD Monochrome Sensor Sensor type IL-P3-1024 Pixel number 1024 Pixel size (width x height) 14 x 14 µm... -
Page 5: Installation And Setup
Set of 4 pcs. clamping claws incl. screws Hex socket head screw DIN 912–M3 x 12 Mounting system SK5105-2 for cameras with a tube extension > 52 mm 31.5 25 10 Ø4.3 © 2014 SK1024U3SD Instruction Manual (10.2014) Schäfter + Kirchhoff GmbH • Hamburg... -
Page 6: Electrical Installation: Connections And I/O Signals
Electrical Installation: Connections and I/O Signals • The USB 3.0 interface provides data transfer, camera control and power supply capabilities to the SK1024U3SD line scan camera. If you want to operate the camera in Free Run (SK Mode 0) trigger mode the USB 3.0 cable is the only connection you have to make. -
Page 7: Software Installation
USB 2.0 connector or from an unsuitable the connected line scan camera. If necessary shut cable. down the program, disconnect the camera and wait © 2014 SK1024U3SD Instruction Manual (10.2014) Schäfter + Kirchhoff GmbH • Hamburg... -
Page 8: Camera Control And Performing A Scan
Start the SkLineScan program. The SkLineScan program recog nizes the connected line scan cameras automatically. • If the SK1024U3SD camera is identified correctly • The most common functions of the line scan camera confirm with "OK". The "Signal window" graphicaly can be controlled by dialog boxes. -
Page 9: Basic Visualization Of The Sensor Output
The signal window can be split horizontally into two sections. Use the split handle at the top of the vertical scroll bar and afterwards arrange the frames with the zoom buttons in the toolbar. Split signal window. The upper frame shows a magnified section of the lower frame. © 2014 SK1024U3SD Instruction Manual (10.2014) Schäfter + Kirchhoff GmbH • Hamburg... -
Page 10: Adjustments For Optimum Scan Results
Optimum focus: dark-bright transitions are sharp Out of focus: edges are indistinct, signal peaks edged, highly modulated signal peaks with high blurred with low density modulation frequency density variations © 2014 SK1024U3SD Instruction Manual (10.2014) Schäfter + Kirchhoff GmbH • Hamburg... -
Page 11: Sensor Alignment
Gain slider 1. Adjust channel 1 zero level and minimize diffe- rence between channels using Offset slider Offset and gain adjustment for more than one gain/offset channel © 2014 SK1024U3SD Instruction Manual (10.2014) Schäfter + Kirchhoff GmbH • Hamburg... -
Page 12: Shading Correction
SCM of the camera. If the load process completes then the Shading Correction is active. After shading correction, the line scan signal has a homogeneous intensity at 255 (8 bit, Maximum 100%) © 2014 SK1024U3SD Instruction Manual (10.2014) Schäfter + Kirchhoff GmbH • Hamburg... -
Page 13: Integration Time
4, to 95% of the available scale. • For synchronization settings see Synchronization of the Imaging Procedure and the Object Scan Velocity, p. 16. © 2014 SK1024U3SD Instruction Manual (10.2014) Schäfter + Kirchhoff GmbH • Hamburg... -
Page 14: Synchronization Of The Imaging Procedure And The Object Scan Velocity
Pixel width = 14 µm 800 mm/s · (14.3 mm / 30 mm) Object scan velocity = 800 mm/s 14 µm = 14.3 mm 27.2 kHz = 30 mm © 2014 SK1024U3SD Instruction Manual (10.2014) Schäfter + Kirchhoff GmbH • Hamburg... - Page 15 Each single line scan is triggered by the falling edge of a TTL signal supplied to LINE SYNC A input. The SK1024U3SD line scan camera facilitates advanced synchronization control by a second trigger input LINE SYNC B. For a detailed description see 4.2 Advanced Synchronization Control, p. 18...
-
Page 16: Advanced Sklinescan Software Functions
Gain/Offset Control dialog: Camera Control input and output in the right section © 2014 SK1024U3SD Instruction Manual (10.2014) Schäfter + Kirchhoff GmbH • Hamburg... -
Page 17: Set Commands
4 Advanced SkLineScan Software Functions Set Commands Request Commands Set Operation Description Request Return Description Goooo<CR> gain setting 0-24 dB K<CR> SK1024U3SD returns SK type number R<CR> Rev1.08 returns revision number Oppp<CR> offset setting 0-255 S<CR> SNr00163 returns serial number I<CR>... -
Page 18: Advanced Synchronization Control
D6 = LINE SYNC A xxxxxx11 internal line counter (bit 7 ... 0) D5 = LINE SYNC B D4 ... D0 = line counter (bit 12 ... 8) © 2014 SK1024U3SD Instruction Manual (10.2014) Schäfter + Kirchhoff GmbH • Hamburg... -
Page 19: Example Timing Diagrams Of Advanced Synchronization Control
Sync Control Register: '11100xxx'b • Trigger on 4 edges of SyncA and SyncB • direction detection = on • hysteresis = 4 Sync Control Register: '11101xxx'b machine holdup oscillation © 2014 SK1024U3SD Instruction Manual (10.2014) Schäfter + Kirchhoff GmbH • Hamburg... -
Page 20: Sensor Information
5 Sensor Information 5 Sensor Information Manufacturer: DALSA Corp. Type: IL-P3-1024 Data source: DALSA Line Scan Sensors, Document 03-036-00187-09 Pin Functional Description Block Diagram © 2014 SK1024U3SD Instruction Manual (10.2014) Schäfter + Kirchhoff GmbH • Hamburg... -
Page 21: Typical Performance Data And Sensor Specifications
5 Sensor Information Typical Performance Data and Sensor Specifications © 2014 SK1024U3SD Instruction Manual (10.2014) Schäfter + Kirchhoff GmbH • Hamburg... -
Page 22: Glossary
line frequency Pixel frequency The pixel frequency for an individual sensor is the rate of charge transfer from pixel to pixel and its ultimate conversion into a signal. © 2014 SK1024U3SD Instruction Manual (10.2014) Schäfter + Kirchhoff GmbH • Hamburg... -
Page 23: Ce-Conformity
Schäfter + Kirchhoff GmbH Kieler Straße 212 22525 Hamburg Germany Tel. +49 40 853 997-0 +49 40 853 997-10 Email info@SuKHamburg.de Internet www.SuKHamburg.de © 2014 Schäfter + Kirchhoff GmbH © 2014 SK1024U3SD Instruction Manual (10.2014) Schäfter + Kirchhoff GmbH • Hamburg... -
Page 24: Accessories And Spare Parts
Accessories and Spare Parts Mounting bracket SK5105 Order Code Warp-resistant construction for mounting the line scan camera Clamp set SK5102 Order Code to lock the line scan camera in a desired position (set of 4) Mounting console SK5105-2 Order Code for indirect mounting of the line scan camera via the extension tube, suitable for an extension tube larger than 50 mm, for example with a macro lens.
