SK512CSH

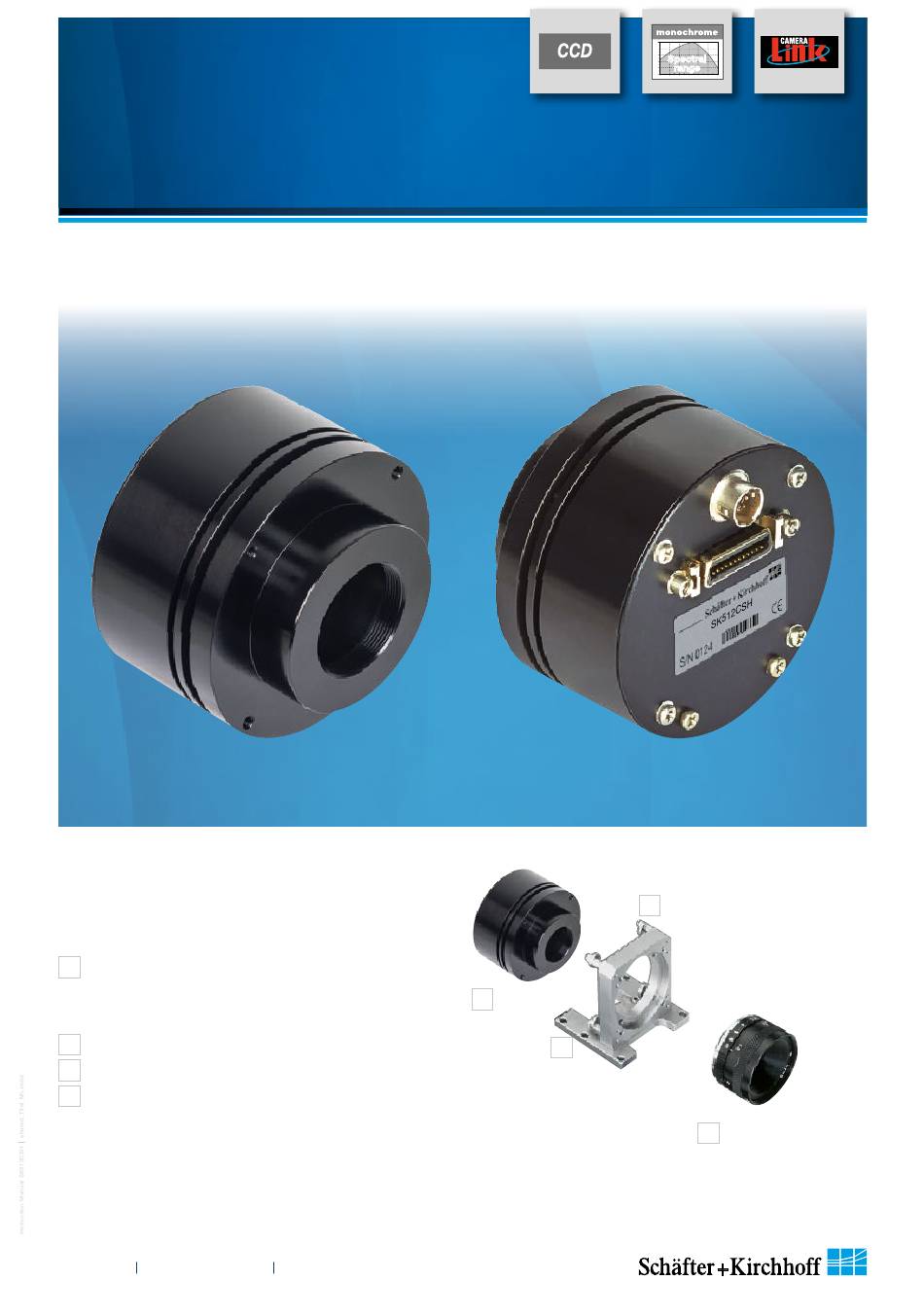

Monochrome Line Scan Camera
512 pixels 14 x 14 µm², line frequency up to 35.70 kHz
Instruction Manual
Sample Configuration
1
CCD line scan camera
SK512CSH
mounted with
2
Mounting bracket SK5105
3
Clamping claws SK5102
4
Video (CCTV)-objectiv
© 2020-11 E
info@SuKHamburg.de
www.SuKHamburg.com
3
1
2
1.0
Spectral
range
0.0
400
600
800
1000
Wavelength (nm)
4
Advertisement
Table of Contents
Related Manuals for Schäfter+Kirchhoff SK512CSH
Summary of Contents for Schäfter+Kirchhoff SK512CSH
- Page 1 SK512CSH Spectral range 1000 Wavelength (nm) Monochrome Line Scan Camera 512 pixels 14 x 14 µm², line frequency up to 35.70 kHz Instruction Manual Sample Configuration CCD line scan camera SK512CSH mounted with Mounting bracket SK5105 Clamping claws SK5102 Video (CCTV)-objectiv ©...
-
Page 2: Table Of Contents
Contents Contents How to Use this Instruction Manual Safety Warnings Introducing the SK512CSH Line Scan Camera ��������������������������������������������������� Intended Purpose and Overview Computer System Requirements SK512CSH Line Scan Camera - Specifications Installation and Setup ������������������������������������������������������������������������������� Mechanical Installation: Dimensions, Mounting Options, and Heat Dissipation... -
Page 3: How To Use This Instruction Manual
According to the application, laser or high power LED light sources might be used. These can affect your eyesight temporarily or even cause permanent damage to the eyes or skin. Do not look directly into the light beam! Instruction Manual SK512CSH © 2020-11 E... -
Page 4: Introducing The Sk512Csh Line Scan Camera
Introducing the SK512CSH Line Scan Camera Introducing the SK512CSH Line Scan Camera Intended Purpose and Overview The SK line scan camera series is designed for a wide Normally, functions like Shading Correction, signal range of vision and inspection applications in both modification with a look-up table (LUT) or the definition industrial and scientific environments. -
Page 5: Computer System Requirements
Introduction Computer System Requirements The SK512CSH is compliant with CameraLink Along with the camera the Schäfter + Kirchhoff confi- guration program SkCLConfig is delivered. Provided Specification Rev 1.1. It is operated in the "Base Confi- guration" where the signals are carried over a single a clser**.dll driver by the grabber board manufacturer... -
Page 6: Installation And Setup
Clamping set SK5102 Ø 4.3 Set of 4 pcs. clamping claws incl. hex socket screws (EN ISO 4762–M3x12) Mounting system SK5105-2 for cameras with a tube extension > 52 mm 31.5 25 10 Ø4.3 Instruction Manual SK512CSH © 2020-11 E... -
Page 7: Electrical Installation: Connections And I/O Signals
Electrical Installation: Connections and I/O Signals • For the SK512CSH line scan camera data transfer and camera control is provded by the Camera Link interface 2 . Use a control cable SK9018..to connect the camera with the frame grabber card in the PC. -
Page 8: Interface And Camera Control
TxCLK Tx16 LVAL Tx24 Tx17 Tx12 Tx18 Tx10 Tx19 Tx11 Tx20 Tx27 Tx13 Tx21 Tx14 Tx22 Bit allocation 8-bit data: D[0-7], Serial command: F8 The bit allocation conforms to the CameraLink Standard basic configuration. Instruction Manual SK512CSH © 2020-11 E... - Page 9 RS232 protocol for asynchronous communication: – full duplex, no handshake – 9600 baud, 8-bit, no parity bit, 1 stop bit. Block Diagram of Camera Link Base Configuration Instruction Manual SK512CSH © 2020-11 E...
- Page 10 D[0-11] Shading Look Up Output (monochrome cameras) Port A, B, C Conver- Correc- Table Format video R[0-7], G[0-7], B[0-7] Camera Link tion (LUT) (RGB cameras) Select Base Logical Diagram of the Camera Control System Instruction Manual SK512CSH © 2020-11 E...
-
Page 11: Control Signals And Timing Diagram
'Free Run' mode by using command 'M0'. When the The SK512CSH camera requires 816 clock pulses for a SOS signal is generated by the grabber board then line scan to be read out completely. This corresponds... -
Page 12: Advanced Camera Control Functions
The parameter settings are stored in the non-volatile flash memory of the camera and are available after a rapid start-up, even after a complete shut down or loss of power. Gain/Offset Control dialog: Camera Control input and output in the bottom left section Instruction Manual SK512CSH © 2020-11 E... -
Page 13: Set Commands
= 0 ... 1023 = 0 ... 255 Acknowledgement for all set commands: xxxx = 4 digits integer value as ASCII 0 = OK, 1 = not OK yyyyy = 5 digits integer value as ASCII Instruction Manual SK512CSH © 2020-11 E... -
Page 14: Synchronization Of The Image Acquisition With The Feed Rate Of The Object
Calculating the line frequency for a given field of view and object scan velocity: Pixel width = 14 µm 1300 mm/s · (7.17 mm / 20 mm) Scan velocity = 1300 mm/s 14 µm = 7.17 mm = 20 mm 33.3 kHz Instruction Manual SK512CSH © 2020-11 E... -
Page 15: Adjustments For Optimum Scan Results
• Dark-bright transitions with steep edges • Signal peaks are blurred • Large modulation in the signal peaks • High spatial frequencies with low modulation depth • High spatial frequencies with high modulation depth Instruction Manual SK512CSH © 2020-11 E... -
Page 16: Sensor Alignment
Offset and gain 1. Adjust the zero level of adjustment channel 1. Minimize the difference between the for more than channels using the other one gain/ Offset controls. offset channel Instruction Manual SK512CSH © 2020-11 E... - Page 17 Instruction Manual SK512CSH © 2020-11 E...
-
Page 18: Sensor Information
1024 pixels, pixel size: 14 x 14 µm • High CCD node sensitivity: 13 µV/e typ. • Readout speed: 40 MHz max. • Anti-blooming function • Built-in electronic shutter b) Device Structure (conceptual drawing) Instruction Manual SK512CSH © 2020-11 E... - Page 19 Spectral Response (without window, typical example) Spectral response with quartz glass is decreased according to the spectral transmittance characteristics of window material. d) Spectral Transmittance Characteristics of Window Material e) Electrical and Optical Characteristics (Ta = 25°C) Instruction Manual SK512CSH © 2020-11 E...
-
Page 20: Glossary
Synchronization of the Imaging Procedure and the The optical resolution of the line sensor is primarily Object Scan Velocity, section 3.2 determined by the number of pixels and secondarily by their size and spacing, the inter-pixel distance. Currently Instruction Manual SK512CSH © 2020-11 E... -
Page 21: Warranty
Instruction Manual may differ in detail from the system actually supplied. The Instruction Manual is not covered by an update service. Date of document publication: 09.11.2020 Schäfter+Kirchhoff GmbH Tel.: +49 40 853 997-0 Kieler Straße 212 Fax: +49 40 853 997-79 22525 Hamburg Email: info@SuKHamburg.de Germany Internet: www.SuKHamburg.com Instruction Manual SK512CSH © 2020-11 E... -
Page 22: Accessories
Extension rings L-Mount (M39x1/26" Leica) attachment threads M39x1/26" male/female ZR 10 Order Code 10 = Length 10 mm 15 = Length 15 mm 20 = Length 20 mm Ø42 f8 L= Length 50 = Length 50 mm Instruction Manual SK512CSH © 2020-11 E...
