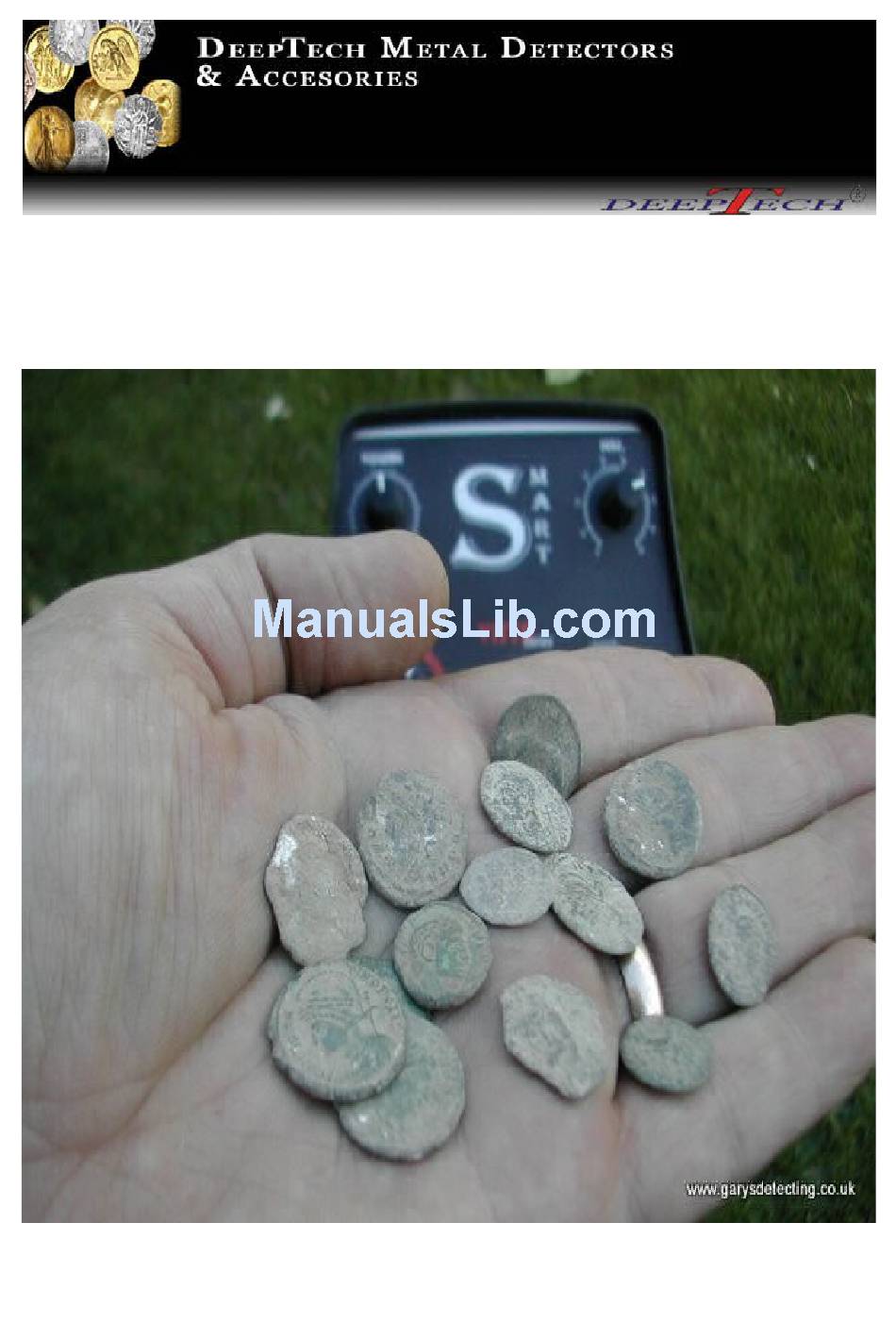

- Page 1 Instruction Manual Vista SMART Design – Silviya Rashkova &Plamen Rashkov www.deeptech-bg.com...
-
Page 2: Table Of Contents
Limited Warranty Information DeepTech is always interested in customer opinions. If you should have any questions or comments regarding your Vista SMART or any other DeepTech product, feel free to contact us directly or through your local Authorized DeepTech dealer. -
Page 3: Assembly

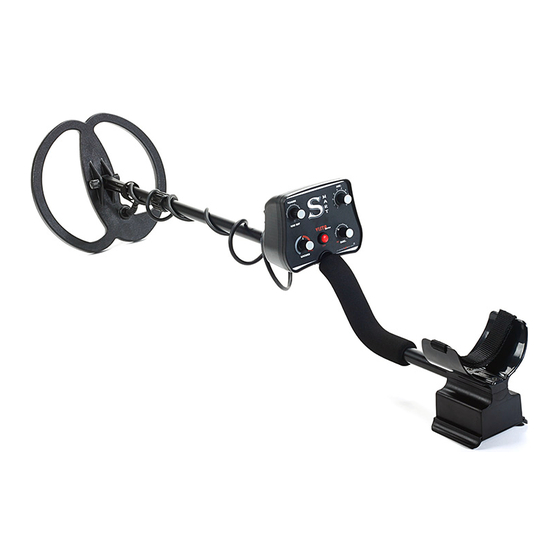

Vista SMART offers. Assembly Before assembling your Vista Smart please check that the package includes the following parts: 11” Wide scan coil (not to be submerged in water, the coil is water resistant only) ... - Page 4 11” coil with coil hardware Lower shaft assembly Middle shaft with camlocks Padded grip Upper pole assembly Arm cup Battery box with control box with strap with sliding door for the Assemble battery compartment...
- Page 5 1.1 Connecting the coil to the lower shaft Place the two rubber washers into the holes on either side of the lower shaft. Slide the bottom of the lower shaft into the bracket on top of the coil. Make sure that the ...
- Page 6 Controls VOLUME SEARCHMODE TRIGGER: BOOSTER PINPOINT KNOB SILENT DISCRIMINATION ON/OFF BUTTON ALL METAL TRIGGER 2-TONE DISCRIMINATION LED INDICATOR BATTERY LIFE DISCRIMINATIO SENSITIVITY GROUND KNOB BALANCE KNOB...
- Page 7 Rear view of the control box COIL PLUG HEADPHONE JACK CONNECTOR SPEAKER...
- Page 8 The power switch is located on the front side of the battery box. This switch is used to turn the Vista SMART on or off. WARNING! Never remove the coil cable from the control box while the Vista SMART is turned on. This may result in damage to the electronics.
- Page 9 2.2 Sensitivity Sensitivity is the level of response to a target. The Vista SMART is highly sensitive and has a wide adjustment range. Although the Vista SMART has an operating frequency of 15,5 kHz for a smooth and quiet operation, it is very important to set the Sensitivity level correctly according to the detecting conditions.
-
Page 10: Headphone Jack
The average battery life is about 20-25 hours. Extremely weak batteries may the reason for false signals. DeepTech strongly recommends to use 8 x 1,5 V AA Alkaline batteries. When using rechargeable batteries, we strongly recommend using batteries with more than 2000mA/H. - Page 11 2.9 Mode Trigger: 2 Tone Mode/All Metal/Disc. Mode The Vista SMART has a three position Mode trigger switch comfortably located on the bottom right side of the control box where it is easily accessible during detecting. The three position Mode trigger switch gives you the option to choose, and quickly switch, between different modes of operation.
- Page 12 All Metal Mode (Trigger in the middle position.) THREE POSITION TRIGGER SWITCH (MIDDLE POSITION) ALL METAL MODE Use the All Metal Mode (Trigger in the middle position) for maximum depth where soil conditions allow. In this position, you are detecting without any discrimination. All metal targets will sound off with a high tone.
- Page 13 This Mode is highly effective in iron patches to clearly identify non-ferrous targets among ferrous targets and also to specifically search for certain ferrous targets. Remember, the Vista SMART must be properly ground balanced in the 2 Tone Mode for optimum performance.
-
Page 14: Booster Trigger
2.10 Booster Trigger The Vista SMART has a two position Booster trigger switch comfortably located on the bottom left side of the control box where it is easily accessible during detecting. The two position Boost trigger switch allows you to turn the Booster On (by pushing the trigger in the forward position, furthest from you) or Off (by pushing the trigger in the back position, towards you). - Page 15 Booster Off (Trigger in back position, towards you.) TWO POSITION TRIGGER SWITCH BACK POSITION (Trigger towards you.) BOOSTER OFF...
-
Page 16: How To Ground Balance
The following steps will explain how to Ground Balance the Vista SMART. This is a very simple process that allows you to balance the Vista SMART to all types of soil. This is very important in order to obtain maximum sensitivity to small targets and depth. -
Page 17: Tips: How To Set The Vista Smart
The further you turn the Disc. knob to the right, the bigger the ferrous target must be in order to emit a high tone. If you are searching for non-ferrous targets, it is recommended that the Discrimination is set between 20-30. In the 2 Tone Mode the Vista SMART is extremely fast and sensitive. -
Page 18: Troubleshooting
Troubleshooting The Vista SMART will not power on: Insert Batteries Replace Batteries Batteries installed incorrectly Battery pack not connected Excessive false signals: Sensitivity too high Incorrect Ground Balance Coil cable loose or not connected The Vista SMART is producing only long tones: ... -
Page 19: Technical Specifications
Technical Specifications Operating Frequency..........15,5 kHz Detector typ.............motion Sensitivity control Volume control Manual Ground Balance Three Modes of operation: - DISC. Mode - 2 Tone Mode (low tone for ferrous objects and high tone for non-ferrous objects) - All Metal Mode Recovery speed…………………………………...Very fast ... -
Page 20: General Advice
Always leave the area neat and clean. We would like to thank you again for purchasing a DeepTech product. Should you have further inquiries, feel free to contact us via E-mail, fax or phone. We appreciate any comments or suggestions. -
Page 21: Limited Warranty Information
- DeepTech reserves the right to change the design or specifications of its detectors without notice. - Page 22 Notes _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ http://www.deeptech-bg.com E-mail: office@deeptech-bg.com Tel./Fax:+359(54)887028 Mob.Phone:+359(895)008569...
