DeepTech Vista X Quick Start Guide
(Basic Setup Guide)

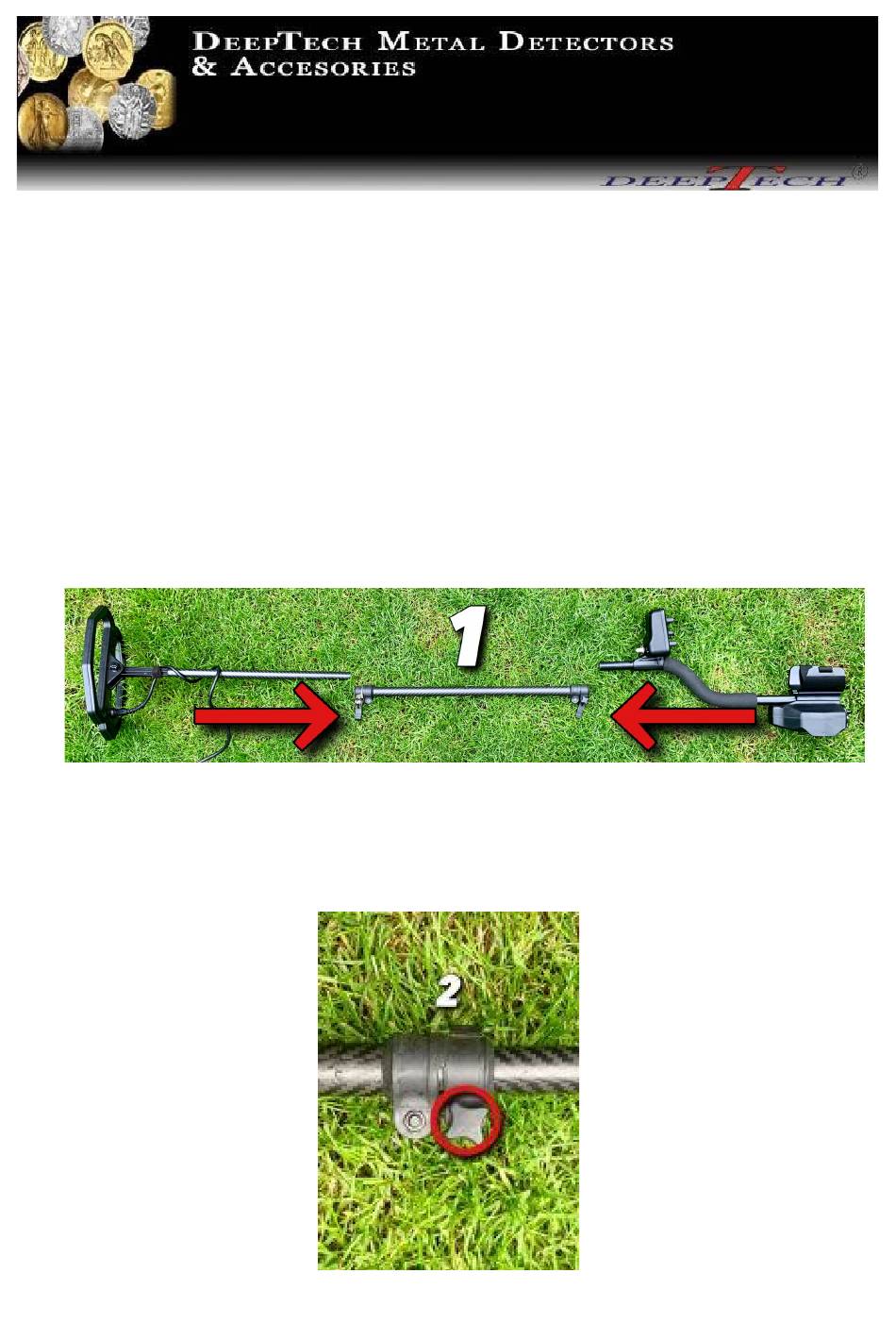

Assembly procedure
1.Make sure the levers and twist screw are loose on the middle shaft at both ends and
push and twist the lower stem and upper (control box) section together, make sure the
lower stem connects into the middle shaft at least 5-6 inches for now and the upper
(control box) section all the way into the middle shaft.
2.Loosely tighten the twist the screw for now on the lower camlock that is at the lower
stem end
Advertisement
Related Manuals for DeepTech Vista X
Summary of Contents for DeepTech Vista X
- Page 1 DeepTech Vista X Quick Start Guide (Basic Setup Guide) Assembly procedure 1.Make sure the levers and twist screw are loose on the middle shaft at both ends and push and twist the lower stem and upper (control box) section together, make sure the lower stem connects into the middle shaft at least 5-6 inches for now and the upper (control box) section all the way into the middle shaft.
- Page 2 3.Close the lever on the camlock, the lever should be easy close for now to allow enough movement for the lower stem to be altered for size you desire and direction of the coil. 4.Repeat process 2 and 3 with the upper camlock that is towards the upper (control box) section, but this time firmly tighten the twist screw and push the lever shut snug to the camlock so the middle shaft holds firmly against the upper (control box) section, if the camlock twists on the middle shaft tighten the Allen key screw shown in photo 3...
- Page 3 6.Connect/push the female coil lead connection into the male control box socket shown in photo 7 but bare in mind you need to align the both parts correctly otherwise they will not connect, now carefully screw the female coil lead connection sleeve to the control box socket firmly but don't over tighten.
- Page 4 8.Make sure the batteries are placed in the battery holder the correct way and touching all connections at both ends, slide the battery holder into the battery compartment with the connections towards the bottom of the battery compartment as shown in the photo. 9.Place and twist the battery compartment end cap back firm and secure.
- Page 5 Now turn your detectors volume all the way up to maximum or to the point you can hear the chatter of the threshold when introduced. Now turn your threshold dial up to the point you can just hear the threshold chatter slightly. Keep your Vista X all metal mode (toggle switch under the control box towards you)
- Page 6 If you can’t manage to make the Vista X fall silent at this point then reduce the threshold to the point it’s easier to hear the silent point whilst raising and lowering the coil to the ground.
- Page 7 Vista X, but if your a beginner to Metal detecting or the Vista X let's keep it simple to start with so you're only looking for and to dig nice clean high toned signals for now. These high toned signals may vary in audio intensity but providing it's solely a high tone with...
- Page 8 For basic Vista X ground balancing please follow steps 1 and 2 from the basic user guide above. Advanced users may wish to run their ground balance either slightly positive or negative depending of their searching preference but for general searching it's recommended that you try to achieve a neutral or zero audio ground balance depending on Detector settings and soil conditions.
- Page 9 Vista X in general without a doubt, place in the field time and the Vista X will reward you when the finds are there even in some awkward detecting conditions.
- Page 10 Thank you for purchasing the DeepTech Vista X Metal Detector and we wish you great success in the fields you search, please don't forget to drop a message if you're lucky enough to find a lovely item.
