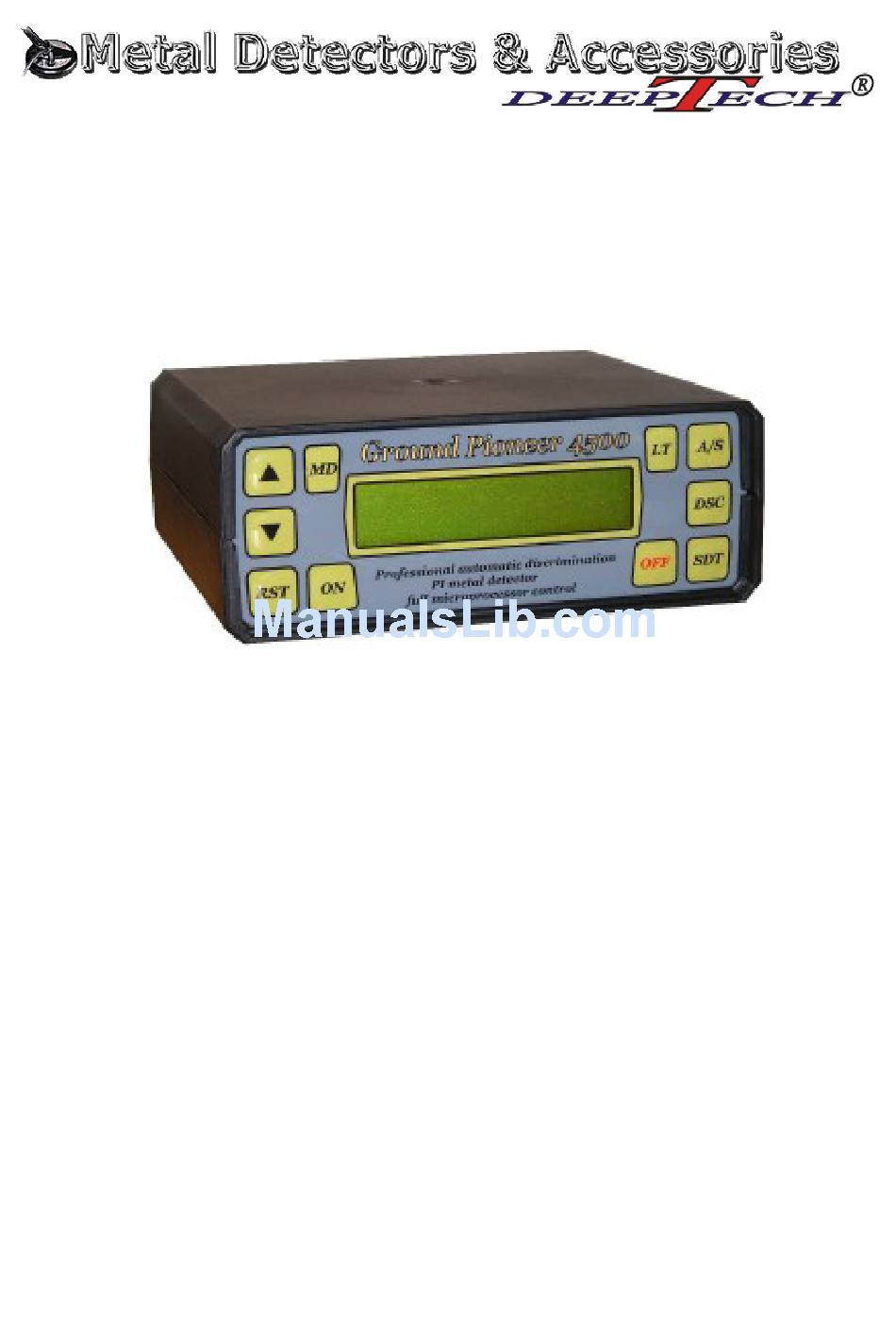

- Page 1 Detector Pulse Induction Metal Ground Pioneer 4500 help the users to find deeper and easily the location of the detected metal...
- Page 2 The Ground Pioneer 4500 is the pulse metal detector with great power plus all the major advancements of our previous discriminating pulse induction metal detectors. The DIGITAL Ground Pioneer 4500 is a composite detector not only for the reason that there is a build-in MAGNETOMETER SENSOR SYSTEM, but also by reason of that there is provided RS 232 PORT for connection to computer and GPS system for localizing and visualization of the burried object.
- Page 3 With larger diameter coil even big areas can be searched quickly. With very large search coils Ground Pioneer 4500 penetrates deeper than it is usually possible with smaller coils. With the large search coils the very small metal pieces are ignored automatically !!! What was registered by our TEST with 11”...
- Page 4 11” search coil 34 cm 1/1 m search coil 11” search coil 35 cm 1/1 m search coil 11” search coil 35 cm 1/1 m search coil 11” search coil 38 cm 1/1 m search coil 11” search coil 44 cm 1/1 m search coil - 3 -...
- Page 5 7 feet. NOTE!!!When you want to compare the field test results of Ground Pioneer 4500 pulse induction metal detector with other well-known pulse induction units,you can...
- Page 6 10 to 20 cm. from the ground while searching. The pinpoiting of the burried object with Ground Pioneer 4500 can be achieved with area of ROUND SEARCH COIL:...
- Page 7 5” SEARCH COIL 11” SEARCH COIL 15” SEARCH COIL What round search coil to choose,when you purchase Ground Pioneer4500? This is the most popular question.It is well known that the larger searchcoils give better depth for larger targets and better ground coverage. But the sensitivity to smaller objects may be sacrificed.
-
Page 8: Lcd Display
Ground Pioneer4500? With this coil we have registered 15% AND MORE DEPTH for big objects by its test in comparision with the standart square search coils. But Note!!! This coil is UNDISCRIMINATING. GROUND PIONEER 4500 -CONTROLS: FRONT PANEL LCD DISPLAY:... - Page 9 Please, Note: the external accumulator system could not be charged from the unit. 2. INDICATION FOR THE DISCRIMINATION REGIME. Ground Pioneer 4500 can work in two regimes of discrimination – with or without sound discrimination. In this field it is indicated which of these two regimes you may chooce for the work.
- Page 10 3. INDICATOR OF THE REGIME OF AUTOTUNING TO THE SOIL CONDITIONS: When in field (3) appears symbol AUTO you are in regime for constant setting up to the soil changes and autoreset after every registrated object by the device . When in field (3) appears symbol SEMI you are in semiautomatic regime.Handset to the changes in the soil and autoreset after every registrared object.
- Page 11 After that you can choose between two different graph regimes.When the device is switched on implicitly it is in a regime LEVEL MODE: It shows the battery condition and current settings of Ground Pioneer 4500.Because this pulse induction detector is designed to memory the last settings, the microprocessor “remembers”...
- Page 12 adjustable in the range 0-15: By pressing buttons you can increase or decrease the values of the Sensitivity. Heavy ground mineralization, nearby radio stations or power transformers are reasons to lower the value of Sensitivity. By SECOND PRESSING on the button SDT the symbol DELAY appears on the LCD display: As by Sensitivity control by pressing on the two buttons on the left side of the Front panel you can increase or decrease the values.The Delay values are also adjustable in...
- Page 13 PLEASE WAIT appears on the display: Five seconds after its disappearance the work with the device can go on. As we mentionted before Ground Pioneer 4500 can work in two regimes of discrimination – with or without SOUND DISCRIMINATION.You can chooce these regimes by pressing on button.
- Page 14 LIGHT button of LCD display.It works in three regimes.You can choose any of these three regimes by pressing the button. AUTO – The device is started always at this rate: After pressing any functional button the light appears in five seconds. - The light is constantly switched off: - The light is constantly switched on: When you choose this regime you must not forget that the voltage of the...
- Page 15 BACK PANEL: 1. Build-in loudspeaker. 2. Jack for headphones Mono/32 om. 3. Safety fuse – 1A. Ground Pioneer 4500 is protected against feedback. 4. Supply jack for external accumulator. 5. Connector for search coil. 6. RS 232 port. TECHNICAL CHARACTERISTICS: Working voltage:12V.
-
Page 16: Limited Warranty Information
DeepTech determines the product to be defective in materials or workmanship,DeepTech will replace or repair the product to the original purchaser only. - Page 17 Notice _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ http://www.deeptech-bg.com e-mail:office@deeptech-bg.com Tel./Fax:+359(54)887028...
