Installer: Leave these instructions with the consumer.
Consumer: Keep these instructions for future reference.
If the information in this
WARNING:
manual is not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
Do not store or use gasoline or other
-
flammable vapors and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
----
- Do not try to light any appliance.
- Do not touch any electrical switch.
- Do not use any phone in your building.
- Immediately call your gas supplier from a
eighbor's phone. Follow the gas supplier's
instructions.
- If you cannot reach your gas supplier, call the
fire department.
- Installation and service must be performed by
a qualified installer, service agency or the gas
supplier equipment.
Questions, Problems, Missing Parts?
Before returning to your supplier, call our
customer service department in the US and
Canada at: 1-800-416-3511, 9a.m. - 5p.m. EST.
Monday - Friday.

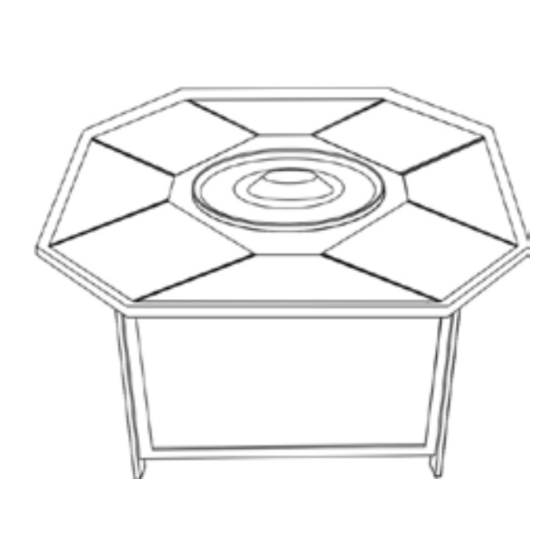

ASSEMBLY INSTRUCTIONS
WARNING: Improper installation,
Adjustment alteration, service or
maintenance can cause injury or property
damage. Read the installation, operating and
maintenance instructions thoroughly before
installing or servicing this equipment.
WARNING: For Outdoor Use Only
FOR USE WITH 20LB. PROPANE
CYLINDER WITH TYPE 1
CONNECTION OR USE WITH
NATURAL GAS AFTER CONVERSION
KIT IS INSTALLED (MUST BE
PROFESSIONALLY INSTALLED) ALSO
THE LP REGULATOR MUST BE
:
SUPPLIED BY THE MANUFACTURER.
WARNING: Do Not Burn Wood or any
other materials in this firepit.
WARNING
USE FACTORY APPROVED
:
REPLACEMENT PARTS AND
ACCESSORIES ONLY. USE OF
UNAPPROVED PART OR
ACCESSORIES CAN VOID THE
WARRANTY ON THIS PRODUCT AND
RESULT IN A HAZARDOUS
CONDITION. PLEASE CONTACT US
FOR INFORMATION REGARDING
REPLACEMENT HOSES,
THERMOCOUPLES, ELECTRODES,
IGNITION MODULES, LAVA ROCKS,
ETC.
CSA Model 99000
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 99000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Agio 99000

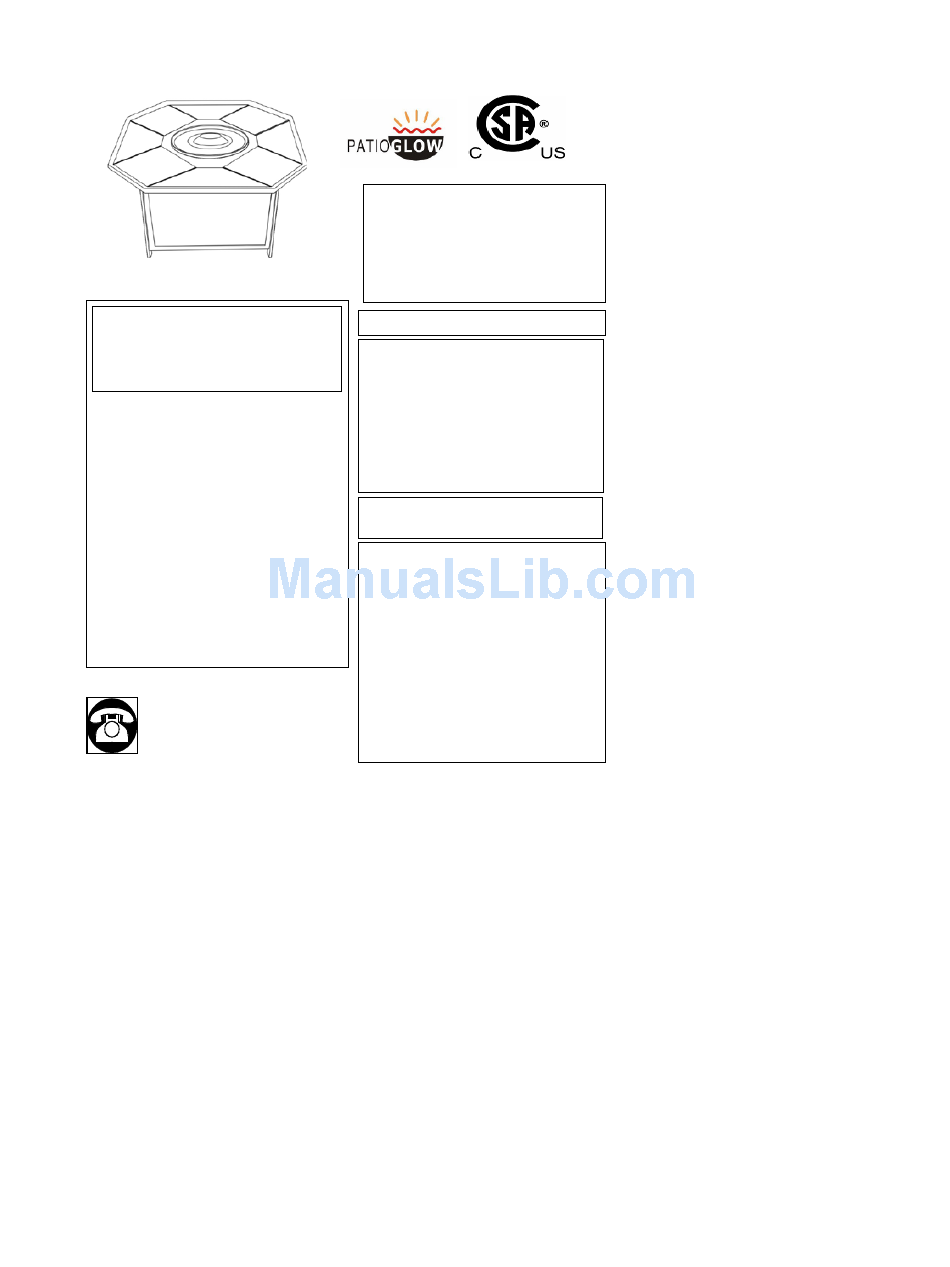

  • Page 1 ASSEMBLY INSTRUCTIONS CSA Model 99000 WARNING: Improper installation, Adjustment alteration, service or maintenance can cause injury or property damage. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment. Installer: Leave these instructions with the consumer.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Information Information About Propane Specifications Parts Identification List Installation Natural Gas Conversion Batteries Lighting Instructions Maintenance Troubleshooting Guide Warranty...
  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION The information must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 , or CAN/CGA - B149.2, Propane Installation Code. The appliance and its appliance main gas valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa).
  • Page 4: Information About Propane

    IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS CYLINDER CONTAINER SIZE: A self contained LP-gas cylinder for use with this appliance must have a capacity of 20 lbs. and must be equipped with a Type I connector and an OPD (overfill protection device). The LP-gas supply cylinder to be used must be constructed and marked in accordance with the specifications for LP-gas cylinders of the U.S.
  • Page 5: Parts Identification List

    PARTS IDENTIFICATION LIST PART DESCRIPTION PART # CONTROL KNOB FP0245 GAS VALVE FP0307 THERMOCOUPLE FP0004 LP REGULATOR HOSE FP0308 ELECTRODE FP0003 ORIFICE ELBOW FP0310 IGNITION MODULE FP0006 PROPANE ORIFICE FP0312 "AAA" BATTERY (1.5V) FP0010 LAVA ROCK SET FP0002-29 FOOTCAP FC0559 FOOTCAP FC0560 1/4"...
  • Page 6: Installation

    INSTALLATION 1. Identify parts packed in carton against the parts list. Remove all protective materials and set parts on a flat, non-abrasive surface. 2. Attach the back panel to side panels by using four 1/4"x40 mm bolts and washers as shown in Fig 2. Guide bolts through holes in back panel, into pre-drilled holes in the side panels.
  • Page 7 5. Put the door onto the "L" pre-assembled connector,guide the pin of "L" connector into the hole under the door Then guide the pin of another "L" connector into the hole upside of the door,use a 1/4"x15 mm bolt and washer to attach this "L"...
  • Page 8 8. After making any necessary adjustments to the parts, use the hex bolt driver to tighten all bolts. Note: each bolt must be tightened a few revolutions at a time. Repeat until all bolts are tight. Do not over tighten. Over tightening may strip bolts. Cover all bolts with covers. 9.
  • Page 9: Natural Gas Conversion

    Figure 13 Serial Number Model Number: 99000 CAUTION: The gas pressure regulator provided with this appliance must be used. This regulator is set for an outlet pressure of 11 inches water column (2.7 kPa). The gas supply must be turned off at the LP-gas supply cylinder when this appliance is not in use.
  • Page 11: Maintenance

    MAINTENANCE The flames should look like those in Figure 17. To clean the burner, use a soft brush after the burner has cooled completely. Never use a vacuum cleaner on the burner. It is recommended that the fire pit be stored indoors during the winter if it will be subjected to freezing temperatures.
  • Page 12: Warranty

    If you have questions regarding care and maintenance of the item(s) you have purchased, please see the accompa- nying care and maintenance guide or visit our website at www.agio.com. If you have further questions, please call our customer service center in the US and Canada at 1-800-416-3511.
