Agio Cameron ARK 15800 Manual

3 piece woven fireplace chat set

Advertisement

Quick Links

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
nstaller: Leave these instructions with
I
consumer.
Consumer: Keep these instructions for
future reference.
WARNING: If the information in this
manual is not followed exactly, a fire
or explosion may result causing
property damage, personal injury or
loss of life.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS.
Do not try to light any appliance.
Do not touch any electrical switch; do
not use any phone in your building.
Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer,
service agency or the gas supplier
equipment.
WARNING: It is UNSAFE to use this product
for cooking!
Questions, Problems, Missing Parts? Before
returning to your retailer, call our customer
service department in the US and Canada at
1-888-383-1932, Monday-Friday, 9 a.m. – 5
p.m Eastern Time. English and French, or you
may Email customerservice@agio-usa.com
International Regions: Please visit
http://www.agio-usa.com/service-center/costco
-international

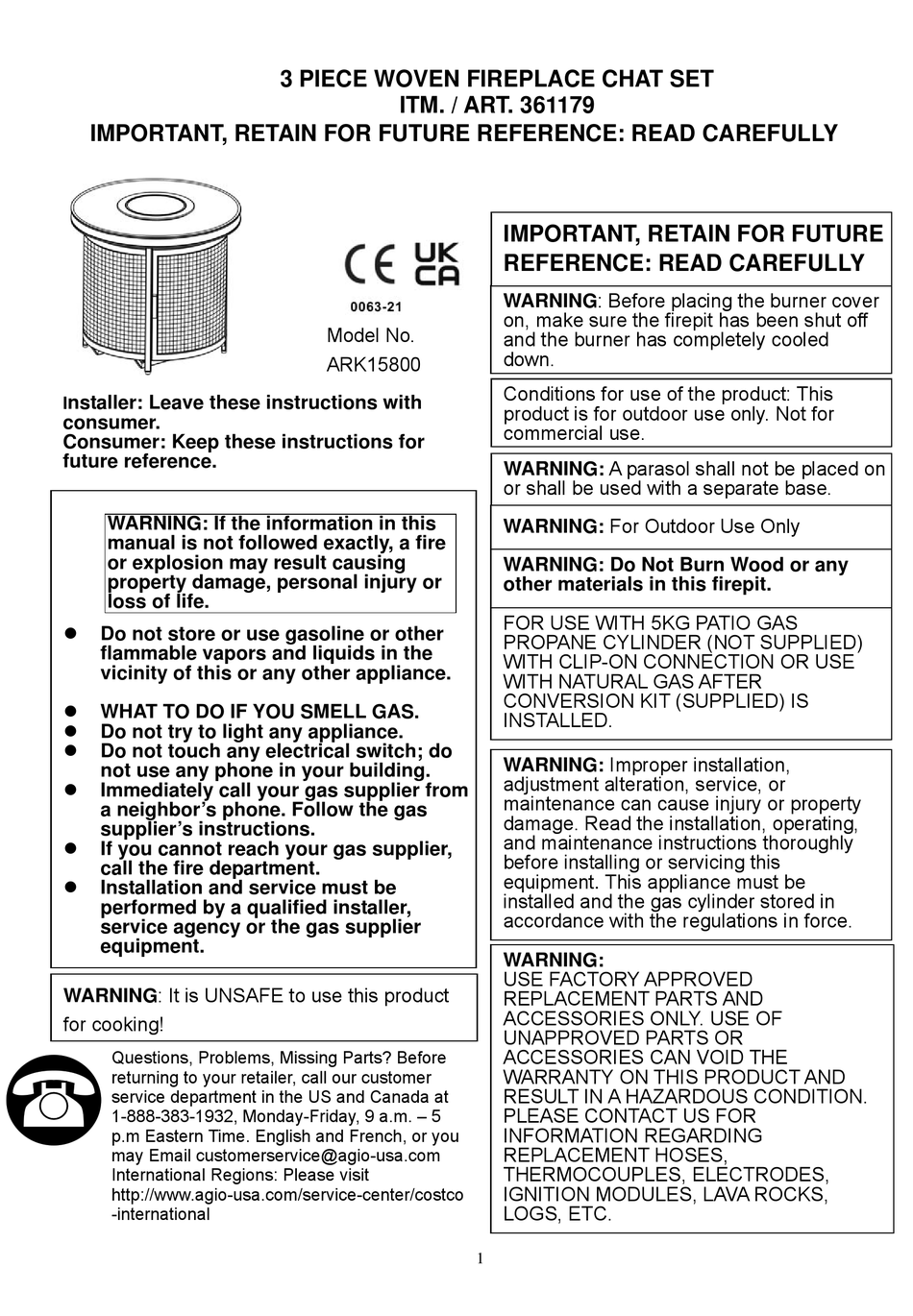

3 PIECE WOVEN FIREPLACE CHAT SET
ITM. / ART. 361179
Model No.
ARK15800
IMPORTANT, RETAIN FOR FUTURE
REFERENCE: READ CAREFULLY
WARNING: Before placing the burner cover
on, make sure the firepit has been shut off
and the burner has completely cooled
down.
Conditions for use of the product: This
product is for outdoor use only. Not for
commercial use.
WARNING: A parasol shall not be placed on
or shall be used with a separate base.
WARNING: For Outdoor Use Only
WARNING: Do Not Burn Wood or any
other materials in this firepit.
FOR USE WITH 5KG PATIO GAS
PROPANE CYLINDER (NOT SUPPLIED)
WITH CLIP-ON CONNECTION OR USE
WITH NATURAL GAS AFTER
CONVERSION KIT (SUPPLIED) IS
INSTALLED.
WARNING: Improper installation,
adjustment alteration, service, or
maintenance can cause injury or property
damage. Read the installation, operating,
and maintenance instructions thoroughly
before installing or servicing this
equipment. This appliance must be
installed and the gas cylinder stored in
accordance with the regulations in force.
WARNING:
USE FACTORY APPROVED
REPLACEMENT PARTS AND
ACCESSORIES ONLY. USE OF
UNAPPROVED PARTS OR
ACCESSORIES CAN VOID THE
WARRANTY ON THIS PRODUCT AND
RESULT IN A HAZARDOUS CONDITION.
PLEASE CONTACT US FOR
INFORMATION REGARDING
REPLACEMENT HOSES,
THERMOCOUPLES, ELECTRODES,
IGNITION MODULES, LAVA ROCKS,
LOGS, ETC.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cameron ARK 15800 and is the answer not in the manual?

Questions and answers

Summary of Contents for Agio Cameron ARK 15800

  • Page 1 US and Canada at PLEASE CONTACT US FOR 1-888-383-1932, Monday-Friday, 9 a.m. – 5 INFORMATION REGARDING p.m Eastern Time. English and French, or you REPLACEMENT HOSES, may Email customerservice@agio-usa.com THERMOCOUPLES, ELECTRODES, International Regions: Please visit IGNITION MODULES, LAVA ROCKS, http://www.agio-usa.com/service-center/costco LOGS, ETC.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Information................3 Important Information about Propane ............4 Specification....................4 Parts Identification List ................5-6 Installation ....................6-7 Batteries......................8 Maintenance ....................8 Lighting Instructions ..................9 Burner Cover Assembly .................9 Troubleshooting Guide.................10...
  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION The appliance area must be kept clear and free from combustible materials, gasoline, and other flammable vapors and liquids. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.
  • Page 4: Important Information About Propane

    IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS The cylinder supply system must be arranged for vapor withdrawal.   This appliance shall be used only outdoors in a well-ventilated space and shall not be used in a building, garage, or any other enclosed space. ...
  • Page 5: Parts Identification List

    PARTS IDENTIFICATION LIST PART DESCRIPTION PART# CONTROL KNOB FP2329 GAS VALVE FP3703 THERMOCOUPLE FP2331 FLEX CONNECTOR FP2332 ELECTRODE FP2333 IGNITION MODULE FP2334 CHAIN FP1736 PROPANE ORIFICE FP2969 LP REGULATOR HOSE FP2025 FOOT CAPS FC0759 “AA” BATTERY HW0905 FIRE ICE (TOTAL:3KG) FP3574 M4 SCREW HW0898...
  • Page 6: Installation

    BURNER COVER FP3779 FIREPIT TABLE TOP FP3780 INSTALLATION 1. Carefully unpack all items from the box. Place the base in the final position. There must be a minimum of 60.96 cm / 24 inches of clearance from the side of the table top to any combustible walls.
  • Page 7 4. Pour ALL of the provided media(fire ice) into the burner pan. Burner MUST be completely covered to ensure the appliance functions properly and safely. Remove any lava rocks or fire ice on top of the ignition well. See figure 5. Figure 5 5.
  • Page 8: Batteries

    BATTERIES Make sure the control knob is in the "OFF" position. Unscrew the push button cap on the ignition module located on the control panel to access the battery compartment. The ignition module requires one Alkaline AA size battery. The negative (-) end goes in first.
  • Page 9: Lighting Instructions

    LIGHTING INSTRUCTIONS Warning: If these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life. IGNITER BUTTON Figure 12 CONTROL KNOB 1. Read instructions before lighting. 2. Push and turn the knob to ON. 3.
  • Page 10: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM CAUSE REMEDY Check that the gas tank valve is open. Turn the control knob to “ON” and push No propane gas at burner the control knob in. Make sure tank has propane gas. Check that the AA battery is installed with the negative (-) end first and has a Burner Won’t Light charge.
  • Page 11 Do not connect the gas cylinder directly to the appliance without the regulator; The recommended cylinder size is-max diameter: 310mm, max height: 400mm. Manufacturer: Agio International Corporation 900 E Hamilton Ave, Suite 100, Campbell, CA 95008, USA Importer : Costco Wholesale UK Ltd /...
  • Page 12 FOR ADDITIONAL SUPPORT ON CARE AND MAINTENANCE OF With initial use the seat cushions may feel firm, but with continued use the cushions will YOUR AGIO OUTDOOR FURNITURE PLEASE VISIT OUR WEBSITE continue to soften and provide the ultimate comfort for seasons to come.
  • Page 13 Before you www.agio-usa.com/porcelaincare or call our Customer Service Center in the US and reseal your tabletop or to obtain our factory sealer, please visit our website at www.agio- Canada at 1-888-383-1932.
  • Page 14 à venir. POUR UN SOUTIEN VIDÉO ADDITIONNEL À L’ASSEMBLAGE, POUR RÉSOUDRE DES PROBLÈMES OU POUR L’ENTRETIEN DU MATÉRIEL DE PATIO AGIO, SE RENDRE SUR NOTRE SITE WEB : www.agio-usa.com/service-center/maintenance/(en anglais seulement) Agio International Corporation 900 E.
  • Page 15 Web www.agio-usa.com/claycare ou www.agio-usa.com/claycare ou www.agio-usa.com/porcelaincare ou téléphoner à notre www.agio-usa.com/porcelaincare ou contacter le Centre de service à la clientèle aux service à la clientèle à les États-Unis et Canada au 1-888-383-1932. États-Unis et au Canada en composant le 1 888-383-1932.
  • Page 16 PARA SOPORTE ADICIONAL EN VIDEO SOBRE EL ENSAMBLE, SOLUCIÓN cojines pueden parecer rígidos, pero con el uso continuado se ablandarán y DE PROBLEMAS, CUIDADO Y MANTENIMIENTO DEL MUEBLE AGIO PARA proporcionarán el máximo confort en el futuro. EXTERIORES, VISITE NUESTRA PÁGINA WEB EN: www.agio-usa.com/service-center/maintenance/...
  • Page 17 Antes de volver a sellar la superficie de la mesa o de obtener nuestro sellador de www.agio-usa.com/porcelaincare o llame a nuestro fábrica, por favor, visite nuestra página web en www.agio-usa.com/claycare o www.agio- Centro de Servicio al Cliente en los Estados Unidos y Canadá al teléfono 1-888-383-1932.
  • Page 18 * NOTE: PARTS SHOWN ON PARTS LIST ARE NOT TO SCALE. MAKE SURE YOU HAVE ALL THE PARTS & HARDWARE AS IDENTIFIED ON THE PARTS LIST * NOTE : LES PIÈCES ILLUSTRÉES NE SONT PAS À L'ÉCHELLE. VÉRIFIER QUE TOUTES LES PIÈCES ET LA QUINCAILLERIE SONT BIEN TELLES QU'IDENTIFIÉES SUR LA *NOTA: LAS PIEZAS MOSTRADAS EN LA LISTA DE PIEZAS NO ESTÁN A ESCALA.
  • Page 19 Do not attempt to assemble the chair if any parts are missing or damaged. N'essayez pas de rassembler la chaise s'il en est tels les parties manquent ou endommagées. No intente montar la silla, si faltan piezas o están dañadas. "U"...
  • Page 20 Costco Wholesale UK Ltd / Costco Online UK Ltd Hartspring Lane Watford, Herts WD25 8JS United Kingdom 01923 213113 www.costco.co.uk...
