Agio 294452 Manual

7 piece woven high dining fire set

Advertisement

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
Installer: Leave these instructions with consumer.
Consumer: Keep these instructions for future reference
WARNING: If the information in this
manual is not followed exactly, a fire
or explosion may result causing
property damage, personal injury or
loss of life.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS.
Do not try to light any appliance.
Do not touch any electrical switch; do
not use any phone in your building.
Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer,
service agency or the gas supplier
equipment.
WARNING: It is UNSAFE to use this product for
cooking!
Questions, Problems, Missing Parts? Before
returning to your retailer, call our customer service
department in the US and Canada at
1-888-383-1932, Monday-Friday, 9 a.m. – 5 p.m
Eastern Time. English and French, or you may
Email customerservice@agio-usa.com International
Regions: Please visit
http://www.agio-usa.com/service-center/costco-inte
rnational

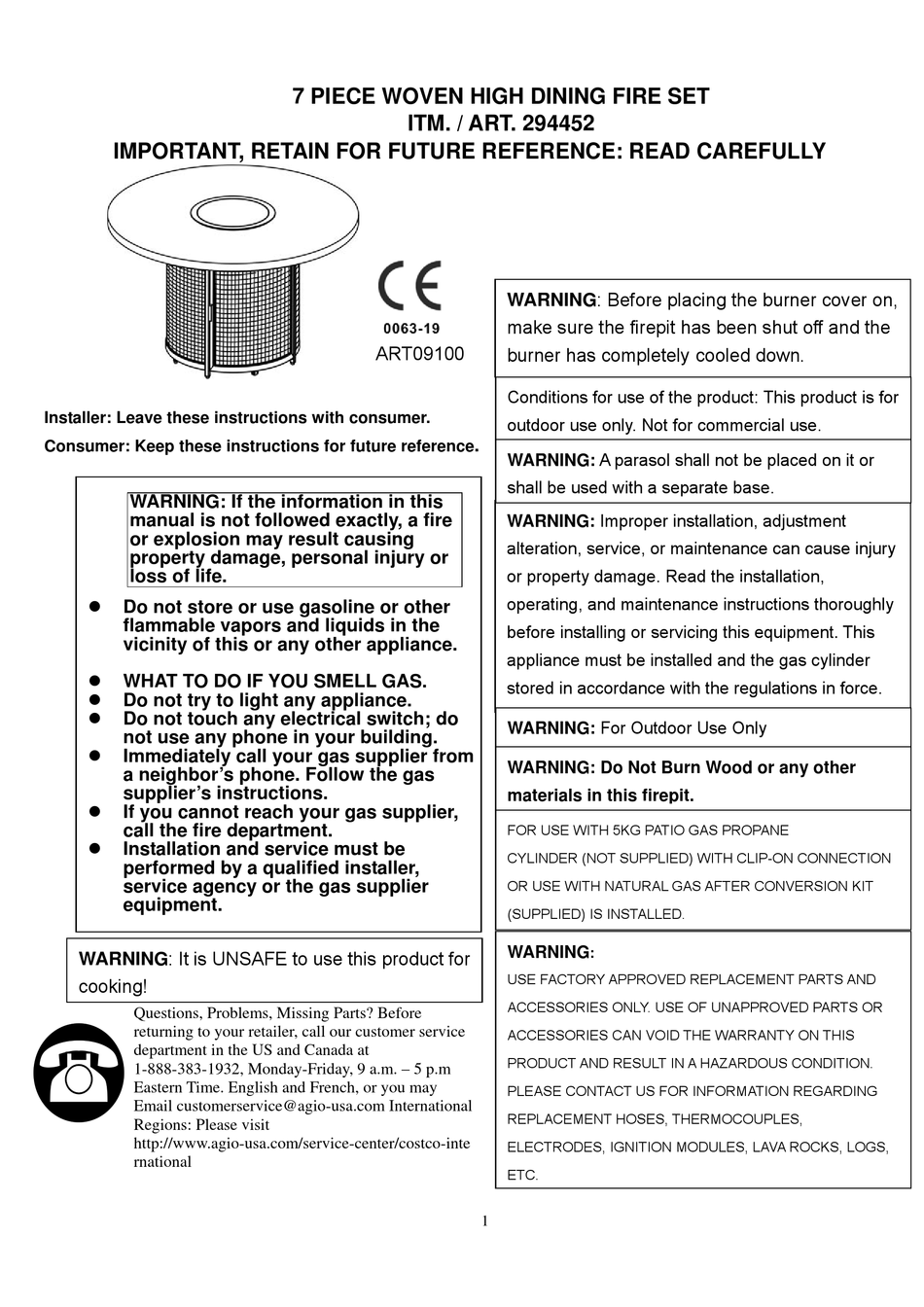

7 PIECE WOVEN HIGH DINING FIRE SET
ITM. / ART. 294452
ART09100
WARNING: Before placing the burner cover on,
make sure the firepit has been shut off and the
burner has completely cooled down.
Conditions for use of the product: This product is for
outdoor use only. Not for commercial use.
.
WARNING: A parasol shall not be placed on it or
shall be used with a separate base.
WARNING: Improper installation, adjustment
alteration, service, or maintenance can cause injury
or property damage. Read the installation,
operating, and maintenance instructions thoroughly
before installing or servicing this equipment. This
appliance must be installed and the gas cylinder
stored in accordance with the regulations in force.
WARNING: For Outdoor Use Only
WARNING: Do Not Burn Wood or any other
materials in this firepit.
FOR USE WITH 5KG PATIO GAS PROPANE
CYLINDER (NOT SUPPLIED) WITH CLIP-ON CONNECTION
OR USE WITH NATURAL GAS AFTER CONVERSION KIT
(SUPPLIED) IS INSTALLED.
WARNING
:
USE FACTORY APPROVED REPLACEMENT PARTS AND
ACCESSORIES ONLY. USE OF UNAPPROVED PARTS OR
ACCESSORIES CAN VOID THE WARRANTY ON THIS
PRODUCT AND RESULT IN A HAZARDOUS CONDITION.
PLEASE CONTACT US FOR INFORMATION REGARDING
REPLACEMENT HOSES, THERMOCOUPLES,
ELECTRODES, IGNITION MODULES, LAVA ROCKS, LOGS,
ETC.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 294452 and is the answer not in the manual?

Questions and answers

Summary of Contents for Agio 294452

  • Page 1 7 PIECE WOVEN HIGH DINING FIRE SET ITM. / ART. 294452 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY WARNING: Before placing the burner cover on, make sure the firepit has been shut off and the ART09100 burner has completely cooled down.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safety Information................3 Important Information about Propane ............4 Specification....................4 Parts Identification List ................5-6 Installation ....................6-7 Natural Gas Conversion................8-9 Batteries......................9 Maintenance ....................10 Lighting Instructions ..................10 Burner Cover Assembly ................11 Troubleshooting Guide.................11...
  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION The appliance area must be kept clear and free from combustible materials, gasoline, and other flammable vapors and liquids. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.
  • Page 4: Important Information About Propane

    IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS The cylinder supply system must be arranged for vapor withdrawal.   This appliance shall be used only outdoors in a well-ventilated space and shall not be used in a building, garage, or any other enclosed space. ...
  • Page 5: Parts Identification List

    PARTS IDENTIFICATION LIST PART DESCRIPTION PART# CONTROL KNOB FP2329 GAS VALVE FP2330 THERMOCOUPLE FP2331 FLEX CONNECTOR FP2332 ELECTRODE FP2333 IGNITION MODULE FP2334 CHAIN FP1736 PROPANE ORIFICE FP2205 LP REGULATOR HOSE FP2025 FOOT CAPS FC0759 “AA” BATTERY HW0905 AIR SHUTTER FP1922 FIRE ICE FP2147 NATURAL GAS ORIFICE...
  • Page 6: Installation

    BURNER COVER FP3001 FIREPIT BASE FP3002 FIREPIT TABLE TOP FP3003 INSTALLATION 1. Carefully unpack all items from the box. Place the base in the final position. There must be a minimum of 60.96 cm / 24 inches of clearance from the side of the table top to any combustible walls.
  • Page 7 4. Pour ALL of the provided media (fire ice or lava rock) into the burner pan. Burner MUST be completely covered to ensure the appliance functions properly and safely. Remove any lava rocks or fire ice on top of the ignition well. See figure4. Figure 4 5.
  • Page 8: Natural Gas Conversion

    Natural gas conversion must be performed only by your natural gas provider or service company. 1. SHUT OFF THE GAS SUPPLY TO THE UNIT AND ANY NEARBY ELECTRICAL SOURCE OR APPLICANCES 2. Below the burner, carefully disconnect flex connector attached to the orifice holder (see step1). 3.
  • Page 9: Batteries

    ALL of the connections. NEVER USE A FLAME TO CHECK FOR GAS LEAKS! Step5 10. Stick the conversion label on the rating plate as shown in Figure 9. Metal Rating Plate Serial Number _________________ Model Number: ART09100  This appliance has been converted to use Natural Gas G20. ...
  • Page 10: Maintenance

    MAINTENANCE The flames should look like those in Figure 11. To clean the burner, use a soft brush after the burner has cooled completely. Never use a vacuum cleaner on the burner. It is recommended to store the fire pit indoors during winter if it will be subjected to freezing temperatures.
  • Page 11: Burner Cover Assembly

    TROUBLESHOOTING GUIDE PROBLEM CAUSE REMEDY Check that the gas tank valve is open. Turn the control knob to “ON” and push No propane gas at burner the control knob in. Make sure tank has propane gas. Check that the AA battery is installed with the negative (-) end first and has a Burner Won’t Light charge.
  • Page 12 1) For use outdoors or in amply ventilated areas. 2) An amply ventilated area must have a minimum of 25% of the surface area open. 3) The surface area is the sum of the walls surface. The hose should comply with the standard EN16436; The regulator should comply with the standard EN16129;...
  • Page 13 Please visit http://www.agio-usa.com/service-center/costco-international/ or contact email address at customerservice@agio-usa.com FOR ADDITIONAL SUPPORT ON CARE AND MAINTENANCE OF YOUR AGIO OUTDOOR FURNITURE PLEASE VISIT OUR WEBSITE AUSTRALIA: Our goods come with guarantees that cannot be excluded under the AT: www.agio-usa.com/support Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
  • Page 14 Before you www.agio-usa.com/porcelaincare or call our Customer Service Center in the US and reseal your tabletop or to obtain our factory sealer, please visit our website at www.agio- Canada at 1-888-383-1932.
  • Page 15 RÉSOUDRE DES PROBLÈMES OU POUR L’ENTRETIEN DU MATÉRIEL DE AUSTRALIE : Nos articles sont offerts avec des garanties qui ne peuvent connaître PATIO AGIO, SE RENDRE SUR NOTRE SITE WEB : d'exclusions au regard de la loi australienne sur la protection des consommateurs.
  • Page 16 Web www.agio-usa.com/claycare ou www.agio-usa.com/porcelaincare ou contacter le Centre de service à la clientèle aux Pour supplémentaire et plus d'information détaillée sur le soin de table d'argile / États-Unis et au Canada en composant le 1 888-383-1932.
  • Page 17 PARA SOPORTE ADICIONAL EN VIDEO SOBRE EL ENSAMBLE, SOLUCIÓN DE PROBLEMAS, CUIDADO Y MANTENIMIENTO DEL MUEBLE AGIO PARA EXTERIORES, VISITE NUESTRA PÁGINA WEB EN: AUSTRALIA: Nuestros productos cuentan con garantías que no se pueden excluir www.agio-usa.com/support...
  • Page 18 (arcilla) y de porcelana, sellando la superficie de mesa, o la reparación de nuestro sellador de fábrica puede producir resultados indeseables y anulará cualquier garantía daños, por favor visite nuestro sitio web en www.agio-usa.com/claycare o aplicable. Antes de volver a sellar la superficie de la mesa o de obtener nuestro sellador de www.agio-usa.com/porcelaincare o llame a nuestro...
  • Page 19 PIEZAS JUEGO DE COMEDOR ALTO Y ARMAZÓN DE LA SILLA TEJIDO CON FOGÓN BASE FRAME BASE DU FAUTEUIL AK1474 PATA IZQUIERDA DE LA SILLA ITM. / ART. 294452 SCREW (25 MM) VIS HW0037 (25 MM) TORNILLO IMPORTANT, RETAIN FOR FUTURE WASHER REFERENCE: READ CAREFULLY...
