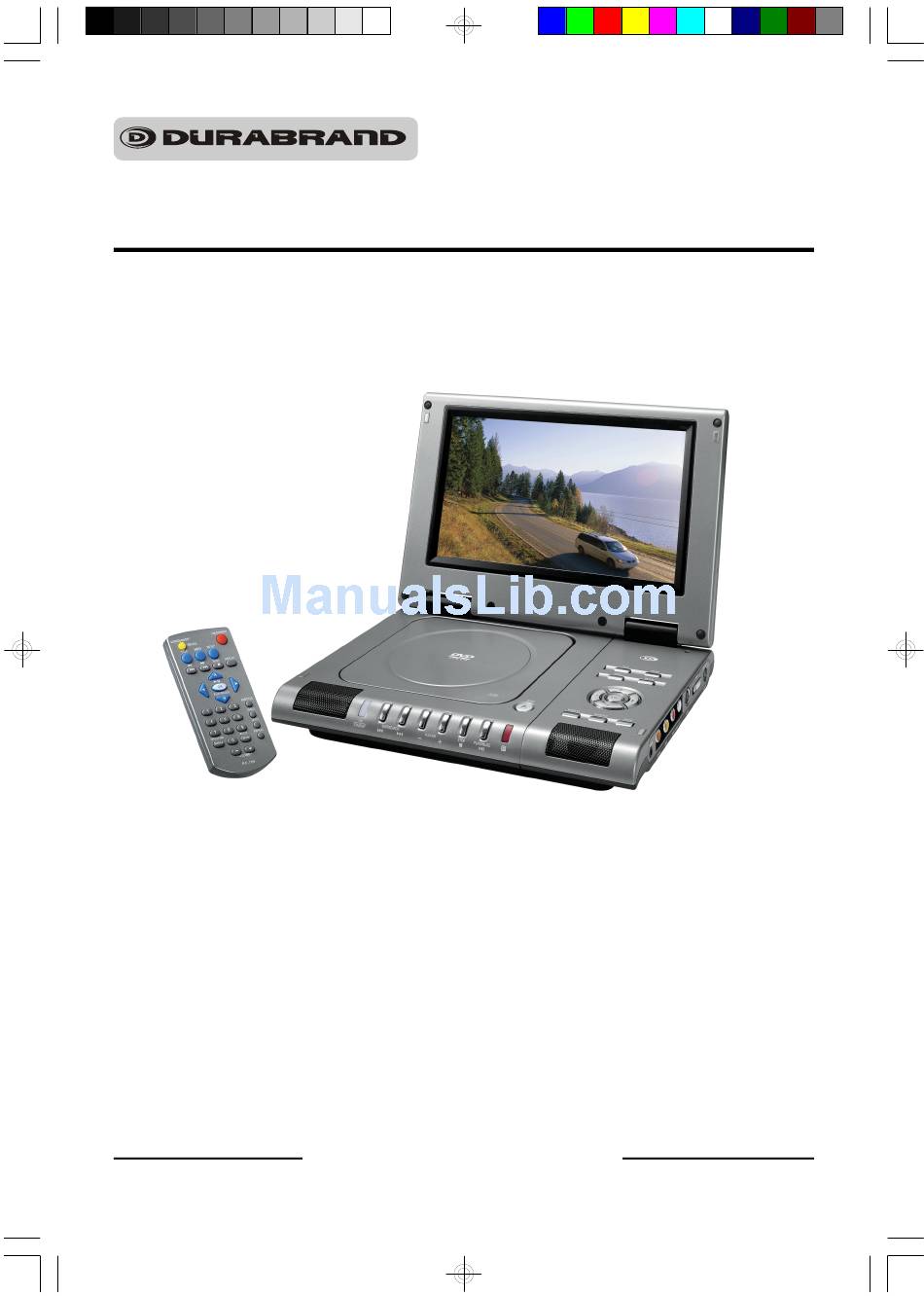

PORTABLE DVD PLAYER

•
Plays DVDs, Audio CDs, CD-R/RW, MP3 CDs and Picture CDs
•
Includes Rechargeable Battery for Portable Use Anywhere
•
Includes AC Adaptor
•
Includes Car Adaptor for Travel
•
Connects to Your Larger Screen Home TV (cable included)
IB-PDV709-WM-E-061006.pmd
INSTRUCTION MANUAL
PLEASE READ CAREFULLY BEFORE USE
1
MODEL PDV-709
IB-PDV709-WM-E-061006
8/3/2006, 11:00 AM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDV-709 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Durabrand PDV-709

Summary of Contents for Durabrand PDV-709

  • Page 1: Portable Dvd Player

    • Includes Rechargeable Battery for Portable Use Anywhere • Includes AC Adaptor • Includes Car Adaptor for Travel • Connects to Your Larger Screen Home TV (cable included) PLEASE READ CAREFULLY BEFORE USE IB-PDV709-WM-E-061006.pmd MODEL PDV-709 IB-PDV709-WM-E-061006 8/3/2006, 11:00 AM...

  • Page 2: Important Safety Instructions

    SAFETY INSTRUCTIONS TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THE PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

  • Page 3: Included Accessories

    SAFETY INSTRUCTIONS Do not apply oil or petroleum products or solvents to any part of this set. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesirable operation.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS • Getting Started: Safety Instructions------------------------------------------------------------------------------------------1 Controls Overview --------------------------------------------------------------------------------------4 Power Supply ----------------------------------------------------------------------------------------------7 Remote Control Operation -----------------------------------------------------------------------------8 Notes on Discs ---------------------------------------------------------------------------------------------9 • Basic Operation: 1. Playing a Disc -------------------------------------------------------------------------------------10 2. Using the Search Functions---------------------------------------------------------------------11 3. Selecting Audio Mode---------------------------------------------------------------------------11 4. Changing Subtitle Language------------------------------------------------------------------11 5.

  • Page 5: Controls Overview

    CONTROLS OVERVIEW Front View 1. TFT LCD SCREEN – Provides a high resolution picture. 2. DISC DOOR – Open the door by pressing the open button and set the disc inside it. 3. SPEAKERS – Provide stereo sound. 4. ON/STANDBY INDICATOR – The indicator lights up in red when the set is in standby mode and in green when the set is on.

  • Page 6: Rechargeable Battery

    CONTROLS OVERVIEW Right Side View 1. PHONES JACK – Insert your headphones (not included) to enjoy the sound without disturbing others. 2. COAXIAL JACK – Connects the DVD player to your home theater system using a coaxial cable (coaxial cable is not included). 3.

  • Page 7: Remote Control

    CONTROLS OVERVIEW REMOTE CONTROL ON/STANDBY SCREEN ON/OFF BRI/COL TITLE MENU SETUP STOP DISPLAY PLAY/PAUSE SUBTITLE AUDIO GOTO PROGRAM ZOOM REPEAT ANGLE SLOW VOLUME RC-709 10. ANGLE / PROGRAM button – In DVD mode, press to display angle menu (if present on the DVD disc);...

  • Page 8: Power Supply

    POWER SUPPLY You can power this portable DVD player by connecting the AC adaptor, the car adaptor or the rechargeable battery (all included). A. Using the AC adaptor This player is supplied with an AC adaptor for powering the unit and charging the battery.

  • Page 9: Remote Control Operation

    2. The battery LED indicator will flash when the battery is charging and remain steadily on when the battery is fully charged. 3. Charging time is about 5 hours. A fully charged battery delivers about 2.5 hours of viewing time. 4.

  • Page 10: Notes On Discs

    NOTES ON DISCS Discs that can be played DISC TYPE & LOGO MARK DVD Video (Region 1) DVD-R / DVD-RW JPEG disc Music CD CD-R disc CD-RW disc MP3 disc NOTE: A hand symbol “ ” may appear on the screen when pressing some buttons. A “ means that the operation is not permitted by the DVD player for the disc in that mode or at that time.

  • Page 11: Playing A Disc

    1. PLAYING A DISC Lift the LCD screen. Slide the DVD player’s POWER switch to the ON position, the DVD logo (start-up picture) will appear on the screen. Some discs will start playing automatically, and others will display the Disc Contents Menu on the screen.

  • Page 12: Using The Search Functions

    2. USING THE SEARCH FUNCTIONS During play, you can search quickly through a chapter or track. Search through a chapter or a track During play, press and hold the SKIP/SEARCH speed, the fast search speed changes as follows: FORWARD X2 FORWARD X4 PLAY During play, press and hold the SKIP/SEARCH...

  • Page 13: Displaying Disc Information

    5. DISPLAYING DISC INFORMATION If you want to know disc information during play, press the DISPLAY button on the remote control or on the set, the disc information will appear on the top of the screen as shown below: For DVD Play DVD TT 1/2 CH 6/12 o)) 1/3ENG 5.1CH...

  • Page 14: Repeat Play

    6. REPEAT PLAY The REPEAT button allows you to repeat the current track, chapter, title, a chosen section (A-B), or all of the disc. Each time you press the REPEAT button on the remote control repeatedly, the repeat mode changes as follows: For DVD REP: [CHAPTER] REP: [TITLE]...

  • Page 15: Zoom Play

    8. ZOOM PLAY The ZOOM/SLOW button allows you to do a minimal zoom into a picture as well as shift the zoom point. Press the ZOOM/SLOW button on the remote control repeatedly to enlarge or reduce a picture. The display will show as follows: ZOOM 2 ZOOM 3 ZOOM 4...

  • Page 16: Viewing Angle Shots

    10. VIEWING ANGLE SHOTS Some DVD video discs may contain scenes which have been shot simultaneously from a few different angles. This icon Certain scenes can be viewed from many different angles by pressing the PROGRAM/ANGLE button on the remote control. ANGLE 1 NOTE: 1.

  • Page 17: Mp3 Disc Operation

    12. MP3 DISC OPERATION This allows you to play your MP3 audio recorded disc you made on this set. This set will not play WMA format songs. When recording your MP3 disc on your computer, please record the songs in MP3 format. Load your recorded MP3 disc into the player, a menu will show on the screen.

  • Page 18: System Connections

    SYSTEM CONNECTIONS This DVD player can also be used to view movies on your large screen TV. When viewing on your TV, you may fold the screen down to shut off the TFT LCD display. Always ensure when connecting cables, the DVD player, TV and any other electrical equipment are turned off and not plugged into the AC outlet.

  • Page 19: Connection System Connections

    For TV Connection SYSTEM CONNECTIONS Connecting to a digital home theater system using a coaxial cable Refer to your home theater system’s manual before connection. For Video, insert the video plugs into the video out jack on your DVD player and the video in jack on your TV.

  • Page 20: Watching A Dvd On Your Tv

    WATCHING A DVD ON YOUR TV After all the connections have been done, please follow steps below to watch a DVD on your TV. Make sure all of the equipment is plugged back into the AC outlet. Lift the DVD LCD screen. Slide the DVD player’s POWER switch to the ON position, the DVD logo (start-up picture) will appear on the screen.

  • Page 21: Initial Setting

    INITIAL SETTING When using the DVD player for the first time, you may need to set some of the settings and adjustments according to your TV and favorite preferences. You can get to the SETUP menu by following the below steps. Press the SETUP button, a SETUP menu will appear on the TV screen.

  • Page 22: Selecting The Tv Type

    INITIAL SETTING Selecting the TV TYPE Select the aspect ratio of the movie to match the LCD screen and your TV set. There are three types of screen sizes you may select. NOTE: If your DISC is not encoded to allow you to change the aspect ratio, the TV display cannot be changed.

  • Page 23: Language Setup (Osd, Audio, Subtitle & Menu)

    INITIAL SETTING LANGUAGE SETUP (On Screen Display, AUDIO, SUBTITLE & MENU) These items allow you to preset the OSD language (OSD = On Screen Display), audio language, subtitle language, and menu language that will always be used for every disc on this player (if the language selected is available). NOTE 1: If the language selected is not available on the disc, the original language designated by each disc will be selected.

  • Page 24: Precautions

    PRECAUTIONS Safety • As the laser beam used in the DVD player may be harmful to the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only (it is perfectly safe if you don’t unscrew and open the cabinet).

  • Page 25: Trouble Shooting

    TROUBLE SHOOTING Symptom No power. Battery is fully charged but does not work. Battery drains too fast in stop mode. • Play fails to start even when PLAY is pressed. • Play starts but then stops immediately. No image on the LCD screen.
  • Page 26 TROUBLE SHOOTING Symptom No sound from your TV or speakers. There is no function or less function when you adjust the color or the brightness of the LCD screen using the SCREEN ON/OFF and the left or right direction buttons. The REMOTE CONTROL unit does not work.
  • Page 27 TROUBLE SHOOTING Symptom No sound during fast forward or other speed functions. Cannot change a menu item. The LCD picture is not 16:9 widescreen even you have set the TV TYPE to 16:9. Audio soundtrack and/ or subtitle language is not at the initial settings.

  • Page 28: Glossary

    GLOSSARY TITLE The longest sections of a picture or a music piece on a DVD, or a movie, etc.. Each title is assigned a title number enabling you to locate the title you want. CHAPTER Sections of a picture or a music piece on a DVD that are smaller than titles.

  • Page 29: Ib-Pdv709-Wm-E

    SPECIFICATIONS General Description TFT LCD screen size: 9" Power source: AC adaptor: 100 - 240V, 50/60Hz, DC 9V, 2A output (included) Car adaptor: 12V input, 12V, 2A output (included), fuse 3A, 250V Power consumption: 17 Watts [normal household current] (approx. 3W when the set is in the standby mode).

  • Page 30: Limited Warranty

    During the initial 1 year period after original purchase, we will service the set that is returned to LENOXX ELECTRONICS CORP., prepaid, at no charge. After the initial 1 year period expires, we will exchange, at no charge, any part that is defective, but will charge for the cost of labor, return postage paid by Lenoxx.
