PORTABLE DVD PLAYER

•
PLAYS DVDs
•
PLAYS ALL AUDIO CDs
•
PLAYS MP3 RECORDED DISCS
•
PLAYS CD-R & CD-RW DISCS
•
PLAYS JPEG PHOTO DISCS
•
INCLUDES RECHARGEABLE BATTERY FOR
PORTABLE USE ANYWHERE
•
CONNECTS TO YOUR LARGER SCREEN HOME TV

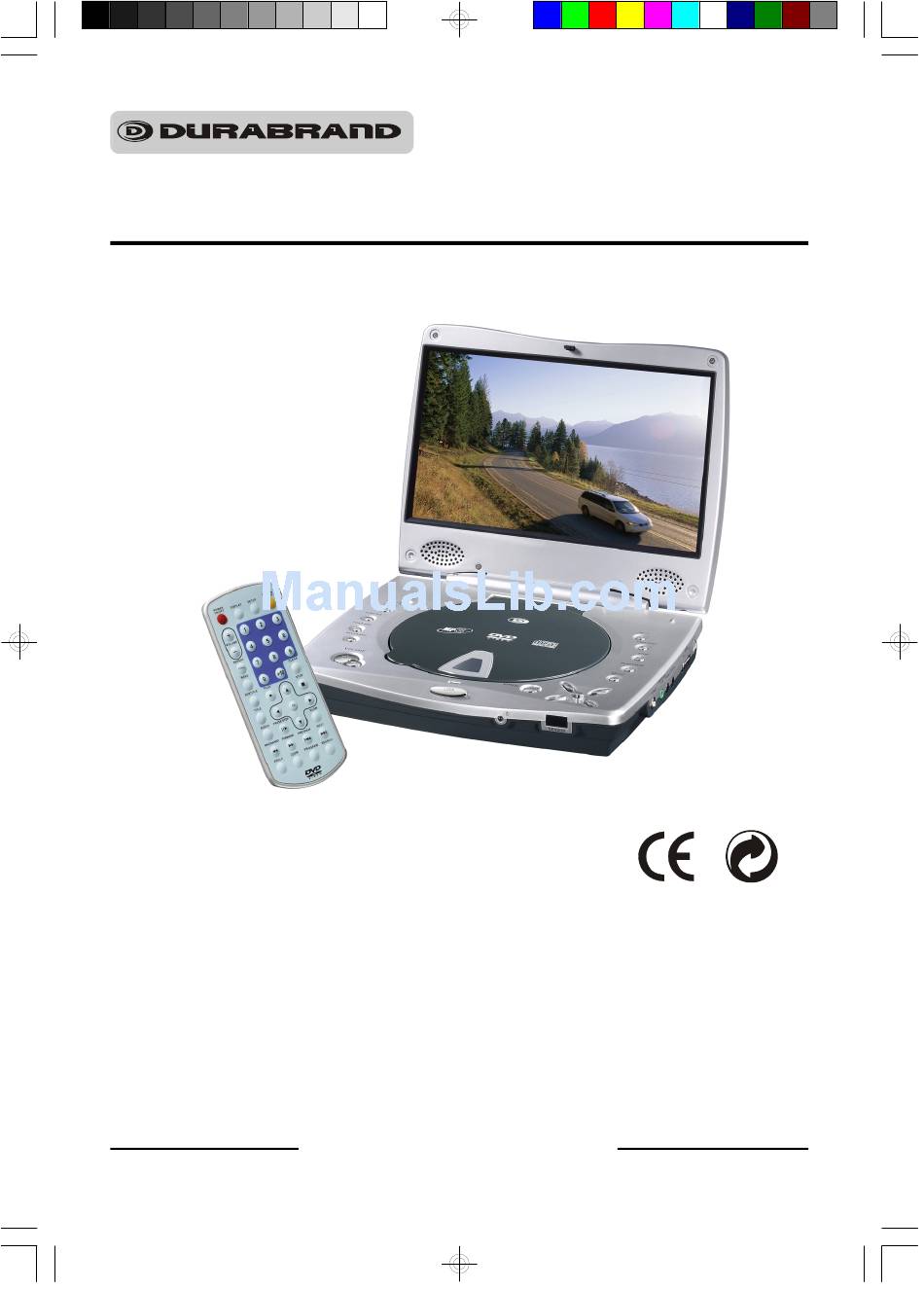

IB-PDV708U-WU-E-011706.pmd
INSTRUCTION MANUAL
PLEASE READ CAREFULLY BEFORE USE
1
MODEL PDV-708U
IB-PDV708U-WU-E-011706
2/20/2006, 2:07 PM

Advertisement

Table of Contents
loading

Related Manuals for Durabrand PDV-708U

Summary of Contents for Durabrand PDV-708U

  • Page 1: Portable Dvd Player

    PLAYS MP3 RECORDED DISCS • PLAYS CD-R & CD-RW DISCS • PLAYS JPEG PHOTO DISCS • INCLUDES RECHARGEABLE BATTERY FOR PORTABLE USE ANYWHERE • CONNECTS TO YOUR LARGER SCREEN HOME TV PLEASE READ CAREFULLY BEFORE USE IB-PDV708U-WU-E-011706.pmd MODEL PDV-708U IB-PDV708U-WU-E-011706 2/20/2006, 2:07 PM...

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS WARNINGS WARNINGS The exclamation mark within a triangle is a warning sign alerting the user to important instructions accompanying the product. The lightning flash with arrowhead symbol within a triangle is a warning sign alerting the user to “dangerous voltage” inside the unit. To reduce the risk of electric shock, do not remove the cover.

  • Page 3: Included Accessories

    SAFETY INSTRUCTIONS CAUTION: 1. Do not operate the system in an enclosed cabinet and allow about 5cm (2inches) of free space all around the DVD player for adequate ventilation. 2. No naked flame sources, such as lighted candles, should be placed on the apparatus. 3.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS • Getting Started: Safety Instructions------------------------------------------------------------------------------------------1 Included Accessories ------------------------------------------------------------------------------------2 Location of Controls --------------------------------------------------------------------------------------4 Power Supply ----------------------------------------------------------------------------------------------7 Remote Control Operation -----------------------------------------------------------------------------8 Notes on Discs --------------------------------------------------------------------------------------------9 • Basic Operation: 1. Basic Play----------------------------------------------------------------------------------------------10 2. Using the Search Functions---------------------------------------------------------------------11 3. Pause Function and Step Play-----------------------------------------------------------------11 4.

  • Page 5: Location Of Controls

    LOCATION OF CONTROLS Front View 1. TFT LCD SCREEN – Provides a high resolution picture. 2. SPEAKERS – Provides high quality stereo sound. 3. AUDIO BUTTON – Press to select the audio channel (or director’s cut channel). 4. DISPLAY BUTTON – Press to view the disc information and times. 5.

  • Page 6: Right Side View

    LOCATION OF CONTROLS Right Side View 1. PHONES JACK – Insert your headphones (not included) to enjoy the sound without disturbing others. 2. VIDEO/AUDIO OUT JACK – Connects the DVD player to your TV using the A/V cable (included). 3. S-VIDEO JACK – Connects the DVD player to your TV using an S-Video cable (S-Video cable is not included).
  • Page 7 LOCATION OF CONTROLS REMOTE CONTROL SCREEN STANDBY DISPLAY SETUP ON/OFF VOLUME REPEAT MENU CLEAR STOP SUBTITLE PLAY TITLE AUDIO SLOW BACKWARD FORWARD PREVIOUS NEXT ANGLE ZOOM PROGRAM SEARCH 12. FORWARD BUTTON - Press to start fast forward playback. 13. ANGLE BUTTON – In DVD mode, press to select the desired angle (if present on the DVD). 14.

  • Page 8: Power Supply

    POWER SUPPLY You can power this portable DVD player by connecting the AC adaptor or by the rechargeable battery (both included). A. Using the AC adaptor This player is supplied with an AC adapter for powering the unit and charging the battery.

  • Page 9: Remote Control Operation

    Working conditions and precautions for the rechargeable battery • New batteries should be fully charged before initial use (usually 12 hours for the first time). • Battery should be changed by an adult for safety. • Battery should only be used and charged when temperatures are between 32 -100 •...

  • Page 10: Notes On Discs

    NOTES ON DISCS Discs that can be played DISC TYPE & LOGO MARK DVD Video (Region 2) DVD-R JPEG disc Music CD CD-R disc CD-RW disc MP3 disc NOTE: A hand symbol “ ” may appear on the screen when pressing some buttons. A “ means that the operation is not permitted by the DVD player of the disc in that mode or at that time, sometimes the set needs to be in stop mode or other mode for that button to work.

  • Page 11: Basic Play

    1. BASIC PLAY Press the set OPEN button and lift the LCD screen. Slide the DVD player’s POWER switch to the ON position, the DVD logo (start-up picture) will appear on the screen. Some discs will start playing automatically, and others will display the Disc Contents Menu on the screen.

  • Page 12: Using The Search Functions

    2. USING THE SEARCH FUNCTIONS During play, you can search quickly through a chapter or track. Search through a chapter or a track During play, press the FORWARD speed changes as follows: FORWARD X2 FORWARD X4 PLAY During play, press the BACKWARD search speed changes as follows: BACKWARD X2 PLAY Y...

  • Page 13: Programmed Play

    4. REPEAT PLAY NOTE: When you select “A TO B” repeat play: 1. Press the REPEAT button until “REPEAT A- ” appears at the beginning of the segment (point A) you want to play repeatedly. 2. Press REPEAT button again at the end of the segment (point B), “REPEAT A-B” will appear on the display.

  • Page 14: Search For Preferred Play

    6. SEARCH FOR PREFERRED PLAY To select a scene with the title, the chapter, the track number and the time during play. Press the SEARCH button on the remote during play, the screen will show as on the right: Move the LEFT & RIGHT DIRECTION buttons ( &...

  • Page 15: Slow-Motion Play

    8. SLOW-MOTION PLAY A disc can also be played in slow-motion. Each time you press the SLOW button on the remote during play, the playback speed will change as follows: SF 1/2 SF 1/3 SF 1/4 Press the PLAY button to resume normal play from any slow-motion mode. NOTE 1: Sound will be silent during slow motion play.

  • Page 16: Displaying Disc Information

    12. DISPLAYING DISC INFORMATION If you want to know the information of the disc during play, press the DISPLAY button on the remote or on the set, the disc information will appear on the screen’s top as shown below: For DVD Play DVD TT 1/2 CH 6/12 o)) 1/3ENG 5.1CH...

  • Page 17: Mp3 Disc Operation

    13. MP3 DISC OPERATION This allows you to play your MP3 audio recorded disc you made on this set. Load your recorded MP3 disc into the player, a menu will show on the screen. Select the desired file by pressing the UP or DOWN button. Press the OK button to open the file.

  • Page 18: System Connections

    SYSTEM CONNECTIONS This DVD player can also be used to play movies on your larger screen TV. When playing on your TV, you may fold the screen down to shut off the TFT LCD display. Always ensure when connecting cables, the DVD player, TV and any other electrical equipment are turned off and not plugged into the mains (AC).

  • Page 19: Connection System Connections

    For TV Connection SYSTEM CONNECTIONS Connecting to a digital home cinema system using a coaxial cable Refer to your home cinema system’s manual before connection. For Video, insert the 3.5mm plug into the VIDEO/AUDIO OUT jack on your DVD player and the video plug into the TV’s VIDEO jack.

  • Page 20: Watching A Dvd On Your Tv

    WATCHING A DVD ON YOUR TV After all the connections have been done, please follow steps below to watch a DVD on your TV. Make sure all the products are plugged back into the AC (mains) power. Press the set OPEN button and lift the LCD screen. Slide the DVD player’s POWER switch to the ON position, the DVD logo (start-up picture) will appear on the screen.

  • Page 21: Initial Setting

    INITIAL SETTING When using the set for the first time, you may need to set some of the settings and adjustments according to your TV and favorite preferences. You can get to the SETUP menu by following the below steps. Press the SETUP button, a SETUP menu like right will appear on the TV screen.

  • Page 22: Selecting The Tv Type

    INITIAL SETTING Selecting the TV TYPE Select the aspect ratio of the movie to match the LCD screen and your TV set. There are three types of screen sizes you may select. NOTE: If your DISC is not encoded to allow you to change the aspect ratio, the TV display cannot be changed.

  • Page 23: Language Setup (Osd, Audio, Subtitle & Menu)

    INITIAL SETTING LANGUAGE SETUP (On Screen Display, AUDIO, SUBTITLE & MENU) These items allow you to preset the OSD language (OSD = On Screen Display), audio language, subtitle language, and menu language that will always be used for every disc on this player (if the language selected is available). NOTE 1: If the language selected is not available on the disc, the original language designated by each disc will be selected.

  • Page 24: Precautions

    PRECAUTIONS Safety • As the laser beam used in the DVD player may be harmful to the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only (it is perfectly safe if you don’t unscrew and open the cabinet).

  • Page 25: Trouble Shooting

    TROUBLE SHOOTING Symptom No power. • Play fails to start even when PLAY is pressed. • Play starts but then stops immediately. No image on the LCD screen. No picture on the TV’s screen. No sound from your TV or speakers. The picture is distorted.
  • Page 26 TROUBLE SHOOTING Symptom The REMOTE CONTROL unit does not work. No rapid advance or rapid reverse play. Cabinet vibrates or hums. A specific disc dose not play. The player’s controls don’t work or no power No sound during fast forward or other speed functions.

  • Page 27: Glossary

    TROUBLE SHOOTING Symptom Can not copy discs to VHS video tapes. Display shows num- bers on top of screen. Foreign language is heard on the disc. Foreign language is seen in menus. GLOSSARY TITLE The longest sections of a picture or a music piece on a DVD, or a movie, etc..

  • Page 28: Specifications

    SPECIFICATIONS General Description 8.4 " TFT LCD screen size: Power source: AC 100 – 240V, 50/60Hz Power consumption: 16 Watts [normal household current] (approx. 3W when the set is in the standby mode). Signal system: PAL/NTSC TV system 1.0 Vp-p Video output level: 1 Vrms (1 kHz, 0dB) Audio output level:...
