PORTABLE DVD PLAYER

•
PLAYS DVDs
•
PLAYS ALL AUDIO CDs
•
PLAYS MP3 RECORDED DISCS
•
PLAYS CD-R & CD-RW DISCS
•
PLAYS JPEG PHOTO DISCS
•
INCLUDES RECHARGEABLE BATTERY FOR
PORTABLE USE ANYWHERE
•
CONNECTS TO YOUR LARGER SCREEN HOME TV
(cable included)
IB-PDV705-WM-E-010506.pmd

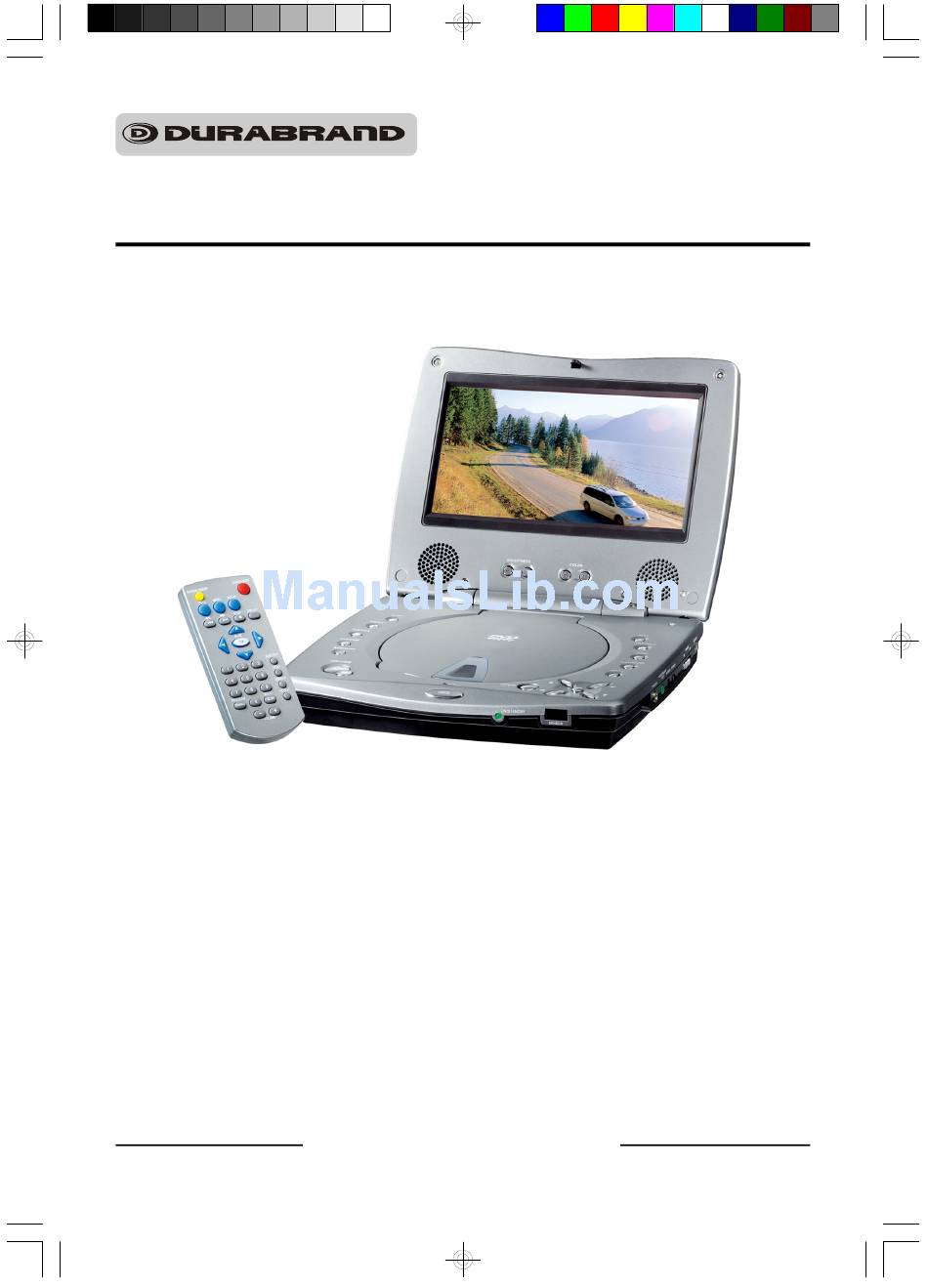

INSTRUCTION MANUAL
PLEASE READ CAREFULLY BEFORE USE
1
MODEL PDV-705
IB-PDV705-WM-E-010506
4/3/2006, 9:24 AM

Advertisement

Table of Contents
loading

Related Manuals for Durabrand PDV-705

Summary of Contents for Durabrand PDV-705

  • Page 1: Portable Dvd Player

    PLAYS CD-R & CD-RW DISCS • PLAYS JPEG PHOTO DISCS • INCLUDES RECHARGEABLE BATTERY FOR PORTABLE USE ANYWHERE • CONNECTS TO YOUR LARGER SCREEN HOME TV (cable included) PLEASE READ CAREFULLY BEFORE USE IB-PDV705-WM-E-010506.pmd MODEL PDV-705 IB-PDV705-WM-E-010506 4/3/2006, 9:24 AM...

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THE PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

  • Page 3: Included Accessories

    CLASS 1 LASER PRODUCT as stated on the bottom of the set. IB-PDV705-WM-E-010506.pmd Included Accessories The following items are included with your DVD player: - Remote Control - AAA Batteries (2) - Rechargeable battery - AC adaptor - Audio/Video Cables - User’s Guide...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS • Getting Started: Safety Instructions------------------------------------------------------------------------------------------1 Location of Controls --------------------------------------------------------------------------------------4 Power Supply ----------------------------------------------------------------------------------------------7 Remote Control Operation -----------------------------------------------------------------------------8 Notes on Discs ---------------------------------------------------------------------------------------------9 • Basic Operation: 1. Basic Play----------------------------------------------------------------------------------------------10 2. Using the Search Functions---------------------------------------------------------------------11 3. Selecting Audio Mode---------------------------------------------------------------------------11 4. Change Subtitle Language---------------------------------------------------------------------11 5.

  • Page 5: Location Of Controls

    – Stops playback, press twice for full stop. 15. PLAY/PAUSE BUTTON 16. SETUP BUTTON – Press to display the DVD player’s setup menu. 17. DIRECTION BUTTONS – Used to select options and DVD menus and MP3 tracks. 18. OK BUTTON – Press to confirm a selection.

  • Page 6: Right Side View

    1. PHONES JACK – Insert your headphones (not included) to enjoy the sound without disturbing others. 2. VIDEO/AUDIO OUT JACK – Connects the DVD player to your TV using the A/V cable (included). 3. S-VIDEO JACK – Connects the DVD player to your TV using an S-Video cable (S-Video cable is not included).

  • Page 7: Remote Control

    VOLUME 11. ON/STANDBY button – Press to turn the set ON or STANDBY. 12. SETUP button – Press to display the DVD player’s setup menu. 13. DISPLAY button – Press this button to view the elapsed time, title or chapter information and the track numbers during play.

  • Page 8: Power Supply

    3. Slide and lift the battery out. To charge the battery 1. Insert the adaptor’s plug into the DC IN jack on the DVD player and connect the adaptor to a wall outlet. After 5 seconds, the battery LED indicator will turn on.

  • Page 9: Remote Control Operation

    Working conditions and precautions for the rechargeable battery • New batteries should be fully charged before initial use. • Battery should be changed by an adult for safety. • Battery should only be used and charged when temperatures are between 32 -100 •...

  • Page 10: Notes On Discs

    ” may appear on the screen when pressing some buttons. A “ means that the operation is not permitted by the DVD player of the disc in that mode or at that time, sometimes the set needs to be in stop mode or other mode for that button to work.

  • Page 11: Basic Play

    1. BASIC PLAY Press the set OPEN button and lift the LCD screen. Slide the DVD player’s POWER switch to the ON position, the DVD logo (start-up picture) will appear on the screen. Some discs will start playing automatically, and others will display the Disc Contents Menu on the screen.

  • Page 12: Using The Search Functions

    Note 1: If you press the AUDIO button for several times, but the desired language is not selected, it means a second language is not available on the disc. Note 2: This DVD player does not support DTS decoding. For discs with DTS decoding, please press the AUDIO button to select another audio output mode, such as AC-3 until you hear the sound.

  • Page 13: Displaying Disc Information

    5. DISPLAYING DISC INFORMATION If you want to know the information of the disc during play, press the DISPLAY button on the remote or on the set, the disc information will appear on the screen’s top as shown below: For DVD Play DVD TT 1/2 CH 6/12 o)) 1/3ENG 5.1CH...

  • Page 14: Repeat Play

    2. Press REPEAT button again at the end of the segment (point B), “REPEAT A-B” will appear on the display. 3. The DVD player will automatically play the selected segments A to B over and over till you press REPEAT button again.

  • Page 15: Zoom Play

    8. ZOOM PLAY This function allows you to do a minimal zoom into a picture as well as shift the zoom point. Press the ZOOM/SLOW button on the remote repeatedly to enlarge or reduce a picture. The display will show as follows: ZOOM 2 ZOOM 3 ZOOM 4...

  • Page 16: Viewing From A Desired Angle

    10. VIEWING FROM A DESIRED ANGLE Some DVD video discs may contain scenes which have been shot simultaneously from a number of different camera angles. The jacket or case of discs that are recorded with angles will be marked with this icon: these different angles by pressing the PROGRAM/ANGLE button on the remote.

  • Page 17: Mp3 Disc Operation

    12. MP3 DISC OPERATION This allows you to play your MP3 audio recorded disc you made on this set. Load your recorded MP3 disc into the player, a menu will show on the screen. Select the desired file by pressing the UP or DOWN button. Press the OK button to open the file.

  • Page 18: System Connections

    SYSTEM CONNECTIONS This DVD player can also be used to play movies on your larger screen TV. When playing on your TV, you may fold the screen down to shut off the TFT LCD display. Always ensure when connecting cables, the DVD player, TV and any other electrical equipment are turned off and not plugged into the mains (AC).
  • Page 19 Connecting to a digital home theater system using a coaxial cable Refer to your home theater system’s manual before connection. For Video, insert the 3.5mm plug into the VIDEO/AUDIO OUT jack on your DVD player and the video plug into the TV’s VIDEO jack.

  • Page 20: Watching A Dvd On Your Tv

    TV’s screen. Press the OPEN button on the DVD player to open the disc door. Place a disc gently on the tray with the label side up and close the door by pushing it down. The DVD player starts to read the disc’s table of contents (this may take a few seconds).

  • Page 21: Initial Setting

    Press the SETUP button, a SETUP menu like right will appear on the TV screen. Use the buttons on the DVD player or on the remote control to highlight your selection. Press the OK button to confirm your selection. When the setting has been done, press the SETUP button to exit the SETUP mode.

  • Page 22: Selecting The Tv Type

    INITIAL SETTING Selecting the TV TYPE Select the aspect ratio of the movie to match the LCD screen and your TV set. There are three types of screen sizes you may select. NOTE: If your DISC is not encoded to allow you to change the aspect ratio, the TV display cannot be changed.

  • Page 23: Language Setup (Osd, Audio, Subtitle & Menu)

    SUBTITLE button (refer to pages 11). AUDIO SETUP (DIGITAL OUT) Your DVD player can be connected to a home theater system with coaxial digital audio jack to realize high quality sound effects, digital audio output allows you to select SPDIF/RAW or SPDIF/ PCM digital signal.

  • Page 24: Precautions

    PRECAUTIONS Safety • As the laser beam used in the DVD player may be harmful to the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only (it is perfectly safe if you don’t unscrew and open the cabinet).

  • Page 25: Trouble Shooting

    4. Check if the proper AV input is selected on your TV set video inputs (some TV sets have 3 or 4 different inputs). 5. Make sure both the TV and DVD player are on. 6. Make sure you use a 3 section 3.5 mm plug cable as supplied.
  • Page 26 6. Adjust volume setting on your TV’s remote. 7. Make sure the headphones are detached from the DVD player. 8. The movie is paused, press play. 9. The movie is in search or fast play or other speed related play.
  • Page 27 TROUBLE SHOOTING Symptom No sound during fast forward or other speed functions. Cannot change a menu item. The LCD picture is not 16:9 widescreen even you have set the TV TYPE to 16:9. Audio soundtrack and/ or subtitle language is not at the initial settings.

  • Page 28: Glossary

    JPG. VIDEO INPUT This is a jack which accepts the picture portion of a signal. In order to use this DVD player, your TV set must have an S-Video (better) or Video input (standard) jack.

  • Page 29: Specifications

    SPECIFICATIONS General Description 7" TFT LCD screen size: Power source: AC 100 – 240V, 50/60Hz Power consumption: 20 Watts [normal household current] (approx. 3W when the set is in the standby mode). Signal system: NTSC TV system 1.0 Vp-p Video output level: 1 Vrms (1 kHz, 0dB) Audio output level: Dimensions (Approx.):...

  • Page 30: Limited Warranty

    During the initial 1 year period after original purchase, we will service the set that is returned to LENOXX ELECTRONICS CORP., prepaid, at no charge. After the initial 1 year period expires, we will exchange, at no charge, any part that is defective, but will charge for the cost of labor, return postage paid by Lenoxx.
