Model Included
SHG
CAUTION: Please
use this setup
procedure before
attempting to use this
grinder. Failure to follow the
instructions can result in
injury or the voiding of the
warranty.
ISO 9001:2008 REGISTERED
WILBUR CURTIS CO., INC.
6913 West Acco Street
Montebello, CA 90640-5403
For the latest information go to
www.wilburcurtis.com
Tel: 800-421-6150
Fax: 323-837-2410
W
ilbur
Important Safeguards & Symbols
This appliance is designed for commercial use. Any servicing other than cleaning and
maintenance should be performed by an authorized Wilbur Curtis service technician.
• Do NOT immerse the unit in water or any other liquid.
• To reduce the risk of fire or electric shock, do NOT open top panel. No user serviceable
parts inside.
• Keep hands and other items away from hot parts of unit during operation.
• Never clean with scouring powders or harsh chemicals.
SYMBOLS
WARNINGS – To help avoid personal injury
SETUP STEPS
1. Install the grinder on a firm, level base in a location where it can be connected to a
grounded electrical outlet of 120VAC, rated at 15 amps minimum.
2. Test the unit by running some whole bean coffee through the grinder. If any problems
are encountered, refer to the troubleshooting section complete at www.wilburcurtis.com
or call Technical Support at 800-995-0417.

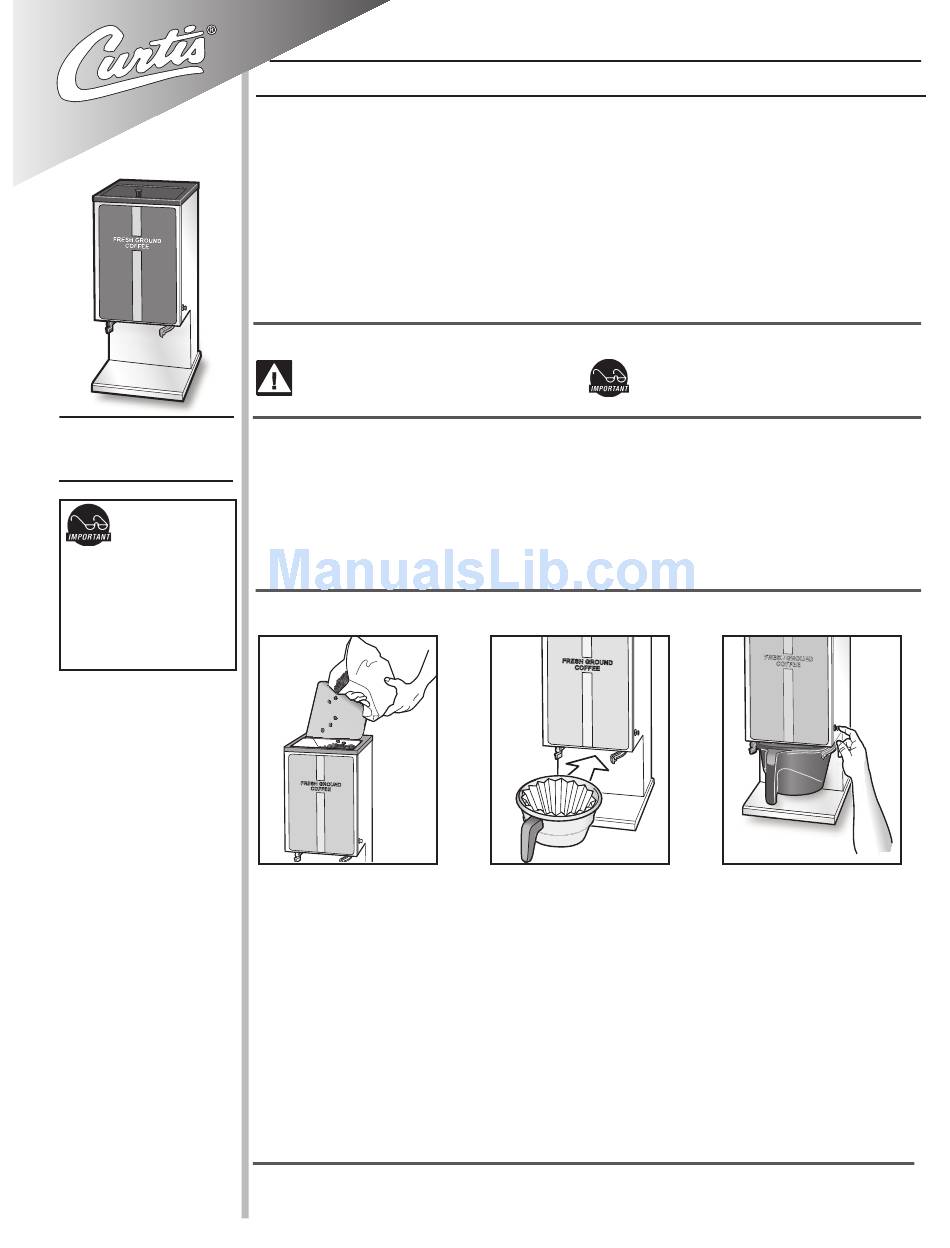

OPERATING INSTRUCTIONS
1. Lift open the top cover
of the grinder and fill
with fresh whole bean
coffee.
Close the cover.
FOR THE LATEST SPECIFICATIONS AND INFORMATION GO TO WWW.WILBURCURTIS.COM
C
C
urtis
ompany
Service Manual – SHG
2. Place a new paper fil-
ter into the brew cone
and insert the brew
cone into the basket
holder arms on the
grinder.
, i
.
nC
Important Notes/Cautions – from the factory
3. On the right side of
the grinder, press
the grind switch. The
grinder will start. It will
stop at the set volume.
Make sure the mo-
tor comes to a stop
before removing the
brew cone.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Curtis SHG
Summary of Contents for Curtis SHG
- Page 1 Important Safeguards & Symbols This appliance is designed for commercial use. Any servicing other than cleaning and maintenance should be performed by an authorized Wilbur Curtis service technician. • Do NOT immerse the unit in water or any other liquid.
- Page 2 ADJUSTING THE GRINDS* 1. Empty the hopper of coffee beans. Run the grinder for a short time to clear grinding burrs of coffee. 2. Open the housing cover (10) to locate the adjustment screw (8) and lock nut (7). With a wrench, loosen the lock nut. 3.
-
Page 3: Parts Diagram
WC-9165 COVER, FRONT SHG WC-3891 LABEL, SHG WC-101 SWITCH, ON/OFF NON-LIT SPST MOMENTARY Motor & Base WC-628 TIMER, 120V .5-60 SEC SHG WC-9134 CAP SEAL, S/S WC-1504 CIRCUIT BREAKER, 10A WC-3503 LEG, 3/8”-16 STUD SCREW BMPR WC-3518 LEG, GLIDE 3/8”-16 STUD SCREW... -
Page 4: Rough-In Drawing
PARTS DIAGRAM MOTOR ASSY DESCRIPTION ITEM № PART № WC-9135 MOTOR SLICING GRINDER ASSY 120VAC WC-37283 KIT, GRINDER CHUTE DHG/ILGD/SHG WC-91026 CAPACITOR, COFFEE GRINDER ASSY WC-91024 SHEAR DRIVE COFFEE GRINDER WC-9107-6 DISC, SHEAR COFFEE GRINDER 6PCS WC-91015 SCREW & THRUST PIN ADJUSTING ASSY... - Page 5 ELECTRICAL SCHEMATIC – SHG TIMER SETTING SHG 1. Take off timer cover, located behind hopper. Remove the four screws holding the cover in place. The timer is found inside this cover. Also refer to the illus- trated parts diagram on page 3.
- Page 6 Curtis equipment that have not been purchased from the Wilbur Curtis Company, Inc. The Wilbur Curtis Company will not accept any responsibility if the following conditions are not met. The warranty does not cover and is void under the following circumstances: 1) Improper operation of equipment: The equipment must be used for its designed and intended purpose and function.
