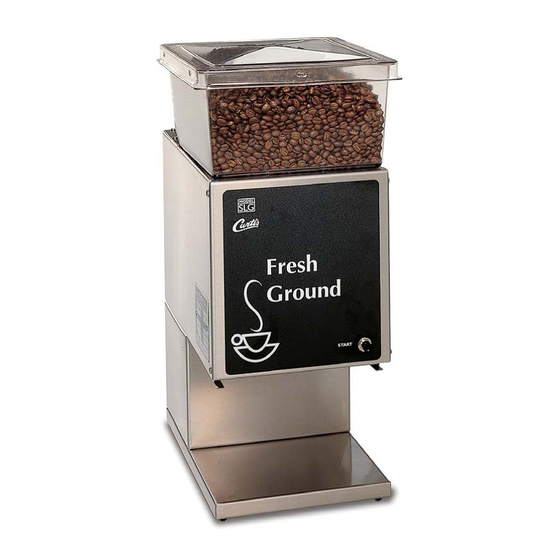

- Page 1 USER GUIDE Automatic Coffee Grinder READ AND SAVE THESE INSTRUCTIONS NOTICE TO INSTALLER: Please leave this booklet with the machine.
-
Page 2: Table Of Contents
................................................................................................ES92 ............................................................................Contact Information Wilbur Curtis Co., Inc. 6913 Acco Street | Montebello, CA 90640 US Phone: 323-837-2300 | Toll Free: 800-421-6150 Email: csrassistance@wilburcurtis.com | Web: www.wilburcurtis.com . - 4:00 . PT Email: techsupport@wilburcurtis.com 030818NC... -
Page 3: Fs49
KEY FEATURES/SPECIFICATIONS/SYSTEM REQUIREMENTS FS49 Key Features • Easy to Use - Fully automatic operation. • • Highly Accurate and Consistent Throw - For even distribution, dust reduction. • Constant, uniform grind. • Powerful 1/2 hp Motor - Equipped with safety circuit breaker. Coffee Grinder Single 1 PH 120 V... -
Page 4: Is3
INSTRUCTIONS could result in personal injury or void the warranty. • This appliance is designed for commercial use. Any service other than cleaning and preventive maintenance should be performed by an authorized Wilbur Curtis service technician. • serviceable parts inside. - Page 5 IMPORTANT SAFEGUARDS CE Requirements • This appliance must be installed in locations where it can be overseen by trained personnel. • • • • This appliance must not be cleaned by water jet. • instruction concerning use of the appliance in a safe way and if they understand the hazards involved. •...
-
Page 6: Ii24
INSTALLATION INSTRUCTIONS II24 WARNING: WARNING: properly grounded. IMPORTANT: Installation Instructions Installation Requirements • A secure surface capable of supporting the weight of the appliance. • For units without an attached cord set: Appropriately sized, UL listed, grounding type power cable to meet enough •... -
Page 7: Oi36
OPERATING INSTRUCTIONS OI36 The grinder is factory preset for optimal performance. Replace the lid. the brew basket. Slide the brew basket all basket rails. basket. -
Page 8: Ci22
CLEANING INSTRUCTIONS CI22 WARNING: Disconnect the power cord before cleaning. WARNING: DO NOT immerse the grinder in water or any other liquid. Avoid spilling liquid into the grind housing during cleaning. NOTICE - Do not use cleaning liquids, compounds or powders containing chlorine (bleach) or corrosives. USE OF THESE PRODUCTS WILL VOID THE WARRANTY. - Page 9 ROUGH-IN DRAWINGS RD55 14.52 in [36.9 cm] 9.15 in [23.2 cm] 20.66 in [52.5 cm] 13.80 in 8.00 in [35.1 cm] [20.3 cm] SLG, ROUGH-IN DRAWING 030818NC...
- Page 10 ILLUSTRATED PARTS/RECOMMENDED PARTS IP93 SLG - Main Chassis - Exploded View Grinder motor assembly, see section IP96 SLG, ILLUSTRATED PARTS/RECOMMENDED PARTS 082118A...
- Page 11 ILLUSTRATED PARTS/RECOMMENDED PARTS IP93 SLG - Main Chassis - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-1408 1 WC-9178 COVER, HOPPER SLG CORD GRIP, 7/8” O.D. WC-1419 2 WC-38027 LABEL, SW PANEL SLG CORD GRIP, 13/16” O.D. THREAD, WC-13300 1 WIRE, HARNESS SLG-10/SHG-10 (NOT SHOWN) WC-1504...
- Page 12 ILLUSTRATED PARTS LIST IP96 Grinder Motor Assembly Grinder Motor Assembly - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-37283* KIT, GRINDER CHUTE DHG/ILGD/SH WC-91050 BURR, COMPLETE SET SLICING (NEWER UNITS) MOTOR, SLICING GRINDER ASSY 120V SLG/DHG/ BURR, SET CRUSH HIGH FLOW ILGD /TL-ILGD WC-9135 WC-91045...
-
Page 13: Es92
ELECTRICAL SCHEMATICS ES92 ELECTRICAL RATING TABLE # of Voltage Amps Hertz Model Conductor Wires SHG-10 50/60 SLG-10 50/60 ELECTRICAL RATING TABLE Voltage Amps Hertz # of Conductor PART # Model # Wires WD-SHG-30 SHG-30 50/60 WD-SLG-30 SLG-30... - Page 14 TROUBLESHOOTING GUIDE TG26 WARNING: Electric Shock Hazard - the procedures in this TROUBLESHOOTING GUIDE are to be Troubleshooting Guidelines • ELECTRICAL SCHEMATIC. • Grinder Does Not Grind Coffee - Motor Does Not Run ELECTRICAL SCHEMATIC Grinder Does Not Grind Coffee - Motor Runs Replacing a Broken Shear Disk Coffee Too Course or Too Fine Grinder Adjustment Procedure...
- Page 15 TROUBLESHOOTING GUIDE TG26 Setting the Timer WARNING: Electric Shock Hazard - Ounces Ounces Seconds Seconds (Estimated) (Estimated) 10.0 11.3 TIMER SETTINGS IMPORTANT:...
- Page 16 TROUBLESHOOTING GUIDE TG29 Grinder Adjustment Procedure WARNING: Electric Shock Hazard - The grinder can be adjusted to make the ground coffee more Setting the Timer Adjustment screw Lock nut Replacing a Broken Shear Disk Housing Burr/ worm feed Look for something that could have gotten caught inside the Shear drive Broken shear...
- Page 17 Return Merchandise Authorization (RMA): All returned equipment must be properly re-packaged in the original carton and received by Curtis within 45 days following the issuance of a RMA. NO UNITS OR PARTS WILL BE ACCEPTED WITHOUT A RETURN MERCHANDISE AUTHORIZATION (RMA).
