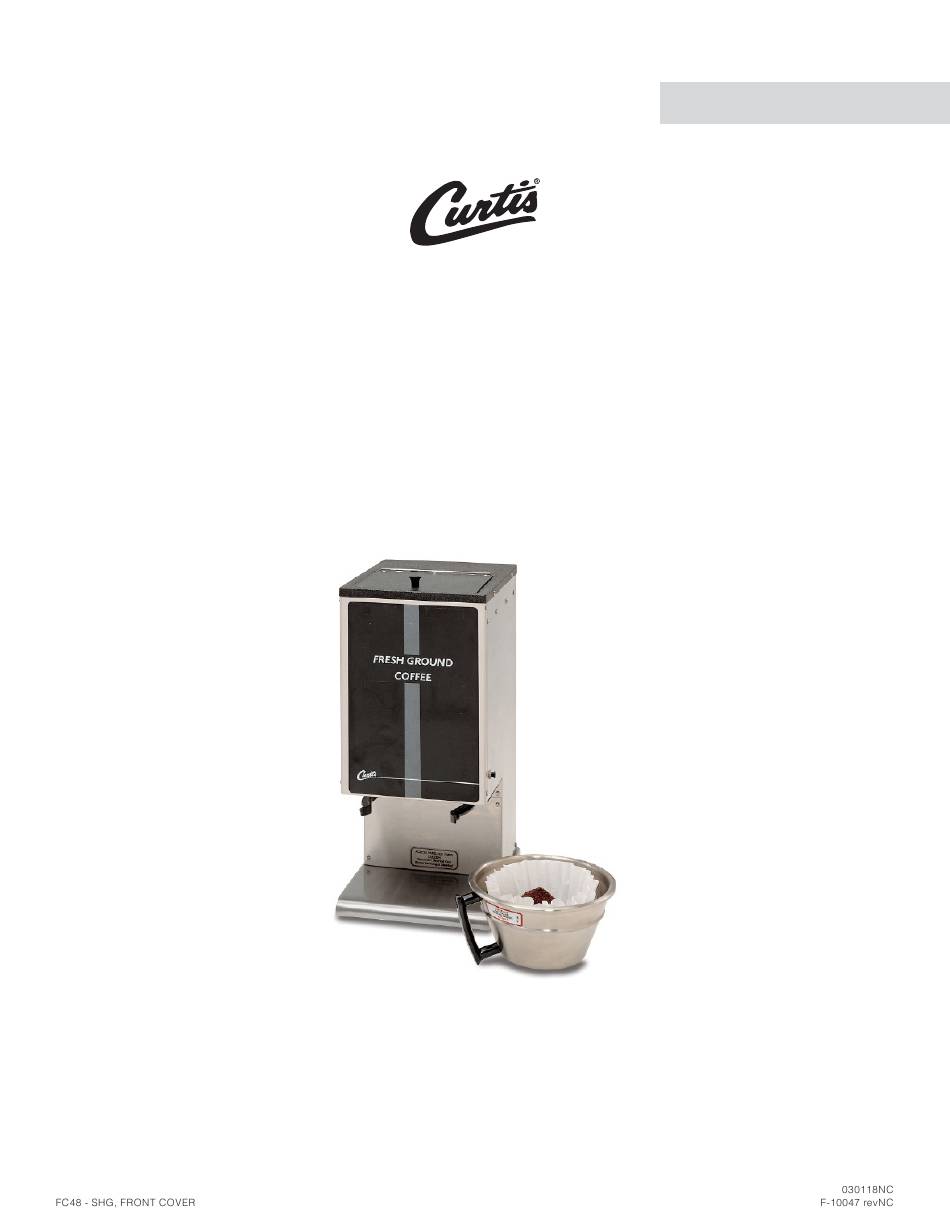

- Page 1 USER GUIDE SHG Series Automatic Coffee Grinder READ AND SAVE THESE INSTRUCTIONS NOTICE TO INSTALLER: Please leave this booklet with the machine.
-
Page 2: Table Of Contents
............................................................................................................................................................................. Contact Information Wilbur Curtis Co., Inc. 6913 Acco Street | Montebello, CA 90640 US Phone: 323-837-2300 | Toll Free: 800-421-6150 Email: csrassistance@wilburcurtis.com | Web: www.wilburcurtis.com . - 4:00 . PT Email: techsupport@wilburcurtis.com 030118NC... -
Page 3: Fs48
KEY FEATURES/SPECIFICATIONS/SYSTEM REQUIREMENTS FS48 Key Features • Easy to Use - Fully automatic operation. • • Highly Accurate and Consistent Throw - For even distribution, dust reduction. • Constant, uniform grind. • Powerful 1/2 hp Motor - Equipped with safety circuit breaker. Coffee Grinder Single 1 PH 120 V... -
Page 4: Is3
• This appliance is designed for commercial use. Any service other than cleaning and preventive maintenance should be performed by an authorized Wilbur Curtis service technician. • To reduce the risk of re or electric shock, DO NOT open the service panels. There are no user serviceable parts inside. - Page 5 IMPORTANT SAFEGUARDS CE Requirements • This appliance must be installed in locations where it can be overseen by trained personnel. • For proper operation, this appliance must be installed where the temperature is between 5°C to 35°C. • This appliance is not suitable for outdoor use. •...
-
Page 6: Ii24
INSTALLATION INSTRUCTIONS II24 WARNING: WARNING: properly grounded. IMPORTANT: Installation Instructions Installation Requirements • A secure surface capable of supporting the weight of the appliance. • For units without an attached cord set: Appropriately sized, UL listed, grounding type power cable to meet enough •... - Page 7 INSTALLATION INSTRUCTIONS II24 Connecting the Power Cord to A Junction Box (units with pre-installed power cord, if applicable) WARNING: the circuit breaker panel before connecting the power cable. Lock out and tag the circuit breaker. ELECTRICAL SCHEMATIC Power cable from grinder Connect the Power Cable On units with a power connector on the back panel, compatible with the electrical outlet installed in the...
-
Page 8: Oi35
OPERATING INSTRUCTIONS OI35 The grinder is factory preset for optimal performance. Open the top cover and pour Close the lid. in whole coffee beans. the brew basket. Slide the brew basket all Push the START button on Wait for the grinder motor to the way back into the brew the right side of the unit. -
Page 9: Ci22
CLEANING INSTRUCTIONS CI22 WARNING: Disconnect the power cord before cleaning. WARNING: DO NOT immerse the grinder in water or any other liquid. Avoid spilling liquid into the grind housing during cleaning. NOTICE - Do not use cleaning liquids, compounds or powders containing chlorine (bleach) or corrosives. Cleaning the Grinder - As Needed ™... - Page 10 ROUGH-IN DRAWINGS RD54 14.70 in [37.3 cm] 10.16 in [25.8 cm] 9.75 in 13.38 in [24.8 cm] [34.0 cm] 29.63 in [75.2 cm] 21.71 in [55.1 cm] SHG, ROUGH-IN DRAWING 030518NC...
- Page 11 ILLUSTRATED PARTS/RECOMMENDED PARTS IP92 SHG - Main Chassis - Exploded View Grinder motor assembly, see section IP96 SHG, ILLUSTRATED PARTS/RECOMMENDED PARTS 081618A...
- Page 12 ILLUSTRATED PARTS LIST IP92 SHG - Main Chassis - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-9129 COVER, TOP ASSY SHG/ILGSS WC-9141 BASKET HOLDER WC-3891 LABEL, SHG WC-9155 SPRING FOR BASKET HOLDER WC-1390 1 HARNESS ASSY, SHG-10 (NOT SHOWN) WC-4813 SCREW, 5/16x5/8 LONG SHOULDER WC-1200 1...
- Page 13 ILLUSTRATED PARTS LIST IP96 Grinder Motor Assembly Grinder Motor Assembly - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-37283* KIT, GRINDER CHUTE DHG/ILGD/SH WC-91050 BURR, COMPLETE SET SLICING (NEWER UNITS) MOTOR, SLICING GRINDER ASSY 120V SLG/DHG/ BURR, SET CRUSH HIGH FLOW ILGD /TL-ILGD WC-9135 WC-91045...
- Page 14 ELECTRICAL SCHEMATICS ES92 ELECTRICAL RATING TABLE # of Voltage Amps Hertz Model Conductor Wires SHG-10 50/60 SLG-10 50/60 ELECTRICAL RATING TABLE Voltage Amps Hertz # of Conductor PART # Model # Wires WD-SHG-30 SHG-30 50/60 WD-SLG-30 SLG-30...
- Page 15 TROUBLESHOOTING GUIDE TG26 WARNING: Electric Shock Hazard - the procedures in this TROUBLESHOOTING GUIDE are to be Troubleshooting Guidelines • ELECTRICAL SCHEMATIC. • Grinder Does Not Grind Coffee - Motor Does Not Run ELECTRICAL SCHEMATIC Grinder Does Not Grind Coffee - Motor Runs Replacing a Broken Shear Disk Coffee Too Course or Too Fine Grinder Adjustment Procedure...
- Page 16 TROUBLESHOOTING GUIDE TG26 Setting the Timer WARNING: Electric Shock Hazard - Ounces Ounces Seconds Seconds (Estimated) (Estimated) 10.0 11.3 TIMER SETTINGS IMPORTANT:...
- Page 17 TROUBLESHOOTING GUIDE TG29 Grinder Adjustment Procedure WARNING: Electric Shock Hazard - The grinder can be adjusted to make the ground coffee more Setting the Timer Adjustment screw Lock nut Replacing a Broken Shear Disk Housing Burr/ worm feed Look for something that could have gotten caught inside the Shear drive Broken shear...
- Page 18 Return Merchandise Authorization (RMA): All returned equipment must be properly re-packaged in the original carton and received by Curtis within 45 days following the issuance of a RMA. NO UNITS OR PARTS WILL BE ACCEPTED WITHOUT A RETURN MERCHANDISE AUTHORIZATION (RMA).
