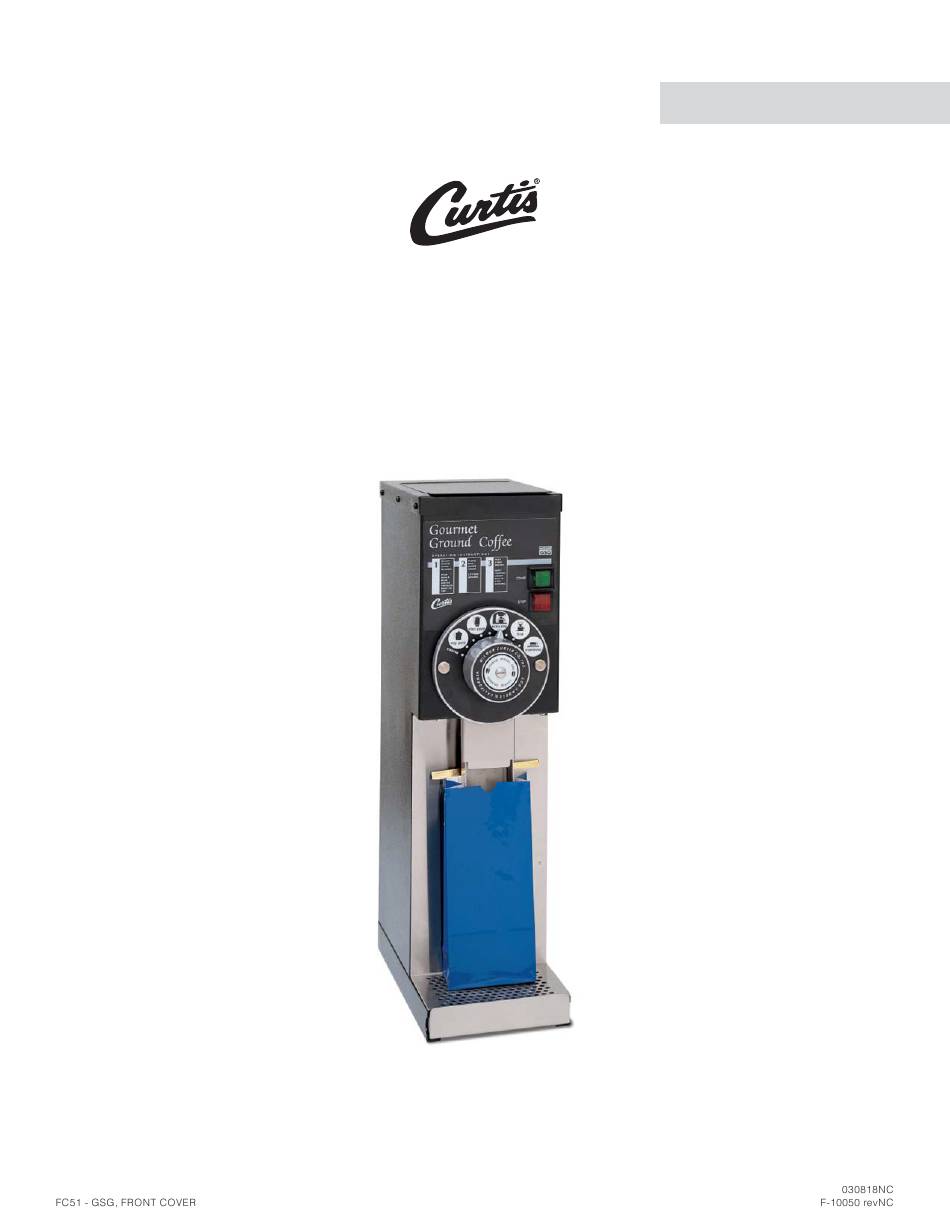

- Page 1 USER GUIDE GSG Series Automatic Coffee Grinder READ AND SAVE THESE INSTRUCTIONS NOTICE TO INSTALLER: Please leave this booklet with the machine.
-
Page 2: Table Of Contents
............................OI38 ..............................CI22 ..........................................................................................................................................Contact Information Wilbur Curtis Co., Inc. 6913 Acco Street | Montebello, CA 90640 US Phone: 323-837-2300 | Toll Free: 800-421-6150 Email: csrassistance@wilburcurtis.com | Web: www.wilburcurtis.com . - 4:00 . PT Email: techsupport@wilburcurtis.com 030818NC... -
Page 3: Fs51
KEY FEATURES/SPECIFICATIONS/SYSTEM REQUIREMENTS FS51 Key Features • Easy to Use - Fully automatic operation. • • Highly Accurate and Consistent Throw - For even distribution, dust reduction. • Constant, uniform grind. • Powerful 1/2 hp Motor - Equipped with safety circuit breaker. Coffee Grinder Single 1 PH 120 V... -
Page 4: Is3
INSTRUCTIONS could result in personal injury or void the warranty. • This appliance is designed for commercial use. Any service other than cleaning and preventive maintenance should be performed by an authorized Wilbur Curtis service technician. • serviceable parts inside. - Page 5 IMPORTANT SAFEGUARDS CE Requirements • This appliance must be installed in locations where it can be overseen by trained personnel. • • This appliance is not suitable for outdoor use. • • • This appliance must not be cleaned by water jet. •...
-
Page 6: Ii24
INSTALLATION INSTRUCTIONS II24 WARNING: WARNING: properly grounded. IMPORTANT: Installation Instructions Installation Requirements • A secure surface capable of supporting the weight of the appliance. • For units without an attached cord set: Appropriately sized, UL listed, grounding type power cable to meet enough •... - Page 7 INSTALLATION INSTRUCTIONS II24 Connecting the Power Cord to A Junction Box (units with pre-installed power cord, if applicable) WARNING: the circuit breaker panel before connecting the power cable. Lock out and tag the circuit breaker. ELECTRICAL SCHEMATIC Power cable from grinder Connect the Power Cable On units with a power connector on the back panel, compatible with the electrical outlet installed in the...
-
Page 8: Oi38
OPERATING INSTRUCTIONS OI38 Grinding Coffee The grinder is factory preset for optimal performance. Open the hopper lid and Close the lid underneath the spout and lift... - Page 9 OPERATING INSTRUCTIONS OI38 Adjusting the Grind Texture Set screws Adjustment screw...
-
Page 10: Ci22
CLEANING INSTRUCTIONS CI22 WARNING: Disconnect the power cord before cleaning. WARNING: DO NOT immerse the grinder in water or any other liquid. Avoid spilling liquid into the grind housing during cleaning. NOTICE - Do not use cleaning liquids, compounds or powders containing chlorine (bleach) or corrosives. USE OF THESE PRODUCTS WILL VOID THE WARRANTY. - Page 11 ROUGH-IN DRAWINGS RD57 7.25 in 7 1/4" [18.4 cm] 12.30 in 12 1/4" [31.2 cm] 25.63 in 25 5/8" [65.1 cm] 7.00 in 4.93 in 7" [17.8 cm] 4 7/8" [12.5 cm] 15.07 in 15 1/8" [38.3 cm] GSG, ROUGH-IN DRAWING 030118NC...
- Page 12 ILLUSTRATED PARTS/RECOMMENDED PARTS IP95 GSG - Main Chassis - Exploded View See Grinder Motor Assembly GSG, ILLUSTRATED PARTS/RECOMMENDED PARTS 070318A...
- Page 13 ILLUSTRATED PARTS LIST IP95 GSG - Main Chassis - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-149 SWITCH, PUSHBUTTON (GREEN)120V N.O. WC-435 RELAY, 120V 3POLE 15A USE ON GRINDERS WC-38036 LABEL, SW PANEL GSG WC-1504 BREAKER, CIRCUIT 10A 120/250 VAC WC-13124 1 HARNESS ASSY GSG-3BLK/RED...
- Page 14 ILLUSTRATED PARTS/RECOMMENDED PARTS IP95 Grinder Motor Assembly Grinder Motor Assembly - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-9170 COVER, HOUSING SCREW, 10-32 UNFx3/8 L BINDER HEAD CAP WC-4826 SCREW MOTOR, SLICING GRINDER ASSY 120V SLG/DHG/ WC-9135 WC-4613 SCREW, 5/16-18x1”...
- Page 15 ELECTRICAL SCHEMATICS ES94 ELECTRICAL RATING TABLE Voltage Amps Wa s Hertz # of Conductor Model Phase Wires 1001...
- Page 16 TROUBLESHOOTING GUIDE TG28 WARNING: Electric Shock Hazard - the procedures in this TROUBLESHOOTING GUIDE are to be Troubleshooting Guidelines • Use this TROUBLESHOOTING GUIDE ELECTRICAL SCHEMATIC. • Grinder Does Not Grind Coffee - Motor Does Not Run ELECTRIC SCHEMATIC Grinder Does Not Grind Coffee - Motor Runs Replacing a Broken Shear Disk Coffee Too Course or Too Fine Adjusting the Grind Texture...
- Page 17 TROUBLESHOOTING GUIDE TG28 Replacing a Broken Shear Disk Motor shaft Feed worm/ burr assembly Broken shear Spring Housing disk cover Slot Shear Selector drive knob Shear Slotted screw screws...
- Page 18 Return Merchandise Authorization (RMA): All returned equipment must be properly re-packaged in the original carton and received by Curtis within 45 days following the issuance of a RMA. NO UNITS OR PARTS WILL BE ACCEPTED WITHOUT A RETURN MERCHANDISE AUTHORIZATION (RMA).
