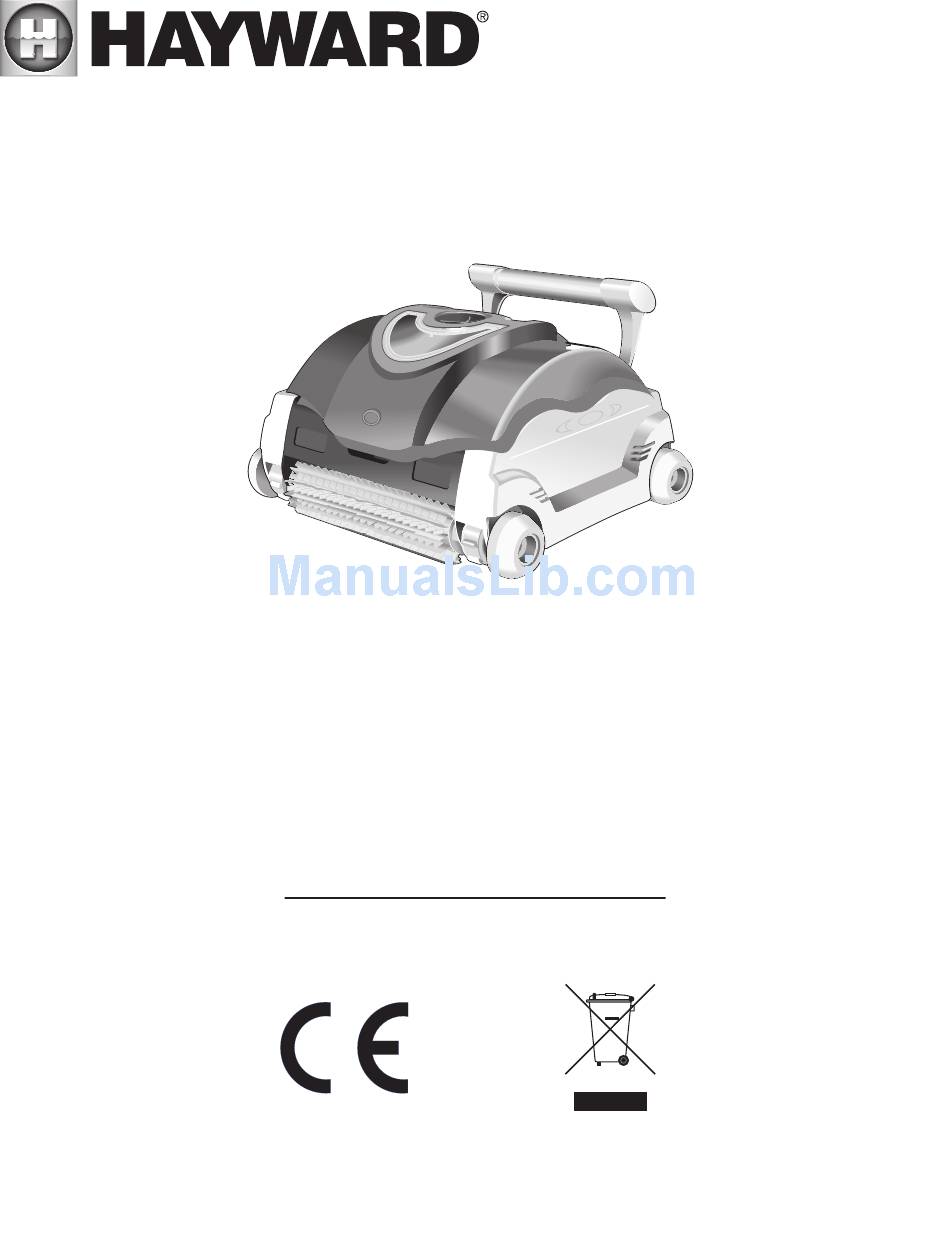

ISRC9740 - Rev F

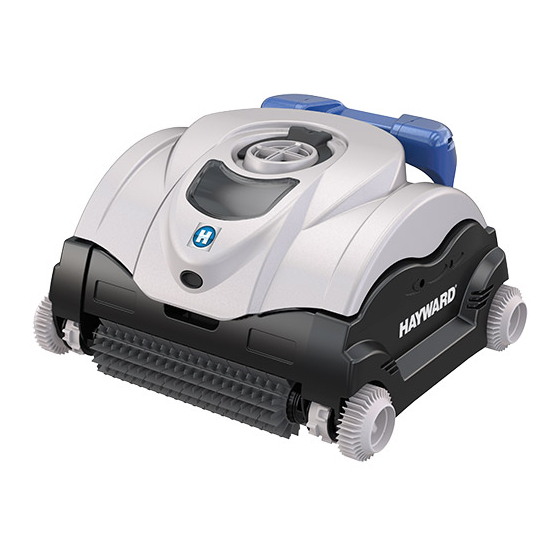

ROBOTIC CLEAnER
OWNER'S MANUAL
Hayward robotic cleaners represent the highest standard in design, performance, and quality. The
cleaner independently scrubs, vacuums, and filters your pool. It is completely automatic and requires
no installation, no attachments. Just drop it in and turn it on. Filter cleaning is much easier with the
top-access filter cartridge element. Adaptive Seek Control Logic (ASCL®) Microprocessor control
optimizes cleaning routine for each individual pool size and shape. Electronic Self-Diagnostics,
Overload Protection, and simple Direct Drive design with non-corrosive bearings provide high reliability.
SAVE THIS InSTRUCTIOn MAnUAL
HAYWARD POOL EUROPE - Parc Industriel de la Plaine de l'Ain - Allée des Chênes - 01150 Saint Vulbas - France
Advertisement
Table of Contents
Related Manuals for Hayward Ntech Evac-sharkvac
Summary of Contents for Hayward Ntech Evac-sharkvac
- Page 1 Electronic Self-Diagnostics, Overload Protection, and simple Direct Drive design with non-corrosive bearings provide high reliability. SAVE THIS InSTRUCTIOn MAnUAL HAYWARD POOL EUROPE - Parc Industriel de la Plaine de l’Ain - Allée des Chênes - 01150 Saint Vulbas - France...
- Page 2 WARnInG – Do not let children use or play with the cleaner. ⚠ WARnInG – Use only genuine Hayward replacement parts. ⚠ CAUTIOn – Regularly inspect the cleaner and hoses; do not use if damaged or if any rough edges are visible on the cleaner as this can cause damage to the pool.
-
Page 3: Consumer Information And Safety
⚠ WARnInG It is mandatory to allow a safety distance between the power supply and the pool as required by the current installation standard (3.5 m minimum). USE OnLY HAYWARD GEnUInE REPLACEMEnT PARTS Page 3 of 17 Robotic cleaner Rev. F... - Page 4 TIPS BEFORE USING YOUR UNIT! Dear Hayward Robotic Cleaner Owner: Thank you for choosing Hayward. In order to achieve optimal performance, please read and follow these steps: 1. Allow the cleaner the first 10 minutes of each use to calculate pool size and configuration. The normal programmed cycle is not designed to begin until after this period.
- Page 5 2 hours, you may shut the cleaner off manually by switching the power supply to the off position. Should a second cleaning cycle be required, switch OFF the power supply for 10 seconds and restart. (see Power Supply operating instructions) USE OnLY HAYWARD GEnUInE REPLACEMEnT PARTS Page 5 of 17 Robotic cleaner Rev. F...
- Page 6 Optimum operating water temperature range for the cleaner is 10ºC - 35ºC. Remove the cleaner from the pool after each use. Keeping the cleaner permanently in the pool may result in additional service requirements. USE OnLY HAYWARD GEnUInE REPLACEMEnT PARTS Page 6 of 17 Robotic cleaner...
- Page 7 10. Side Panel 4. On/Off Switch 11. Dome Assy 5. Filter Cartridge 12. Filter Bucket 6. Drive Track 13. Wheel 7. Wheel Tube 14. Filter Door USE OnLY HAYWARD GEnUInE REPLACEMEnT PARTS Page 7 of 17 Robotic cleaner Rev. F...
- Page 8 - Insert the screw into the tube at the base of the caddy cart & secure with bolt (3) - Insert the handle into the top of the tube & insert the screw securing it with the bolt (4) Fig. 4 USE OnLY HAYWARD GEnUInE REPLACEMEnT PARTS Page 8 of 17 Robotic cleaner...
-
Page 9: Maintenance
3. Flip the bucket assembly over to remove the debris and then rinse with a garden hose to remove small particles. 4. Filter cartridges do not need to be removed to clean. USE OnLY HAYWARD GEnUInE REPLACEMEnT PARTS Page 9 of 17 Robotic cleaner... - Page 10 Place the filter cartridges back into the filter bucket assembly with the center frame reinforcements facing inward e. Snap the filter door latches into place. USE OnLY HAYWARD GEnUInE REPLACEMEnT PARTS Page 10 of 17 Robotic cleaner Rev. F...
-
Page 11: Cable Care
With continued use, the cable may become coiled (like a telephone cord). To correct this, periodically stretching the cord out in the sun should remove any cord twists. IMPORTAnT: The cable should be checked periodically for any external damage. USE OnLY HAYWARD GEnUInE REPLACEMEnT PARTS Page 11 of 17 Robotic cleaner... -
Page 12: Important Tips
• For cleaners used in areas that have a lot of sand the cleaner may need to be rinsed with water at all flapper (filter bucket’s flapper is at intake port) areas, and may need rinsing at the dome push button to allow free operation. USE OnLY HAYWARD GEnUInE REPLACEMEnT PARTS Page 12 of 17 Robotic cleaner... -
Page 13: Troubleshooting
• If a high level of debris is visible through the dome windows, remove cleaner quickly from the water to reduce the chance of the debris escaping the filter bucket and reentering the pool. USE OnLY HAYWARD GEnUInE REPLACEMEnT PARTS Page 13 of 17 Robotic cleaner Rev. -
Page 14: Specifications
230 V Output Secondary Voltage 24 V ⎓ Rated Output Current Weight 3.8 Kg Shipping Length Width Height Carton Dimensions (mm) Shipping Weight with Caddy 22.3 Kg USE OnLY HAYWARD GEnUInE REPLACEMEnT PARTS Page 14 of 17 Robotic cleaner Rev. F... -
Page 15: Important Safety Instructions
After use, remove the unit and rinse with fresh water and remove any twists that may be present in the cord. USE OnLY HAYWARD GEnUInE REPLACEMEnT PARTS Page 15 of 17 Robotic cleaner Rev. - Page 16 HAYWARD® Limited Warranty All HAYWARD products are covered for manufacturing defects or material defects for a warranty period of 2 years as of date of purchases. Any warranty claim should be accompanied by evidence of purchase, indicating date of purchase. We would therefore advise you to keep your invoice.
- Page 17 ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Hayward Robotic Cleaners should not be used to clean the pool for spring start-up. On those occasions, where your pool is subjected to an abnormal debris load, maintenance steps should be taken to return the pool to “pre-installations” condition.
