Hayward SwimClear Owner's Manual
Installation, operation, & parts cartridge filters
Hide thumbs
Also See for SwimClear:
- Owner's manual (8 pages) ,
- Owner's manual (13 pages) ,
- Manual del propietario (12 pages)
Advertisement
MODEL
C2025
C3025
C4025
C5025
C7000
MAXIMUM WORKING PRESSURE FOR ALL MODELS 50 PSI (3.45 BAR)
ATTENTION INSTALLER: THIS MANUAL CONTAINS IMPORTANT INFORMATION
ON THE OPERATION, AND SAFE USE OF THIS EQUIPMENT.
THIS MANUAL IS INTENDED FOR THE END USER OF THIS PRODUCT
INSTALLATION, OPERATION, & PARTS
Models C2025 C3025 C4025 C5025 C7000

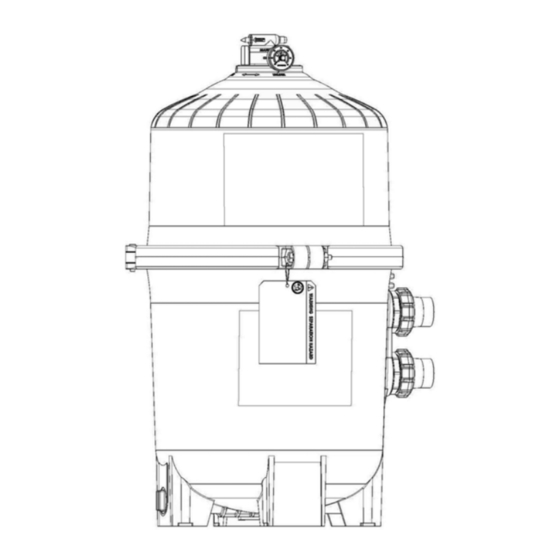

SWIMCLEAR™ CARTRIDGE FILTERS
EFFECTIVE FILTRATION
RATE
2
FT
M
225
20.9
325
30.2
425
39.5
525
48.8
680
63.2
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
DESIGN FLOW RATE
Residential
2
GPM
84
122
150
150
150
ISC2028 Rev C
Commercial
LPM
318
462
568
568
568
