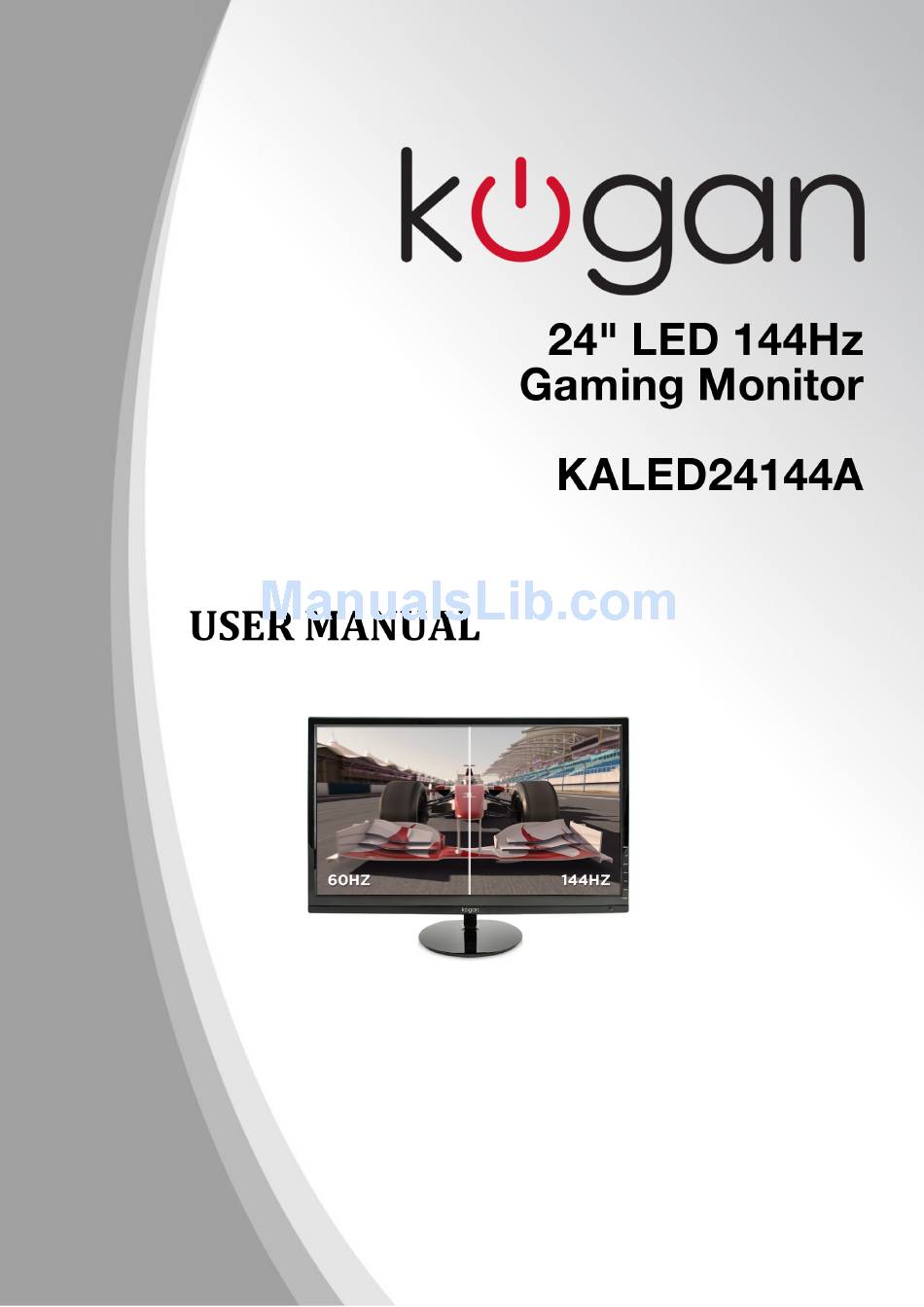

Summary of Contents for Kogan KALED24144A
-
Page 2: Table Of Contents
Safety Precautions..........................2 Accessories............................3 Setup...............................3 Installing the stand base......................3 Technical Specifications........................3 Product Layout...........................4 Front view............................4 Rear view............................5 Main Menu.............................5 BRIGHTNESS...........................5 IMAGE..............................6 COLOR TEMP..........................6 OSD SETTING..........................6 RESET..............................7 MISC..............................7 LOW BLU RAY MENU.........................7 Supported Timing Modes.......................8 Care and Maintenance........................8 Safety Tips............................8 Troubleshooting..........................8... - Page 3 • may cause electric shock to human bodies, even when the power cord is disconnected. Stop using the monitor if the cabinet is damaged. Contact the Kogan • customer support team for advice. Put your monitor in a clean, dry environment. Unplug the monitor •...
-
Page 4: Accessories
The monitor should arrive with the following accessories included. AC Power cord • Adaptor • User guide • DVI (24 pin) cable • VGA (15 pin) cable • 1. Place the monitor face down on a soft cushioned surface or blanket. 2. -
Page 5: Main Menu
Display main menu. Enter selected item in OSD menu. Scroll up in OSD menu. When not in OSD menu, use as hotkey function. Scroll down in OSD menu. When not in OSD menu, use as hotkey function. Increase in OSD menu. When not in OSD menu, display adjust volume menu. -
Page 6: Brightness
HDMI input (HDMI A Type 19 pin) DVI input (DVI-D 24 pin) VGA input (D-Sub 15 pin) Audio input (3.5mm jack) Power input (DC 12V) BRIGHTNESS 0 – 100 Black level of image CONTRAST 0 – 100 White level of image STANDARD Default settings GAME... -
Page 7: Color Temp
H.POSITION 0 – 100 Adjust the horizontal and vertical position of the image. V.POSITION 0 - 100 CLOCK 0 – 100 Adjust screen image clock PHASE 0 – 100 Adjust screen image phase ASPECT WIDE Adjust image to widescreen 4 : 3 Adjust image to 4 : 3 COLOR TEMP. -
Page 8: Reset
IMAGE AUTO Automatically adjust the ADJUST horizontal/vertical position, clock and phase of the screen image. COLOR AUTO Automatically adjust the ADJUST colour of the screen image. RESET Reset to default settings. HOTKEY TYPE ECO + DCR Set hotkey to ECO and DCR adjustment. - Page 9 Never remove the rear cover of your monitor cabinet. The display unit inside contains • high-voltage parts and may cause electric shock to human bodies. Never try to repair your monitor yourself. Always call the Kogan customer support team • for information.
