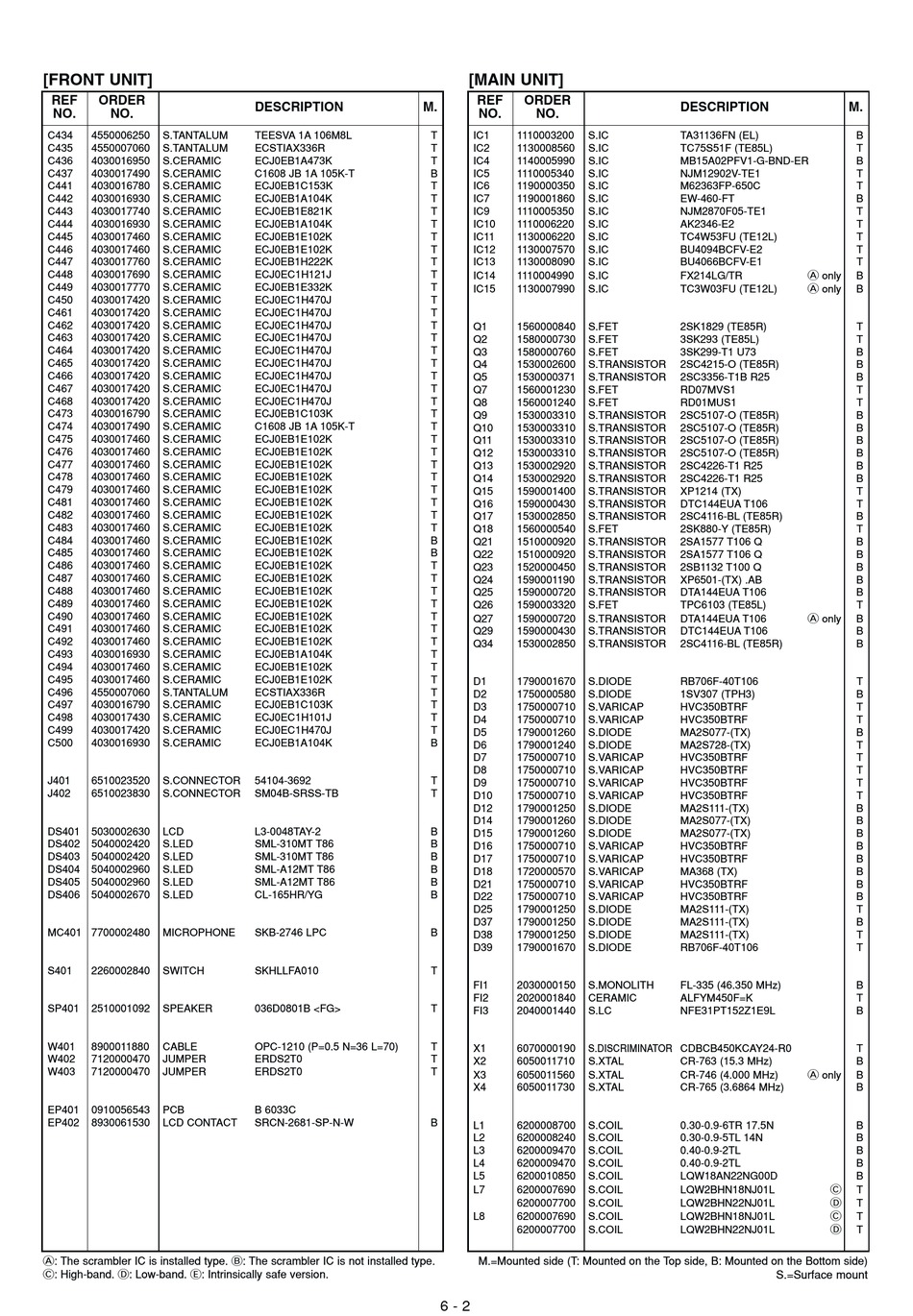

Icom IC-F50 Service Manual page 59

[FRONT UNIT]
REF ORDER
NO. NO.
C434 4550006250 S.TANTALUM
C435 4550007060 S.TANTALUM
C436 4030016950 S.CERAMIC
C437 4030017490 S.CERAMIC
C441 4030016780 S.CERAMIC
C442 4030016930 S.CERAMIC
C443 4030017740 S.CERAMIC
C444 4030016930 S.CERAMIC
C445 4030017460 S.CERAMIC
C446 4030017460 S.CERAMIC
C447 4030017760 S.CERAMIC
C448 4030017690 S.CERAMIC
C449 4030017770 S.CERAMIC
C450 4030017420 S.CERAMIC
C461 4030017420 S.CERAMIC
C462 4030017420 S.CERAMIC
C463 4030017420 S.CERAMIC
C464 4030017420 S.CERAMIC
C465 4030017420 S.CERAMIC
C466 4030017420 S.CERAMIC
C467 4030017420 S.CERAMIC
C468 4030017420 S.CERAMIC
C473 4030016790 S.CERAMIC
C474 4030017490 S.CERAMIC
C475 4030017460 S.CERAMIC
C476 4030017460 S.CERAMIC
C477 4030017460 S.CERAMIC
C478 4030017460 S.CERAMIC
C479 4030017460 S.CERAMIC
C481 4030017460 S.CERAMIC
C482 4030017460 S.CERAMIC
C483 4030017460 S.CERAMIC
C484 4030017460 S.CERAMIC
C485 4030017460 S.CERAMIC
C486 4030017460 S.CERAMIC
C487 4030017460 S.CERAMIC
C488 4030017460 S.CERAMIC
C489 4030017460 S.CERAMIC
C490 4030017460 S.CERAMIC
C491 4030017460 S.CERAMIC
C492 4030017460 S.CERAMIC
C493 4030016930 S.CERAMIC
C494 4030017460 S.CERAMIC
C495 4030017460 S.CERAMIC
C496 4550007060 S.TANTALUM
C497 4030016790 S.CERAMIC
C498 4030017430 S.CERAMIC
C499 4030017420 S.CERAMIC
C500 4030016930 S.CERAMIC
J401 6510023520 S.CONNECTOR
J402 6510023830 S.CONNECTOR
DS401 5030002630 LCD
DS402 5040002420 S.LED
DS403 5040002420 S.LED
DS404 5040002960 S.LED
DS405 5040002960 S.LED
DS406 5040002670 S.LED
MC401 7700002480 MICROPHONE
S401 2260002840 SWITCH
SP401 2510001092 SPEAKER
W401 8900011880 CABLE
W402 7120000470 JUMPER
W403 7120000470 JUMPER
EP401 0910056543 PCB
EP402 8930061530 LCD CONTACT
A: The scrambler IC is installed type. B: The scrambler IC is not installed type.
C: High-band. D: Low-band. E: Intrinsically safe version.
DESCRIPTION M.
TEESVA 1A 106M8L
ECSTIAX336R
ECJ0EB1A473K
C1608 JB 1A 105K-T
ECJ0EB1C153K
ECJ0EB1A104K
ECJ0EB1E821K
ECJ0EB1A104K
ECJ0EB1E102K
ECJ0EB1E102K
ECJ0EB1H222K
ECJ0EC1H121J
ECJ0EB1E332K
ECJ0EC1H470J
ECJ0EC1H470J
ECJ0EC1H470J
ECJ0EC1H470J
ECJ0EC1H470J
ECJ0EC1H470J
ECJ0EC1H470J
ECJ0EC1H470J
ECJ0EC1H470J
ECJ0EB1C103K
C1608 JB 1A 105K-T
ECJ0EB1E102K
ECJ0EB1E102K
ECJ0EB1E102K
ECJ0EB1E102K
ECJ0EB1E102K
ECJ0EB1E102K
ECJ0EB1E102K
ECJ0EB1E102K
ECJ0EB1E102K
ECJ0EB1E102K
ECJ0EB1E102K
ECJ0EB1E102K
ECJ0EB1E102K
ECJ0EB1E102K
ECJ0EB1E102K
ECJ0EB1E102K
ECJ0EB1E102K
ECJ0EB1A104K
ECJ0EB1E102K
ECJ0EB1E102K
ECSTIAX336R
ECJ0EB1C103K
ECJ0EC1H101J
ECJ0EC1H470J
ECJ0EB1A104K
54104-3692
SM04B-SRSS-TB
L3-0048TAY-2
SML-310MT T86
SML-310MT T86
SML-A12MT T86
SML-A12MT T86
CL-165HR/YG
SKB-2746 LPC
SKHLLFA010
036D0801B <FG>
OPC-1210 (P=0.5 N=36 L=70)
ERDS2T0
ERDS2T0
B 6033C
SRCN-2681-SP-N-W
