EN

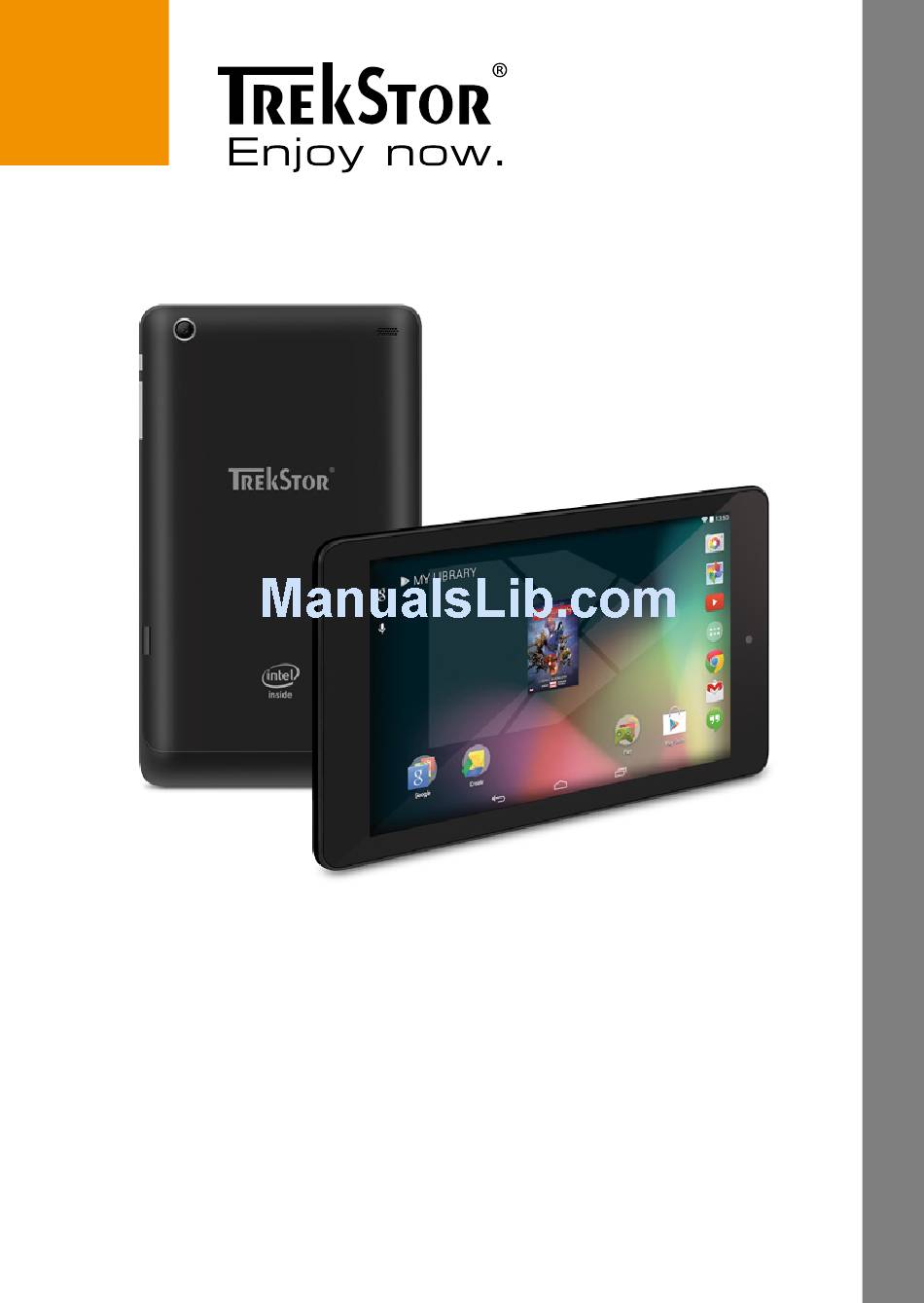

SurfTab
xintron i 7.0
®
OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SurfTab xintron i 7.0 and is the answer not in the manual?

Questions and answers

Related Manuals for TrekStor SurfTab xintron i 7.0

Summary of Contents for TrekStor SurfTab xintron i 7.0

  • Page 1 SurfTab xintron i 7.0 ® OPERATING INSTRUCTIONS...

  • Page 2: Table Of Contents

    Contents 1) About the SurfTab xintron i 7.0 ………………………………………… 4 2) Safety information ……………………………………………………… 5 Operational safety …………………………………………………………… 5 Repair ………………………………………………………………………… 6 Intended operating conditions ……………………………………………… 6 Power supply ………………………………………………………………… 7 Care and maintenance ……………………………………………………… 7 Notes on devices with a suction cup ………………………………………… 7 Information on the memory capacities indicated ……………………………...
  • Page 3 14) Setting up/removing an email account ……………………………… 18 Setting up an email account ………………………………………………… 18 Removing an email account ………………………………………………… 18 15) Installing/uninstalling apps …………………………………………… 18 Downloading and installing apps …………………………………………… 18 Uninstalling apps ……………………………………………………………… 19 16) Using the camera ……………………………………………………… 20 Taking a photo …………………………………………………………………...

  • Page 4: About The Surftab Xintron I 7.0

    Visit www.trekstor-onlineshop.de for additional products and accessories. 1) About the SurfTab xintron i 7.0 The TrekStor SurfTab xintron i 7.0 is a tablet PC with Intel® Atom™ processor and IPS touch screen for surfing the Internet, using apps and playing music, videos and games.

  • Page 5: Safety Information

    2) Safety information These instructions use the following warning symbols and key words: DANGER Indicates possible danger to life and/or danger of severe, irreversible injuries. CAUTION Follow instructions to avoid injuries and material damage. WARNING Follow instructions to avoid material damage. NOTE Further information about the use of the device.

  • Page 6: Repair

    CAUTION This device can generate high sound volumes. Never listen at high volumes for long periods. Doing so can result in immediate or gradual hearing damage. Remember: Permanent hearing damage may only emerge later in life. You may become used to listening to high volumes over time, making them appear normal to you.

  • Page 7: Power Supply

    Never expose the device to humidity, condensation or moisture. Ensure you use and store the device in a dust-free environment. Power supply CAUTION Only ever use the original charger or a charger with the correct voltage and amperage to prevent damage to the device. If you have to resort to a universal charger, pay attention to the polarity of the charging device as well as the voltage and amperage.

  • Page 8: Technical Specifications

    Linux®, Mac OS® (from OS X 10.6), Windows® (Windows 8, 7, Vista®, XP) Battery Lithium polymer 4) Package contents • TrekStor SurfTab xintron i 7.0 • USB cable (Micro-USB / USB-A) • Power adapter (100 V - 240 V) •...

  • Page 10: Controls And Connections

    5) Controls and connections A) Camera front B) Camera rear C) Micro-USB socket D) Audio out socket E) On/off switch F) Volume control + G) Volume control – H) microSD/SDHC card slot Speaker Microphone 6) Charging the SurfTab Please fully charge your SurfTab before you use it for the first time. Connect your SurfTab to a plug socket using the USB cable and power adapter.

  • Page 11: Elements On The Home Screen

    8) Elements on the home screen A) Google™ language search B) Google™ Search C) Status display and quick menu (swipe the status display on the right downwards to see the quick menu) D) Quick start bar E) Applications menu F) Back to the previous screen G) Home icon (back to the home screen) H) View all open elements...

  • Page 12: Using The Touch Screen

    9) Using the touch screen Scrolling The home screen of your SurfTab extends 9 pages to the right of the first window. You can set up these pages by placing apps or widgets on the possible further pages (see Section 10). Slide your finger from right to left (or the reverse) across the screen to access these pages.

  • Page 13: Selecting An Element

    Selecting an element To open an element or select an option, briefly touch the icon you require with your finger. If you want to close a recently used element (app, widget, menu), tap the display of all open elements. Place your finger on the element that you want to close and drag the element to the left or right to close it.

  • Page 14: Enlarging And Reducing The View

    Enlarging and reducing the view You can enlarge the display of some views (images, websites etc.). To enlarge the display, move two fingers apart on the screen or tap the display twice in quick succession. Conversely, move two fingers towards each other on the screen or tap the display twice in quick succession to reduce the display again.

  • Page 15: Personalising The Home Screen

    10) Personalising the home screen You can set up the home screen (as well as the additional pages) according to your wishes by adding or removing app shortcuts and widgets and altering the background. Adding apps to the home screen Tap the applications menu in the quick start bar on the home screen.

  • Page 16: Changing The Screen Background

    Changing the screen background Touch an empty area of the screen background until "W " appears on the allpapeRs lower edge of the screen. Tap the symbol to display the available backgrounds. b) Now scroll through the images, select a motif and confirm your selection via "s ".

  • Page 17: Connecting To The Internet Via Wifi

    As soon as you have unlocked the screen, a configuration assistant will start. This assistant will guide you through the process of setting up a new user account. Select "r " to define the user rights for the new user. You will beasked eStricted profiLe to set up a screen lock to protect your account.

  • Page 18: Setting Up/Removing An Email Account

    14) Setting up/removing an email account Setting up an email account Make sure that your SurfTab is connected to the Internet. b) Select "e-m " in the quick start bar or on the applications menu. Enter a valid email address in the upper input field and the associated password in the lower input field.

  • Page 19: Uninstalling Apps

    To be able to download apps via the Google Play Store, you require a Google account. If you have not yet set up a Google account, a configuration assistant will start the first time you open the Play Store app. The configuration assistant will guide you through the process of setting up a Google account.

  • Page 20: Using The Camera

    16) Using the camera Tap the camera icon in the applications menu or in the quick start bar. The following screen appears: Taking a photo Hold the SurfTab with the camera in the required direction and press the shutter button (16 B). The picture is saved and the SurfTab briefly displays a preview of the photo.

  • Page 21: Editing Photos

    Editing photos Briefly tap the lower edge of the display to show the task bar. Now tap the home icon to exit camera mode. b) Open the gallery by tapping the "p " symbol in the applications menu hotos or in the quick start bar. Now tap the photo that you would like to edit.

  • Page 22: Connecting Other Devices

    17) Connecting other devices Connecting the SurfTab to a computer Connect the SurfTab to your computer with the Micro-USB cable provided. b) A short moment later, the memory of the SurfTab will be shown as an external drive in your computer’s file explorer. From here you can load, copy, delete or move files as usual.

  • Page 23: Connecting To A Television Via Miracast

    Connecting to a television via Miracast™ Miracast technology is a peer-to-peer standard for image transfer. The SurfTab supports this standard and enables wireless transfer of image and sound from the SurfTab to a WiFi and Miracast-enabled television device. The SurfTab can connect to your television via Miracast only if the television also supports Miracast technology.

  • Page 24: Activating Standby Mode

    Press the "volume control +" button and keep it pressed. Also press the on/off switch and keep it pressed. d) As soon as the TrekStor logo and "powered by android" appear, release both buttons. e) The display now shows a preselection of available options.

  • Page 25: Switching Off The Surftab

    g) Briefly press both volume buttons simultaneously when the Android logo appears on the display. h) Use the volume control buttons to navigate through the menu and use the on/off switch to select an option. To restore the SurfTab to its factory settings, select the option " ".

  • Page 26: Notes On Copyright And Trademarks

    Google Permissions. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by TrekStor GmbH is under license. Other trademarks and trade names are those of their respective owners.

  • Page 27: Notes On Disposal

    22) Notes on disposal Disposal This symbol indicates that this product and/or the battery used contain components that are harmful to the environment and/or human health if not disposed of correctly. As the owner of a used electrical or electronic device, you may not dispose of this device together with unsorted domestic waste.
  • Page 28 Product: SurfTab xintron i 7.0 (ST70408-4 / TC71RA1) I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I...
  • Page 29 Supportinformationen Sollten Sie Fragen zu Ihrem TrekStor Produkt haben, gehen Sie bitte wie folgt vor: • Überprüfen Sie anhand der Produkteigenschaften und der Funktionen Ihres Gerätes (auf der Verpackung ersichtlich), ob Sie die richtigen Einstellungen vorgenommen haben. • Lesen Sie aufmerksam die gesamte Bedienungsanleitung.
