- Page 1 SurfTab duo W2 ® OPERATING INSTRUCTIONS...
-
Page 2: Table Of Contents
Contents 1) About the SurfTab ……………………………………………………… 4 2) Safety information ……………………………………………………… 5 Operational safety ………………………………………………………… 5 Repair …………………………………………………………………… 6 Intended operating conditions …………………………………………… 7 Power supply ……………………………………………………………… 7 Care and maintenance …………………………………………………… 7 Information on the memory capacities indicated ………………………… 7 3) Technical specifications …………………………………………………... - Page 3 12) Downloading applications from the Windows Store ………………… 23 13) Transferring files between the SurfTab and other devices …………… 24 Transferring files via Bluetooth …………………………………………… 24 Transferring files between the SurfTab and a PC ………………………… 25 14) Connecting the SurfTab to a television ……………………………… 26 Connecting to a television via HDMI cable ………………………………...
-
Page 4: About The Surftab

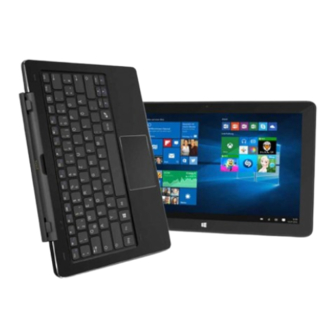

For more products and accessories, visit: www.trekstor-onlineshop.de 1) About the SurfTab The TrekStor SurfTab duo W2 is a two-in-one device incorporating the Windows 10 operating system, and can be used for surfing the Internet, running apps and games, and playing music and videos. It consists of a tablet PC and a high-quality QWERTZ keyboard with hard shell. -
Page 5: Safety Information
2) Safety information These instructions use the following warning symbols and key words: DANGER Indicates possible danger to life and/or danger of severe, irreversible injuries. CAUTION Follow instructions to avoid injuries and material damage. WARNING Follow instructions to avoid material damage. NOTE Further information about the use of the device. -
Page 6: Repair
DANGER Do not cover the device or charger during operation or while charging. This may cause the device/charger to overheat and potentially catch fire! CAUTION This device can generate high sound volumes. Never listen at high volumes for long periods. Doing so can result in immediate or gradual hearing damage. -
Page 7: Intended Operating Conditions
Intended operating conditions Protect the device from extremely high or low temperatures and fluctuations in temperature. Use it at an ambient temperature between 10º C and 40º C. Do not place the device near a heat source and protect it from direct sunlight. Never expose the device to humidity, condensation or moisture. -
Page 8: Technical Specifications
3) Technical specifications Processor (CPU): Intel® Core™ M-5Y10C processor (up to 2.00 GHz, 4 MB Intel® Cache) RAM: 4 GB (DDR3) Storage capacity: 64 GB Graphics processing unit (GPU): Intel® HD Graphics 5300 Display type: 10-point capacitive multi-touch Full-HD IPS display with pen input feature Display size: 11.6"... -
Page 9: Package Contents
4) Package contents • SurfTab duo W2 • Power adapter (100 V – 240 V) • USB 3.0 host adapter cable (Micro-USB/USB-A (socket)) • Cleaning cloth • Quick guide • Product safety and legal information... -
Page 12: Controls And Ports
5) Controls and ports A) Front camera B) Windows button C) Status LED D) Microphone E) Speaker F) Audio port G) Micro-HDMI socket H) Charging socket Micro-USB socket (USB 3.0) Memory card slot K) Reset On/off switch M) Volume control N) Rear camera O) Keyboard dock P) USB-A port... -
Page 13: Starting Up The Surftab For The First Time
6) Starting up the SurfTab for the first time Charging the SurfTab Please fully charge your SurfTab before you use it for the first time. To charge the SurfTab, connect the SurfTab to a power socket using the power adapter. The maximum battery life is reached after approximately ten charging cycles. -
Page 14: Using The Keyboard
7) Using the keyboard Removing the tablet from the keyboard When shipped from the factory, the tablet is docked to the keyboard. To remove the SurfTab from the keyboard, please proceed as follows: Bring the tablet upwards until it is standing at a 90° angle to the keyboard. b) Holding the keyboard down with one hand, pull the tablet up and away from the keyboard. -
Page 15: Reconnecting The Tablet To The Keyboard
Reconnecting the tablet to the keyboard To reconnect the tablet to the keyboard, please proceed as follows: Align the hinge fitting on the keyboard so that the tablet dock is pointing vertically upwards. b) Next, lower the tablet vertically and place the keyboard dock on the tablet dock. -
Page 16: Special Keys And Function Keys For Operating The Surftab
Special keys and function keys for operating the SurfTab To simplify operation, the keyboard has numerous special keys and function keys for controlling the SurfTab. Fn key The Fn key is used to enable the additional function keys (blue symbols). These additional function keys include the F1 to F12 keys, the "Page Up"... -
Page 17: The Touchpad
Function keys in the top row of keys Mute Volume - Volume + Previous track Play/Pause Next track Switch keyboard language (several languages must be installed) E-mail Search Share Devices Open Settings Open Context menu The touchpad The touchpad performs the functions of a mouse. Move the mouse pointer on the touch surface by swiping your finger across the surface in the desired direction. -
Page 18: Action Center
8) Action Center The Action Center is a bar with quick links to some important SurfTab functions, which you can show or hide. To access the Action Center, swipe your finger from the right edge of the screen towards the centre or click/tap the memo icon in the bottom right-hand corner. -
Page 19: Accessing And Using The Start Menu
In addition to the straightforward navigation list (A) found in the "classic" Start menu of older Windows versions, the Start menu of the SurfTab duo W2 has a useful app area (B) to the right of the navigation list. Here, you can "pin" apps and favourites in the form of live tiles and organise them. -
Page 20: Accessing The Start Menu
Accessing the Start menu To display the Start menu, tap the Windows icon in the bottom left of the display or press the Windows key on the keyboard. Tapping/pressing a second time will hide the Start menu. If you have activated tablet mode (see note in Section 8), all the pinned items from the app area of the Start menu will be magnified and distributed across the entire screen. -
Page 21: Accessing Settings
Organising and removing apps To access edit mode for a particular live tile, place your finger on the live tile you want and keep it there until it is highlighted (the background becomes darker, the live tile stands out visually). Two edit symbols now appear at the corners of the tile. -
Page 22: Connecting The Surftab To The Internet
11) Connecting the SurfTab to the Internet Connecting to a stationary wireless network (WiFi) Call up Settings (see Section 10). b) In Settings, tap "n & i ". etwork nternet In the next screen, tap "w " on the left. d) Drag the WiFi slider from "o "... -
Page 23: Downloading Applications From The Windows Store
12) Downloading applications from the Windows Store The Windows Store is available in the app area of the Start menu (see Section 9). You can identify the Windows Store by its icon, a shopping bag featuring the Windows logo. The following two requirements must be met in order to access the Windows Store: 1. -
Page 24: Transferring Files Between The Surftab And Other Devices
13) Transferring files between the SurfTab and other devices Transferring files via Bluetooth Activate the Bluetooth function on the device you want to connect, and allow the device to become visible to other devices if necessary. To do so, refer to the operating instructions of the device to be connected. b) Go to Settings (see Section 10). -
Page 25: Transferring Files Between The Surftab And A Pc
Transferring files between the SurfTab and a PC You will need an external storage device such as a USB stick to transfer files between your SurfTab and a computer. Direct data transfer between the SurfTab and a PC via USB cable is not possible. You can choose whether to connect a USB stick directly to one of the two USB-A ports on the keyboard, or whether to use a USB host adapter cable and the Micro-USB socket on the SurfTab itself. -
Page 26: Connecting The Surftab To A Television
14) Connecting the SurfTab to a television You can transfer the image and sound from the SurfTab to a suitable television via HDMI cable or Miracast. Connecting to a television via HDMI cable To connect the SurfTab to a suitable television via HDMI, you require an appropriate cable (Micro-HDMI to HDMI, available in specialist shops). -
Page 27: Reset
15) Reset If your SurfTab "freezes" and no longer responds, you can restart it. Press and hold down the on/off switch for at least 10 seconds until the device switches off. Wait for about 20 seconds and then turn the device on normally. 16) Switching off the SurfTab Open the Start menu by tapping the Windows icon in the bottom left of the display or by pressing the Windows key on the keyboard. -
Page 28: Notes On Copyright And Trademarks
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by TrekStor GmbH is under license. Other trademarks and trade names are those of their respective owners. -
Page 29: Recycling
Recycling Your device and its sales packaging consist of valuable raw materials, which must be recycled in the interest of environmental protection. Contact your city or municipal authority for information on the correct method of disposal. 19) Notes on liability and warranty The manufacturer shall reserve the right to constantly further develop the product. - Page 30 Product: SurfTab duo W2 (ST11264-1) I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I...
- Page 31 Supportinformationen Sollten Sie Fragen zu Ihrem TrekStor Produkt haben, gehen Sie bitte wie folgt vor: • Überprüfen Sie anhand der Produkteigenschaften und der Funktionen Ihres Gerätes (auf der Verpackung ersichtlich), ob Sie die richtigen Einstellungen vorgenommen haben. • Lesen Sie aufmerksam die gesamte Bedienungsanleitung.
