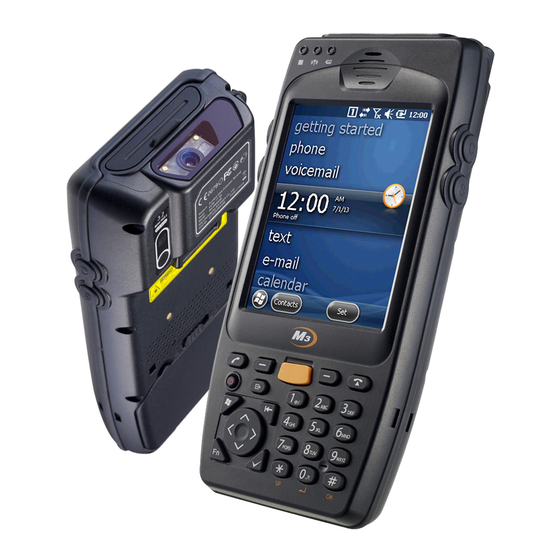

  • Page 1 M3 ORANGE series Quick Manual Ver.1.5...
  • Page 2 PACKAGE ▪ Please check all items below are included in package box. < M3 ORANGE > < Cradle > < Battery > < Adaptor > < USB cable > < Stylus pen > ※Warning Use of controls or adjustments or performance of procedures other than...
  • Page 3 FEATURES DEVICE Barcode Scan Window Micro SD card slot < 1D Scanner > < 2D Imager > Scanner LED Volume Button GSM / WCDMA LED Charging LED LCD Touch Screen Camera Button Scanner Button Flash Camera Stylus Pen Speaker Battery Lock Reset Button Keypad Battery cover...
  • Page 4 FEATURES KEYPAD ▪ M3 ORANGE has two types of keypad – Alphanumeric and QWERTY. Some function keys may not work depending on its options. SCAN Soft 1 Soft 1 Send Power Input mode change Windows Numbers Back Space Function Navigation Action (Enter) <AlphaNumeric>...

  • Page 5: Soft Reset

    RESET SOFT RESET When an unexpected error occurs while using the device, SOFT RESET allows your device to restart, similar to rebooting a computer. It will adjust memory allocation - all records and entries are retained after soft reset but unsaved data or files may be lost.

  • Page 6: Device Setup

    DEVICE SETUP CARD INSTALLATION USIM Card Installation ▪ Remove the battery from the battery pack. ▪ Insert the USIM Card as shown in the below picture. ▪ Insert the battery back to original position and lock using the stylus pen. ▪...

  • Page 7: Inserting Battery

    DEVICE SETUP BATTERY Inserting Battery ▪ Insert the battery to the battery pack position. ▪ Tighten up the battery lock using the stylus pen. Removing Battery ▪ Loosen the battery lock using the stylus. ▪ Then remove the battery from the battery position. ※Warning Risk of Explosion if Battery is replaced by an Incorrect Type.

  • Page 8: How To Charge

    DEVICE SETUP CHARGING How to charge ▪ Supply power to the cradle using the AC charger. ▪ Insert the PDA to device slot to start charging the PDA. Charging status Charging status of the PDA and the spare battery is indicated by LEDs. LED charging indicator on the cradle indicates the charging status of the spare battery.

  • Page 9: Data Capture

    DATA CAPTURE SCANNER Scanning ▪ Launch the Scanner program (either ScanEmul or M3ScanTest). ▪ Press the SCAN BUTTON toward barcode to read. Make sure the laser beam covered whole barcode to read data properly. Imaging ▪ Launch the Scanner program. ▪...

  • Page 10: Taking Pictures

    DATA CAPTURE CAMERA Taking pictures ▪ Run the Camera program. ▪ Tab the Capture button to take a picture. ▪ Taken pictures are stored in Pictures&Videos folder. (Start\Programs\Pictures&Videos) Taking videos ▪ Run the Camera program. ▪ Tab the Video Mode button to take a video. ▪...

  • Page 11: Services And Support

    Desired or relevant manuals can be downloaded from Manuals or FAQ in technical support webpage. User manual, especially, is included in Flash Disk so that M3 ORANGE users can obtain it from the Flash Disk as well. For DOA or RMA, please send the defective product to suitable address...
  • Page 12 Seoul, 135-080, Korea Buchoen, Gyeonggi Do, Tel : +82 2 574 0037 420-857, Korea Fax : +82 2 558 1253 Tel: +82 32 623 0030 www.m3mobile.co.kr Fax: +82 32 623 0035 sales@m3mobile.co.kr Copyright©2000 – 2011 M3 Mobile Co., Ltd. All Rights Reserved.
