www.m3mobile.co.kr

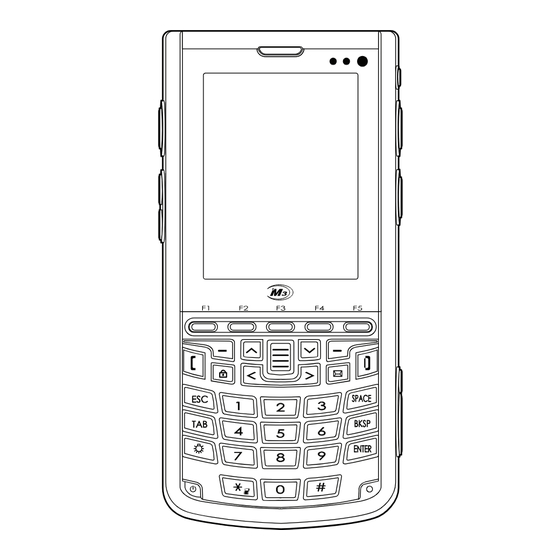

M3 SMART
Quick Manual
Ver.1.4

Advertisement

Table of Contents
loading

Related Manuals for M3 SMART

Summary of Contents for M3 SMART

  • Page 1 M3 SMART Quick Manual Ver.1.4...
  • Page 2 PACKAGE ▪ Please check all items below are included in package box. < M3 SMART > < Cradle > < Battery > < Adaptor > < USB cable > < Stylus pen > ※Warning Use of controls or adjustments or performance of procedures other than...
  • Page 3 FEATURES DEVICE Barcode Scan Window < 1D Scanner > < 2D Imager > Volume Keys Scanner Button Charging LED Scanner LED Scanner Button LCD Touch Screen Camera Button Battery Lock Reset Button Battery Keypad Charging & USB/serial Port POGO Pin...
  • Page 4 FEATURES KEYPAD M3 SMART has two types of keypads - AlphaNumeric and QWERTY. Some function keys may not work depending on its options. SCAN Function Keys Navigation Soft1 Soft2 Send Yellow Blue Back Space Backlight Numbers Power <AlphaNumeric> Device Lock...

  • Page 5: Soft Reset

    RESET SOFT RESET When an unexpected error occurs while using the device, SOFT RESET allows your device to restart, similar to rebooting a computer. It will adjust memory allocation - all records and entries are retained after soft reset but unsaved data or files may be lost. ▪...

  • Page 6: Device Setup

    SIM Card Installation ▪ Remove the battery from the battery pack. ▪ Insert the SIM Card as shown in the right picture. M3 SMA RT User Manual M3 SMA RT User Manual ▪ Insert the battery back to original position...

  • Page 7: Inserting Battery

    DEVICE SETUP BATTERY Inserting Battery ▪ Insert the battery to the battery pack position. ▪ Slide the battery lock to the left to lock the battery pack. Removing Battery ▪ Slide the battery lock to the right to unlock the battery pack. ▪...

  • Page 8: How To Charge

    DEVICE SETUP CHARGING How to charge ▪ Supply power directly to the PDA using 24 Pin connector. ▪ Connect the 24 Pin connector to PDA to start charging the PDA. ▪ Charging the PDA via cradle can also be possible. Charging status Charging status of the PDA and the spare battery is indicated by LEDs.

  • Page 9: Data Capture

    DATA CAPTURE SCANNER Scanning ▪ Launch the Scanner program (either ScanEmul or M3ScanTest). ▪ Press the SCAN BUTTON toward barcode to read. Make sure the laser beam covered whole barcode to read data properly. Imaging ▪ Launch the Scanner program. ▪...

  • Page 10: Taking Pictures

    ▪ Tab the Capture button to take a picture. ▪ Taken pictures are stored in Photo folder. (My Device\Flash Disk\Camera\Photo) * Video function is not supported in M3 SMART CE version. ※Warning It may cause significant damage to your eyes if you directly look the flash...

  • Page 11: Services And Support

    Desired or relevant manuals can be downloaded from Manuals or FAQ in technical support webpage. User manual, especially, is included in Flash Disk so that M3 SMART users can obtain it from the Flash Disk as well. For DOA or RMA, please send the defective product to suitable address...
  • Page 12 Seoul, 135-080, Korea Buchoen, Gyeonggi Do, 420-857, Korea Tel : +82 2 574 0037 Tel: +82 32 326 0030 Fax: +82 32 623 0035 Fax : +82 2 558 1253 www.m3mobile.net sales@m3mobile.co.kr Copyright©2000 – 2012 M3 Mobile Co., Ltd. All Rights Reserved.
