- Page 1 User Manual Version 2.0 ©2012...
-
Page 2: Using This Manual
Using this manual Thank you for purchasing this M3 ORANGEs. This device will provide you with high quality data capture and mobile communication at industrial level of ruggedness. This user manual has been specially designed to guide you through the basic functions and features of M3 ORANGE series. - Page 3 M3 Mobile. Trademarks M3 Mobile and the M3 logo are registered trademark of M3 Mobile Co., Ltd. M3 ORANGE is a registered trademark of M3 Mobile. Microsoft logo, Windows logo, MS Office, ActiveSync and Windows Mobile Device Center are registered trademarks of Microsoft Corporation.
-
Page 4: Revision History
Revision History Version 2.0 Release date: January, 2012 New form applied. Added new categories. : Program development requirement. : Brief application description. Version 1.0 Release date: August, 2010 Initial release Using this manual... -
Page 5: Table Of Contents
Contents Getting Started ............... - 8 - Product package ................. - 8 - 1.1.1 Device and Peripherals ................ - 8 - Battery ..................... - 9 - 1.2.1 How to Use ..................- 9 - 1.2.2 How to charge ................... - 10 - Power on &... - Page 6 2.5.1 Soft reset ................... - 23 - 2.5.2 Clean boot ..................- 23 - Sync with PC ................- 24 - 2.6.1 How to sync ..................- 24 - Application usage ..............- 26 - Bluetooth ..................- 26 - 3.1.1 Bluetooth configuration ..............
- Page 7 Services ..................- 42 - 5.2.1 Contact details ................... - 42 - Contents...
-
Page 8: Getting Started

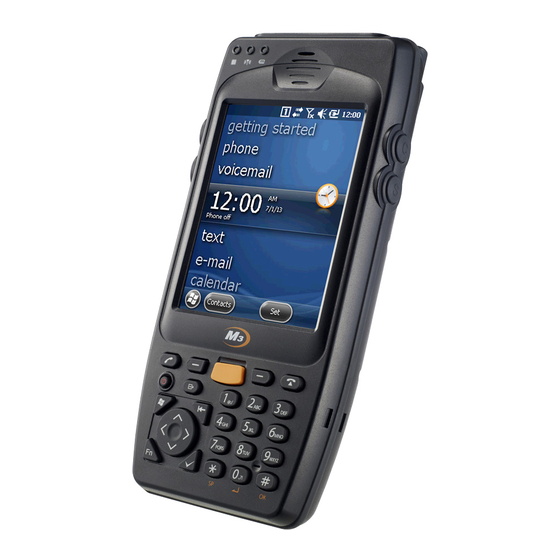

1. Getting Started 1.1 Product package 1.1.1 Device and Peripherals Check M3 ORANGE package contains below items: <M3 ORANGE Device > <Cradle> (Alpha-Numeric or QWERTY) <Battery> <A-to-B USB Cable> <2.5Ø Ear-mic phone> <Stylus Pen> <Adapter (charger)> <Quick Manual> If there is any missing part or damaged item, please contact your supplier immediately. -
Page 9: Battery
1.2 Battery 1.2.1 How to Use Inserting battery Open the battery cover by turning the battery lock clockwise. Insert the battery to the battery pack position. Replace the cover and turn the lock anti-clockwise to secure the cover. M 3 OR ANGE uses Li-Ion 3.7V, 3,300mAh smart battery. -
Page 10: How To Charge
The back-up battery would work when the battery has removed so the device goes to sleep mode. M3 ORANGE can be used for maximum 11 hours with fully charged battery. It can be different depending on users’ working environment. 1.2.2 How to charge If the exclamation mark shows up next to the battery icon, please charge the battery otherwise the device will be turned off. - Page 11 If PDA is in right position, charging LED will indicate red and it will start charging the battery. It will change to green when the battery is fully charged. If the charging LED is not turned on, please re-insert the device to the cradle. LED Color Description The battery is charging.
- Page 12 M3 Mobile recommends replacing the battery if the battery is being used for 2 years. Battery capacity decrease when charging and discharging is repeated. Battery information can be checked in StartSettingsSystemPower. Smart battery used in M3 ORANGE enables user to check the charging status while charging. Getting Started...
-
Page 13: Power On & Off
1.3 Power on & off 1.3.1 Power on To turn on the device, attach fully charged main battery and press the power button briefly. Empty or low level of the back-up battery may cause starting problem. If this happens press and hold the reset button for 5 seconds. 1.3.2 Power off Press and hold the power button for more than 5 seconds to turn off the device. -
Page 14: Memory Card
1.4 Memory card 1.4.1 Inserting memory card M3 ORANGE uses MicroSD external memory card. The external memory slot is located at the top side of the device as indicated in the following image: To insert MicroSD, first open the top cover and slide in the external memory card in the right direction until you feel a click. -
Page 15: Sim Card
1.5 SIM card 1.5.1 Inserting SIM card If the device is optioned with 3G network, SIM card slot is located under the battery socket. The SIM must be authorized by the local network provider for voice or data communication over the wireless network. To insert the SIM card, remove the battery and slide in the SIM card to the proper position. -
Page 16: Basic Usage
2. Basic usage 2.1 Features Device layout Basic usage... -
Page 17: Keypad
2.2 Keypad 2.2.1 Buttons M3 ORANGE has two different keypad options: Alpha-Numeric and QWERTY. Alpha-Numeric keypad layout Button Description SCAN Used to scan while scanner program is running. Soft1 / Soft2 Use specific command or menu. Used to make / end a call. - Page 18 Navigation Use specific command or menu. Soft1 / Soft2 Used to make a call or to open ‘Start’ menu in orange mode. Send / Windows Used to end a call or to confirm changes in orange mode. End / OK Used to input characters or to execute functions.
-
Page 19: Screen
Expands the Start menu. Number Lowercase letter Uppercase letter Input mode Status of function mode. Function mode Only in Alpha-Numeric version. Status orange mode Orange mode Only in QWERTY version. Connectivity Display data connectivity (Sync) Phone status Displays signal strength... -
Page 20: Today Screen
Volume status Indicates volume or vibration mode Battery status Charging or left power amount 2.3.2 Today screen There are program icons which can be added and/or deleted in home screen. Icon Name Description Date / Time Show the current date and time Wireless Show the control panel for Bluetooth and phone Information... -
Page 21: Data Input
WLAN status Indicates WLAN status Bluetooth Indicated Bluetooth status. If you run ScanEmul( ) or RfidEmul ( ), corresponding icon will appear on the task bar. 2.4 Data input 2.4.1 Stylus pen Select and execute Click on the target icon with stylus pen. Selecting multiple items Drag over the items with stylus pen. - Page 22 Transcriber Hand writing recognition. To enable transcriber, click on the up arrow when SIP is shown. When an SIP menu pops up select Transcriber. ‘Transcriber Intro’ window will be show up and click ‘Don’t show this’, if this information is no longer needed. Input data with stylus pen, checked data will be recognized within 2 seconds.
-
Page 23: Reset
2.5 Reset 2.5.1 Soft reset When an unexpected error occurs while using the device, SOFT RESET allows your device to restart, similar to rebooting a computer. It will adjust memory allocation - all records and entries are retained after soft reset but unsaved data or files will be lost. -
Page 24: Sync With Pc
3. Supply AC power to the cradle. 4. Turn on the device and place it on the cradle. After step 4, your PC will automatically detect M3 ORANGE and install Pocket_PC driver. Once the driver installation is done successfully, you should be able to transfer files or back up files on the device. - Page 25 If Cradle and PC is connected with USB cable before installing ActiveSync, PC may not recognize Equipment For features of WMDC or ActiveSync, please visit Microsoft homepage for more details. If ActiveSync does not work please check followings. Check USB cable is connected to cradle and PC properly. ...
-
Page 26: Application Usage
Bluetooth module. Once the Bluetooth is on, the task bar icon will change to to indicate it is enabled. To turn it off, simply disable the Bluetooth after click on icon from task bar. M3 ORANGE can use two different Bluetooth stacks: 1. StoneStreetOne (default) 2. Microsoft Bluetooth stack can be changed from StartSettingsSystem BT Select... - Page 27 To make a new Bluetooth connection, follow steps below. 1. Click Menu New Connection to search for connectable devices. 2. Choose the service willing to be connected and click ‘Next’ to go to next step. 3. Choose on device willing to be connected, and click ‘Next’ to proceed. 4.
-
Page 28: Camera
3.2 Camera 3.2.1 Camera basics M3 Mobile provides its own camera application for 3.0 MP AF camera with enhanced features. Camera is an optional module How to launch M3 camera application is located at \Flash Disk\Camera folder. To launch, click on Camera.exe in the folder. -
Page 29: Gps
3.3 GPS M3 ORANGE provides Global Positioning System (GPS) and its test application. 3.3.1 GPS basics The GPS application is located at \Flash Disk\GPS folder. The application provides general positioning information, signal strength and satellite information as well as the GPS start options. -
Page 30: Phone
) button to exit phone menu and return to today screen. 1. Phone is an optional module. 2. Make sure phone is on before you make a call or data transfer over the network For GPRS setting, please refer to M3 FAQ document ‘GPRS Settings’ section. Download Application usage... -
Page 31: Rfid
3.5 RFID M3 ORANGE provides high (HF) or ultra high frequency (UHF) RFID reader as an optional module. Please contact your local distributor for RFID options. 3.5.1 RFID basics M3 Mobile provides two types of RFID program: 1. RfidEmul Keyboard wedge application which sends tag data. -
Page 32: Scanner
For detailed description of RFID application, please refer to Application Manual. Application Manual Download 3.6 Scanner M3 ORANGE provides 1D or 2D scanner as an optional module. Please contact your local distributor for scanner options. 3.6.1 Scanner basics M3 Mobile provides two types of scanner program: 1. -
Page 33: Scanner Use
3.6.2 Scanner use Press scanner button toward to barcode you want to read. Make sure the laser beam covers whole barcode to read data properly. <1D Scanner> <2D Imager> 1. Do not stare into beam. 2. Use of control of adjustment or performance of procedures other than those specified herein may result in hazardous radiation exposure. -
Page 34: Wireless Lan
3.7 Wireless LAN 3.7.1 WLAN configuration How to connect WLAN icon ( ) on task bar indicates with WLAN is on or off respectively. If WLAN is off, click on the icon and Select ‘WLAN Insert’ to turn on WLAN module. Then, WLAN status icon ( ) will appear on the task bar. - Page 35 iii. Once a profile is created, click ‘Commit’ to save the profile and move to the main tab to change the active profile. Check the connection status to ensure it is connected properly. Entering sleep mode while the WLAN is connected will cause connection drop.
-
Page 36: Advanced Usage
4. Advanced usage 4.1 Software development kit (SDK) M3 Mobile provides SDK to software developers to help them with their development. Supported development tools Visual Studio 2005 (8.0) (.NET Framework 2.0) or higher Visual C++, Visual C# Visual Basic .NET (scanner only) Development System Requirements ... -
Page 37: Os Update
4.1.2 OS Update To improve the performance and quality of the product, M3 Mobile can release later version of OS than the one that are currently installed on your device. To check OS version of your device, please go to Start ... - Page 38 Key customization can be done in 3 ways: GUI method [Start] [Settings] [Personal] [Buttons] [Side Key Setting] <Alpha-Numeric, QWERTY> Advanced usage...
- Page 39 M3.ini, Visual INI iii. Changing registry In fact, with alpha-numeric version, all physical buttons except the power button are customizable with registry change method. Please refer to M3 FAQ document ‘Keypad’ section for more details. Download Advanced usage...
-
Page 40: Etc
UHF (868~956 MHz) Alpha-Numeric (31 key) Keypad QWERTY (50 key) User Environment Operating -20~50 ℃ / -4~122 ℉ Certification Temperature Storing -30~70 ℃ / -22~158 ℉ Humidity 93% non-condensing Drop test 1.5m / 5ft. (M3 Orange White Only) IP rating IP65... - Page 42 5.2 Services If you experience any trouble while using our product, you can visit M3 Service center or send enquires to our online support web page (http://support.m3mobile.co.kr), we will do our best to solve your trouble as soon as we can.
