Summary of Contents for Waitrack GPS Vehicle tracker

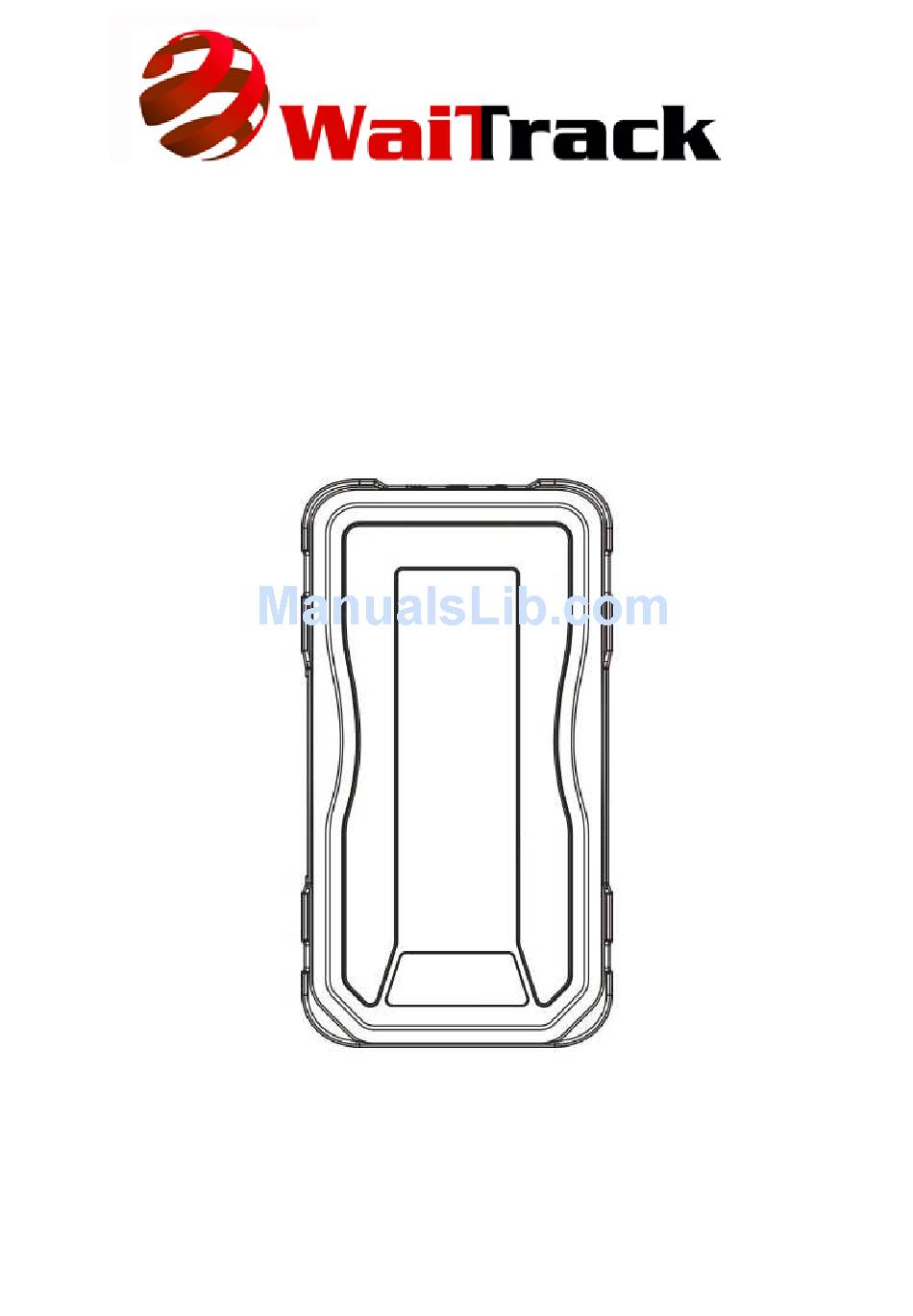

- Page 1 GPS Vehicle tracker (GPS+GSM+SMS/GPRS) User Manual (Version 2.6T)
- Page 2 1. Accessories: Please check the accessories before using. Pictures are for indication and illustration purposes only. 2. Features: ● GSM 850/900/1800/1900 Quad band ● Wide for voltage input range: 9-36vDC ● GPS continuous positioning, GPRS timing interval ● Check location via SMS ●...
-
Page 3: Red Led (Power/Working Status)
battery) ● Compatible with external connection through (serial port) ●Geo-fence via sms command 2.1 Red LED (power/working status) LED Status Meaning Flashing (interval 0.1s) Low battery indication Continuously in bright state Charging Slow flashing(interval 0.2s) Full charge Continuously in dark state Low battery / power off Slow flashing(flash 0.1s after every 2s) Working normally... -
Page 5: Method Of Installation
4. Method of installation 4.1. Preparation before installation 4.1.1 Open the packing box to check whether the type of device is correct and whether the accessories are included, or else please contact your distributor. 4.1.2 Choose SIM card: each device needs to insert a GSM SIM card. Please refer to the distributor’s suggestions to choose the SIM card. - Page 6 NOTE: 4.2.1 To prevent theft of the device, it should be installed as covertly as possible. Covertly installation is suggested. 4.2.2 Avoid placing the device close to higher power electrical devices, such as reversing radar, anti-theft device or other vehicle communication equipment;...
- Page 7 Line No. Specification Color Instruction 1. 2 Keypod Orange/ orange Connect to SOS button 3. 4 MIC-,MIC+ Grey/Brown Connect to Microphone Green Sending data (TX)/backup Blue Receiving data (RX)/backup Purple Ground wire MOTOR Yellow Connect to relay control line Orange Connect to ACC ignition Black Vehicle 12V/24V negative storage battery...
-
Page 8: Cautions Of Device Wiring
4.4 Device wiring diagram 5. Cautions of device wiring 5.1 Power/ACC/Tele-cutoff (petrol/electricity) control line (4 pin) 5.1.1 The standard voltage is 9V-36VDC. Please use the power line which provided by the manufacturer. The red line is the positive. The black line is the... -
Page 9: Parameter Setting
negative. The negative should earth alone or link iron during installing. Do not connect it to other ground wire. 5.1.2 ACC line (orange) is connected to the ACC switch of the vehicle. Please make sure to connect the ACC line. The tracker will decide whether to enter ignition detection according to ACC status. - Page 10 6.2 DNS setting To connect other platform, please send the two SMS commands bleow: Command format： APN,APN's①APN,APN's Name# SERVER,1,DNS,Port,0#②SERVER,1,DNS,Port,0# E.g: APN,internet# SERVER,1,www.gpsluckly.com,88,0# (make sure you don’t type LUKY but LUCKLY) It will reply “OK” after set successfully. 6.3 ON /OFF GPRS When you want to disable GPRS, you can sms command to the sim card number which used in the device.
- Page 11 SOS,D,serial NO.1,serial NO.2,serial NO.3# “D” means to delete the number, for example: SOS,D,1# means to delete the first number SOS,D,3# means to delete the third number If you want to delete more than one numbers, you can send this command: SOS,D,1,3# means to delete the first and third numbers.
- Page 12 Only SOS Phone number can send this command successfully to set the center number. There is only one center number can be set. 6.9 Check parameter settings6.9settings SMS the command to the device to check the device setting. Command format: PARAM# e.g.: PARAM# Reply information:...
-
Page 13: Operation Of Device
The time ranges from 10-18000s For example: TIMER,10# It means the device will upload data to the server every 10s. 6.12 Sensor alarm time setting6.12 When the vehicle power is off and ACC is in low-level, if ACC is off over 10 minutes, the device will enter sensor alarm state. -
Page 14: Check Location
The device will begin to upload positioning data to server once inserting a valid SIM card and power on. During the working time, it can upload data to server every 10 seconds. 7.2 Check location 7.2.1 Via SMS WHERE7.2.1.1 SMS “WHERE #”, to the SIM number of GT06. The terminal will send a location message automatically. - Page 15 Note: The specific numbers should be preset, just refer to 6.4 7.5 Low battery alarm When the device is only working with battery, once the internal voltage of battery is less than 3.7V, device will send low battery alarm sms to specific number and alarm on platform.
- Page 16 tracker can only indicate to cut off oil when GPS is in valid position status, and the speed is less than 20KM/H or in static. It needs password and platform account password is needed when sending oil cut off command. 7.8.2.
- Page 17 where the vehicle has been for up to 30 days in the past making it ideal for fleet management. Trouble9．Trouble shooting 9.1. After installing it in the first time, if device can not get connected with platform server, at this time it is “logged off” status in platform. Please check the installation of device: 1) Check whether the connection of power-line is correct, please do not connect it with the car control line.
- Page 18 Generally, it needs 1-2 minutes to receive the first coordinates. 9.5 If GSM can not receive the signals normally, please check whether SIM card is installed correctly or there is no GSM signal at the location you are, such as basement parking, please drive to a place covered by GSM signal reception.
- Page 19 Warranty card of GPS Vehicle tracker Special statement: Specifications of this product subject to change without further notice. 2. Any change about the appearance and color is subject to the real object. 3. Warranty card applies to the product with the IMEI number listed below.
-
Page 20: Maintenance Records
Maintenance records Record one Maintenance unit Date Fault description Maintenance status IMEI number Serviceman Record two Maintenance unit Date Fault description Maintenance status IMEI number IMEI number...
