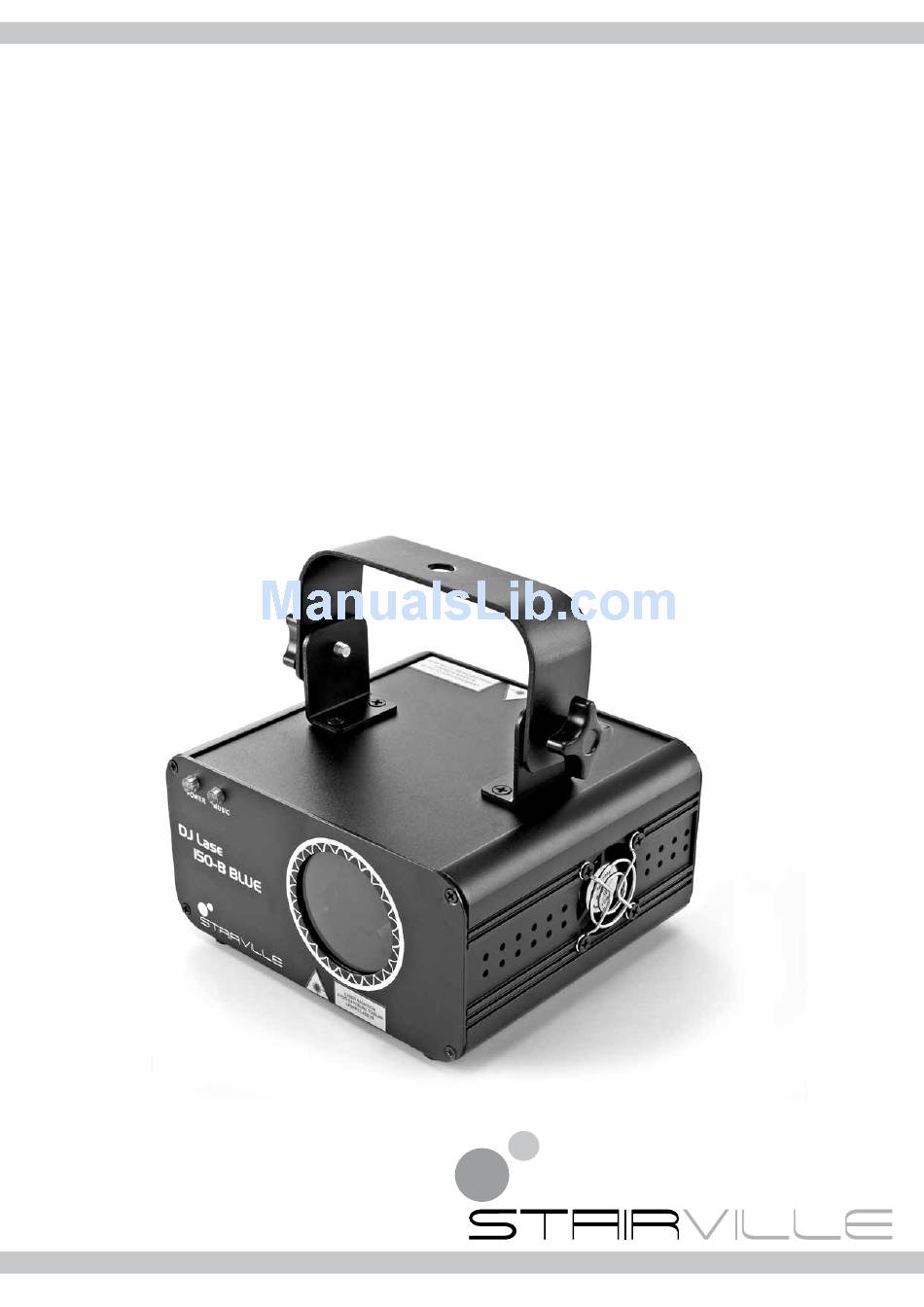

- Page 1 ‘ wner anual DJ l DJ l 40-G MKII / 100-r MKII / 150-B...
-
Page 2: Table Of Contents
The device does not work, no light and the fan does not work ..........13 No response to the DMX controller ..................13 Cleaning ............................13 Technical data ...........................14 Protecting the environment .......................15 Disposal of the packaging material ..................15 Disposal of your old device ...................... 15 DJ Lase 40-G MKII / 100-R MKII / 150-B... -
Page 3: General Notes On Safety
General notes on safety Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in elec- tric shock, fire or serious injury. Save all warnings and instructions for future reference. DANGER Electric shock caused by high voltages inside! Within the unit there are areas where high voltages may be present. -
Page 4: Laser Safety
Keep the laser area free of flammable objects. Intended use This device has been designed for show applications only. Any compensation claims caused by inappropriate or unintended use are always excluded. DJ Lase 40-G MKII / 100-R MKII / 150-B... -
Page 5: Installation
Installation DANGER Laser radiation! During installation follow the instructions specified in section “Laser safety” on page 4. DANGER When using additional components! Additional components can cause dangerous laser beam diffusion when they are not properly connected. Notice Safety switch required! We strongly recommend to install a remote manual safety switch to the device. -
Page 6: Setup
Connect the DMX output of the master device to the DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. DJ Lase 40-G MKII / 100-R MKII / 150-B... -
Page 7: Components And Functions
Components and functions Front side ö POWER MUSIC DJ Lase 100-R MKII LASER RADIATION AVOID EXPOSURE TO BEAM LASER CLASS 3B POWER: Shows that the device is turned on ö MUSIC: Shows that a sound or music signal is being detected Laser aperture www.thomann.de... -
Page 8: Rear Side
UP: Increases the displayed value by one DOWN: Decreases the displayed value by one ENTER: Chooses between the options of the selected mode MIC: Microphone used for the sound mode Display OUTPUT: DMX output DJ Lase 40-G MKII / 100-R MKII / 150-B... -
Page 9: Operation
Operation Start the device Perform the following steps to start the operation: 1. Verify that all required laser safety precautions have been taken. Make sure that there is no one in the reach of the laser beam. 2. Insert the safety key (8) and turn it to the “OFF” position. 3. -
Page 10: Menu Diagram
Menu diagram Auto show mode Music mode Sound sensitivity DMX mode Master/slave mode DJ Lase 40-G MKII / 100-R MKII / 150-B... -
Page 11: Functions In Dmx Mode
Functions in DMX mode Channel Value Function Mode selection 0…63 Laser off 64…127 Auto show; the device operates in stand-alone mode and display a pre-programmed show 128…191 Music mode; the built-in microphone controls a pre-programmed show 192…255 DMX mode; this setting enables the function of the other DMX channels 0…255 Pattern selection (as shown in the pattern list) Zoom... -
Page 12: Pattern List
64…71 128…135 190…197 8…15 72…79 136…143 198…205 16…23 80…87 144…151 206…213 24…31 88…95 152…159 214…221 32…39 96…103 160…167 222…229 40…47 104…111 168…175 230…237 48…55 132…119 176…181 238…245 56…63 140…127 182…189 246…255 DJ Lase 40-G MKII / 100-R MKII / 150-B... -
Page 13: Troubleshooting
Troubleshooting DANGER Laser radiation! During troubleshooting follow the instructions specified in section “Laser safety” on page 4. DANGER Laser radiation inside! Only qualified personnel may carry out service activities when the covers of the device are open. DANGER Laser radiation! Suitable laser protection glasses are required for any activities at the device. -
Page 14: Technical Data
5 mm × 20 mm, 1 A, 250 V, slow characteristic Dimensions (W × D × H) 160 mm × 160 mm × 80 mm (6.3 in. × 6.3 in. × 3.1 in.) Weight 1.8 kg (4.0 lbs) DJ Lase 40-G MKII / 100-R MKII / 150-B... -
Page 15: Protecting The Environment
Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed and are not in the reach of babies and young children. - Page 16 © 2011 • Musikhaus Thomann e. K. • Treppendorf 30 • 96138 Burgebrach • Germany • www.thomann.de...
