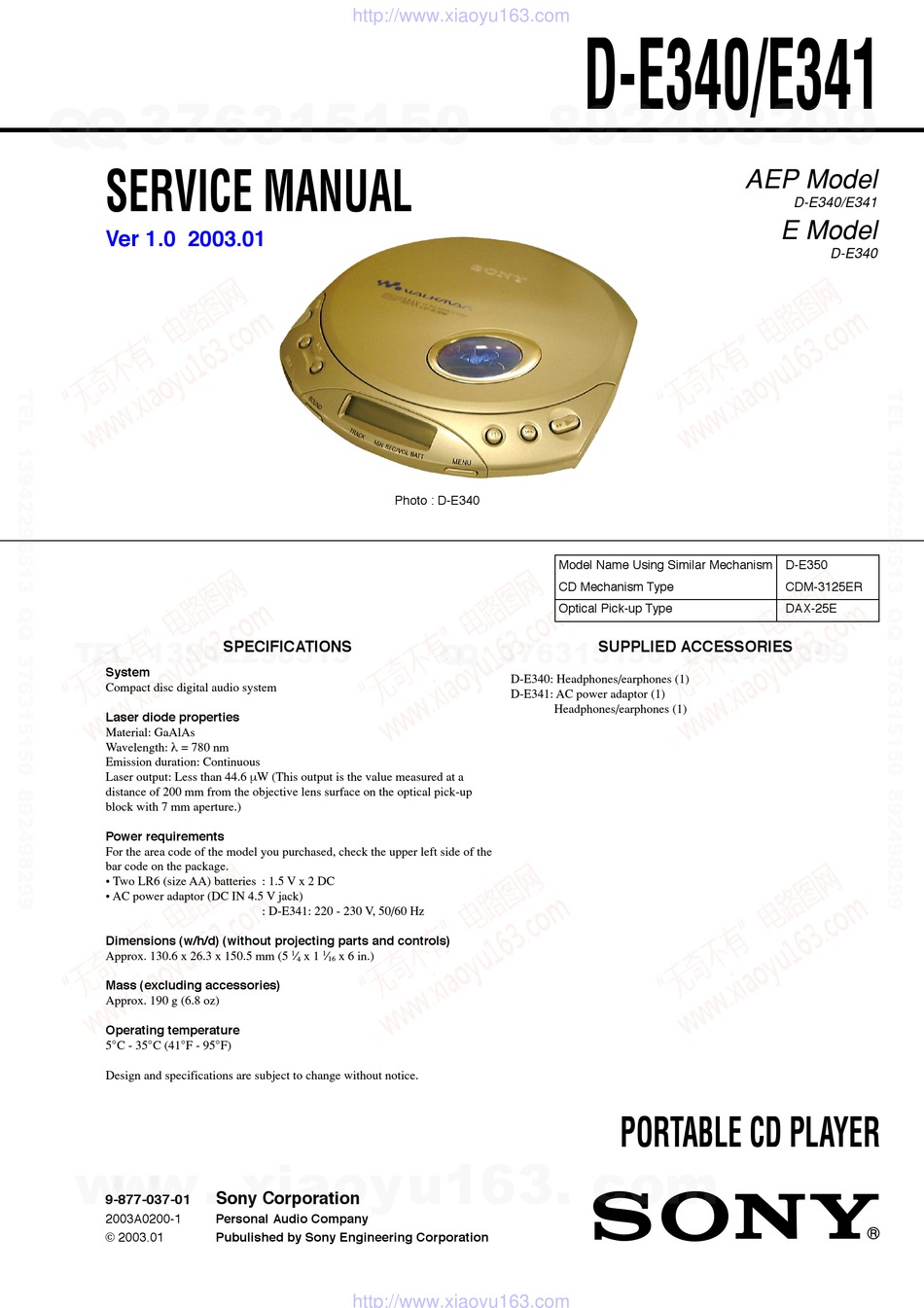

SERVICE MANUAL
Ver 1.0 2003.01
TE
L 13942296513
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wavelength: λ = 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 µW (This output is the value measured at a
distance of 200 mm from the objective lens surface on the optical pick-up
block with 7 mm aperture.)
Power requirements
For the area code of the model you purchased, check the upper left side of the
bar code on the package.
• Two LR6 (size AA) batteries : 1.5 V x 2 DC
• AC power adaptor (DC IN 4.5 V jack)
Dimensions (w/h/d) (without projecting parts and controls)
Approx. 130.6 x 26.3 x 150.5 mm (5
Mass (excluding accessories)
Approx. 190 g (6.8 oz)
Operating temperature
5°C - 35°C (41°F - 95°F)
Design and specifications are subject to change without notice.
www
.
Sony Corporation
9-877-037-01
2003A0200-1
Personal Audio Company
© 2003.01
Pubulished by Sony Engineering Corporation
http://www.xiaoyu163.com
Photo : D-E340

SPECIFICATIONS

: D-E341: 220 - 230 V, 50/60 Hz
1
1
⁄
x 1
⁄
x 6 in.)
16
4
x
ao
y
i
http://www.xiaoyu163.com
8
Model Name Using Similar Mechanism D-E350
CD Mechanism Type
Optical Pick-up Type
Q Q
3
6 7
1 3
D-E340: Headphones/earphones (1)
D-E341: AC power adaptor (1)
Headphones/earphones (1)
u163
.
D-E340/E341
2 9
9 4
2 8
AEP Model
1 5
0 5
8
2 9
9 4
SUPPLIED ACCESSORIES
m
PORTABLE CD PLAYER
co
9 9
D-E340/E341
E Model
D-E340
CDM-3125ER
DAX-25E
2 8
9 9
