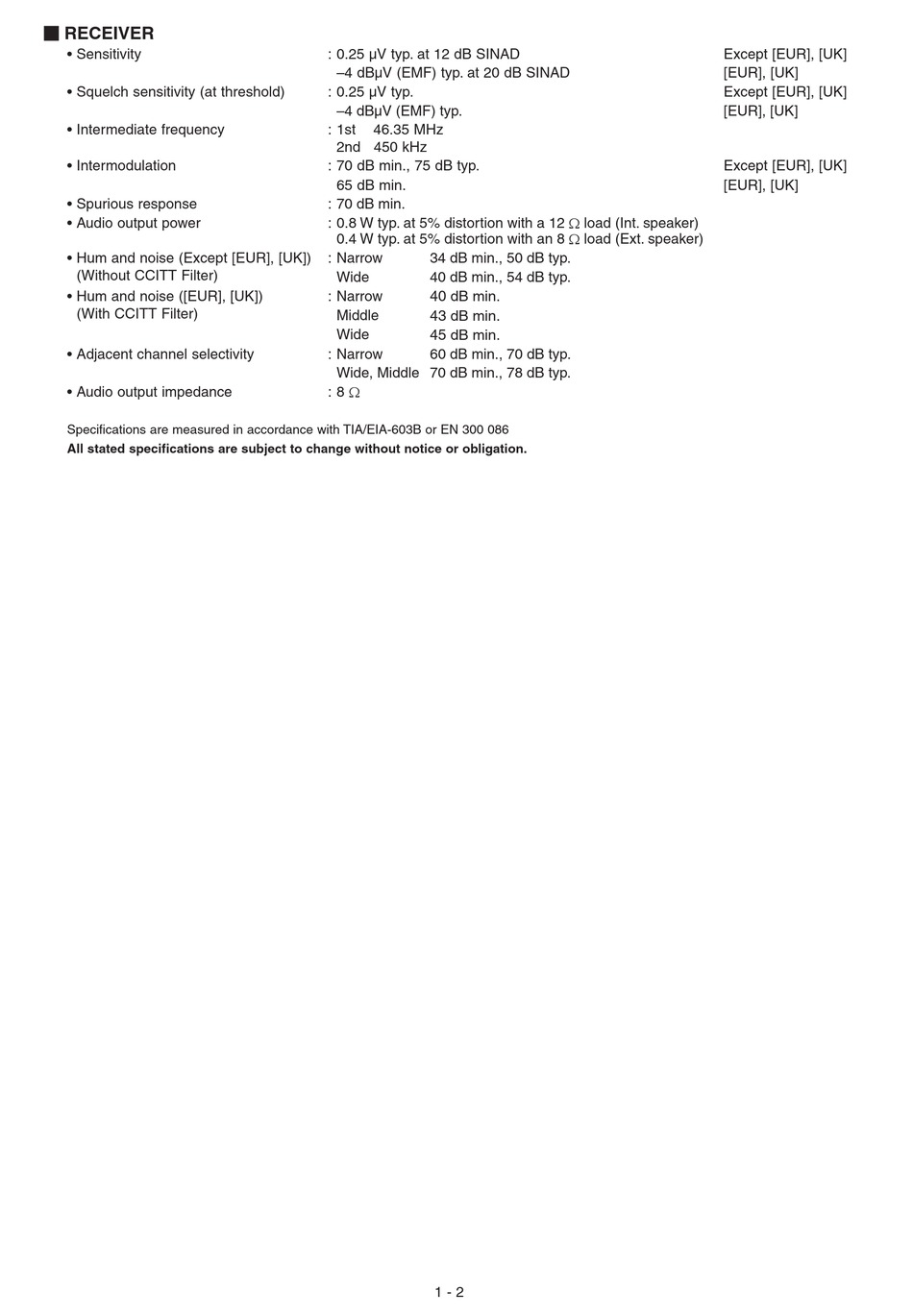

RECEIVER
• Sensitivity
• Squelch sensitivity (at threshold)
• Intermediate frequency
• Intermodulation
• Spurious response
• Audio output power
• Hum and noise (Except [EUR], [UK])
(Without CCITT Filter)
• Hum and noise ( [ EUR], [UK])
(With CCITT Filter)
• Adjacent channel selectivity
• Audio output impedance
Specifications are measured in accordance with TIA/EIA-603B or EN 300 086
All stated specifications are subject to change without notice or obligation.
: 0.25 µV typ. at 12 dB SINAD
–4 dBµV (EMF) typ. at 20 dB SINAD
: 0.25 µV typ.
–4 dBµV (EMF) typ.
: 1st 46.35 MHz
2nd 450 kHz
: 70 dB min., 75 dB typ.
65 dB min.
: 70 dB min.
: 0.8 W typ. at 5% distortion with a 12 Ω load (Int. speaker)
0.4 W typ. at 5% distortion with an 8 Ω load (Ext. speaker)
: Narrow 34 dB min., 50 dB typ.
Wide 40 dB min., 54 dB typ.
: Narrow 40 dB min.
Middle 43 dB min.
Wide 45 dB min.
: Narrow 60 dB min., 70 dB typ.
Wide, Middle 70 dB min., 78 dB typ.
: 8 Ω
1 - 2
Except [EUR], [UK]
[EUR], [UK]
Except [EUR], [UK]
[EUR], [UK]
Except [EUR], [UK]
[EUR], [UK]
