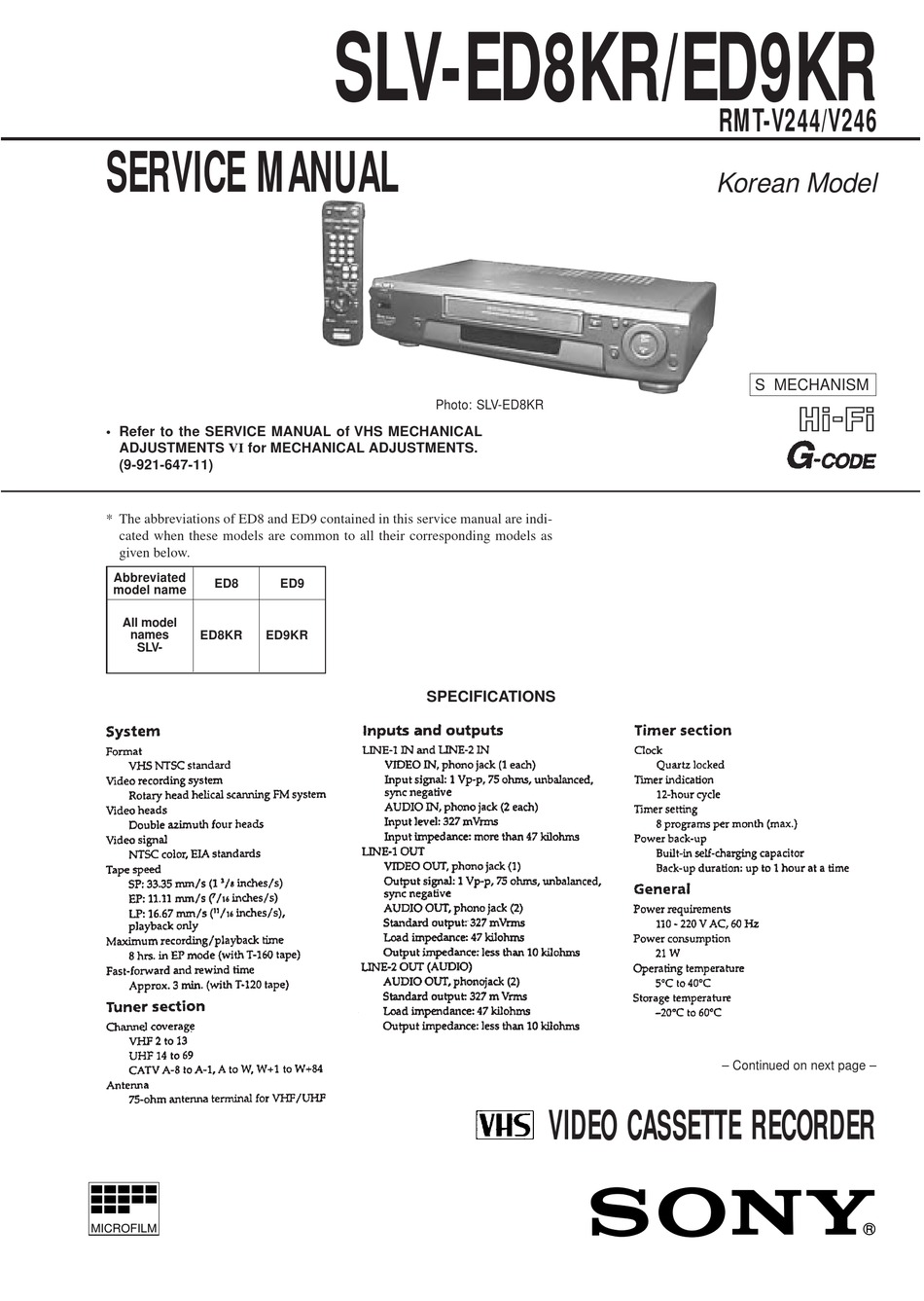

SERVICE MANUAL
• Refer to the SERVICE MANUAL of VHS MECHANICAL
ADJUSTMENTS VI for MECHANICAL ADJUSTMENTS.
(9-921-647-11)
* The abbreviations of ED8 and ED9 contained in this service manual are indi-
cated when these models are common to all their corresponding models as
given below.
Abbreviated
ED8
model name
All model
names
ED8KR
SLV-
MICROFILM
SLV-ED8KR/ED9KR
Photo: SLV-ED8KR
ED9
ED9KR
SPECIFICATIONS
RMT-V244/V246
Korean Model
VIDEO CASSETTE RECORDER
S MECHANISM
G
– Continued on next page –
